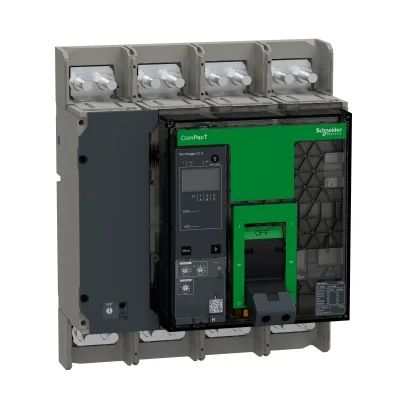

Schneider Electric C160H42AFM NS1600H 70kA 4P 1600A FXD Man. 2.0A
- Brand: Schneider Electric
- SKU: C160H42AFM
- MPN: C160H42AFM
- Price: 323312.26 TRY + VAT · incl. VAT 387974.71 TRY
- Availability: Made to order
- Molded Case Circuit Breakers
- Schneider Electric Molded Case Circuit Breakers
- Selection guide: Molded Case Circuit Breakers (MCCB) Selection Guide
- Schneider Electric C160H42AFM Teknik Veri Föyü (PDF)
Schneider Electric C160H42AFM NS1600H 70kA 4P 1600A FXD Man. 2.0A. Technical specifications of this model: Short-Circuit Breaking Capacity: 70kA Pole arrangement: 4P
| Short-Circuit Breaking Capacity | 70 kA |
|---|---|
| Pole Arrangement | 4P |
| Series | ComPacT yeni nesil |
| Product Type | Circuit Breaker |
| Device Application | Distribution |
| Protected Pole Configuration | 4d |
| Neutral Position | Sol |
| Rated Current (In) | 1600 A @ 50 °C |
| Rated Operational Voltage (Ue) | 690 V AC 50/60 Hz |
| Current Type | AC |
| Mains Frequency | 50/60 Hz |
| Suitable for Isolation | Yes (EN/IEC 60947-2) |
| Utilization Category | Category B |
| Release Type | MicroLogic 2.0 A |
| Trip Unit Technology | Elektronik |
| Protection Functions | LI |
| Control Type | Manuel işletimli |
| Mounting Type | Fixed |
| Rated Insulation Voltage (Ui) | 800 V AC 50/60 Hz (IEC 60947-2) |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV (IEC 60947-2) |
| Rated Short-time Withstand Current Low Voltage (Icw) | 19,2 kA 1 sn (IEC 60947-2) |
| Mechanical Endurance | 10000 cycles |
| Electrical Endurance | 1000 cycles @ 690 V In; 2000 cycles @ 690 V In/2; 2000 cycles @ 440 V In; 5000 cycles @ 440 V In/2 |
| Mounting Support | Backplate |
| Top Connection | Front |
| Bottom Connection | Front |
| Connection Range | 70 mm |
| Trip Unit Rating | 1600 A @ 50 °C |
| Long-Time Pick-up Adjustment Range (Ir) | 0,4…1 x In |
| Long-Time Delay Adjustment Type (tr) | Ayarlanabilir 9 ayar |
| Thermal Memory | 20 mn |
| Instantaneous Pick-up Adjustment Type (Ii) | Adjustable |
| Instantaneous Pick-up Adjustment Range (Ii) | 1,5…10 x Ir |
| Earth Leakage Protection | None |
| Neutral Protection Setting | Korumasız (3d); 0,5 x Ir (3d + N/2); 1 x Ir (4d) |
| Zone Selective Interlocking (ZSI) | None |
| Auxiliary contact configuration | 1 NO/NC |
| Local Signalling | 4 LED (kırmızı) for hata göstergesi; 1 LED (sarı) for aşırı load |
| Display Type | LCD ekran |
| Measurement Type | Ampermetre |
