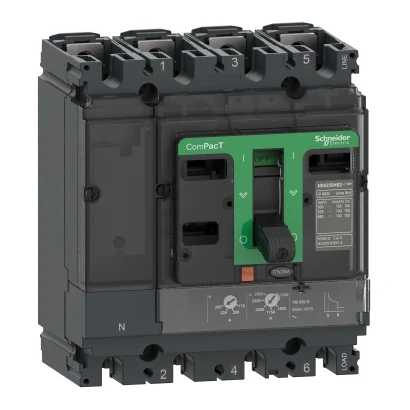

Schneider Electric C25V4TM125 NSX160 HB1 TM 125D 75kA 690V 4P
- Brand: Schneider Electric
- SKU: C25V4TM125
- MPN: C25V4TM125
- Price: 81675.96 TRY + VAT · incl. VAT 98011.15 TRY
- Availability: Made to order
- Molded Case Circuit Breakers
- Schneider Electric Molded Case Circuit Breakers
- Selection guide: Molded Case Circuit Breakers (MCCB) Selection Guide
- Schneider Electric C25V4TM125 Teknik Veri Föyü (PDF)
Schneider Electric C25V4TM125 NSX160 HB1 TM 125D 75kA 690V 4P. Technical specifications of this model: Short-Circuit Breaking Capacity: 75kA Pole arrangement: 4P
| Short-Circuit Breaking Capacity | 75 kA |
|---|---|
| Pole Arrangement | 4P |
| Series | ComPacT yeni nesil |
| Product Type | Circuit Breaker |
| Device Application | Distribution |
| Protected Pole Configuration | 4d |
| Neutral Position | Sol |
| Rated Current (In) | 125 A @ 40 °C |
| Rated Operational Voltage (Ue) | 690 V AC 50/60 Hz |
| Current Type | AC |
| Mains Frequency | 50/60 Hz |
| Suitable for Isolation | Yes (EN/IEC 60947-2) |
| Utilization Category | Category A |
| Release Type | TM-D |
| Trip Unit Technology | Termik Manyetik |
| Protection Functions | LI |
| Control Type | Feed-through |
| Mounting Type | Fixed |
| Rated Insulation Voltage (Ui) | 800 V AC 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 85 kA @ 500 V AC 50/60 Hz (IEC 60947-2); 80 kA @ 525 V AC 50/60 Hz (IEC 60947-2); 75 kA @ 660/690 V AC 50/60 Hz (IEC 60947-2) |
| Mechanical Endurance | 20000 cycles |
| Electrical Endurance | 20000 cycles @ 440 V In/2; 10000 cycles @ 440 V In; 10000 cycles @ 690 V In/2; 5000 cycles @ 690 V In |
| Power Loss per Pole | 9.45 W |
| Mounting Support | Backplate |
| Mounting Position | Yatay ve dikey; Sırtında düz |
| Top Connection | Front |
| Bottom Connection | Front |
| Connection Range | 35 mm |
| Trip Unit Rating | 125 A @ 40 °C |
| Long-Time Pick-up Adjustment Range (Ir) | 0,7…1 x In |
| Long-Time Delay Adjustment Type (tr) | Fixed |
| Neutral Protection Setting | 1 x Ir (4d) |
| Instantaneous Pick-up Adjustment Type (Ii) | Fixed |
| Instantaneous Pick-up Adjustment Range (Ii) | 1.25 A |
| Earth Leakage Protection | None |
| Width | 140 mm |
| Height | 161 mm |
| Depth | 86 mm |
| Product Weight | 2.8 kg |
