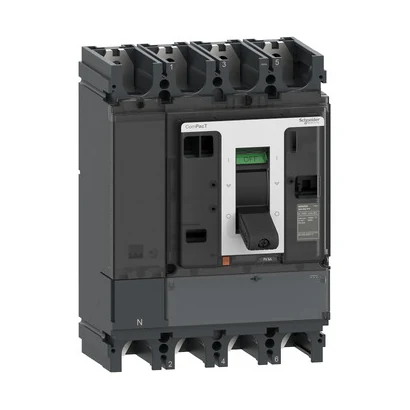

Schneider Electric C404400D1S NSX 400 DC PV 400A
- Brand: Schneider Electric
- SKU: C404400D1S
- GTIN: 3606482003668
- MPN: C404400D1S
- Price: 99857.06 TRY + VAT · incl. VAT 119828.47 TRY
- Availability: Made to order
- Molded Case Circuit Breakers
- Schneider Electric Molded Case Circuit Breakers
- Selection guide: Molded Case Circuit Breakers (MCCB) Selection Guide
- Schneider Electric C404400D1S Teknik Veri Föyü (PDF)
Schneider Electric C404400D1S NSX 400 DC PV 400A. Technical specifications of this model: Rated Current: 400A
| Rated Current | 400 A |
|---|---|
| Series | ComPacT yeni nesil |
| Product Type | load Ayırıcı |
| Device Application | Fotovoltaik |
| Pole Arrangement | 4P |
| Conventional Free Air Thermal Current (Ith) | 320 A (65 °C’de); DC-22A: 320 A DC 1.000 V |
| Rated Operational Voltage (Ue) | 1.000 V DC |
| Current Type | DC |
| Suitable for Isolation | Yes (EN/IEC 60947-3) |
| Utilization Category | DC-22A |
| Breaking Capacity | NA |
| Contact Position Indication | Ja |
| Apparent Breaking | No |
| Mounting Method | Fixed |
| Rated Short-Time Withstand Current (Icw) | 6 kA, 1 s boyunca |
| Rated Short-Circuit Making Capacity (Icm) | 6 kA (yalnız load ayırıcı) |
| Control Type | Kollu (toggle) anahtar |
| Rated Insulation Voltage (Ui) | 1000 V DC |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Mounting Support | Arka panel |
| Top Connection | Ön taraf |
| Bottom Connection | Ön taraf |
| Connection Range | 45 mm |
| Mechanical Endurance | 5000 cycles |
| Width | 185 mm |
| Height | 255 mm |
| Depth | 110 mm |
| Product Weight | 8.1 kg |
| IK Impact Protection | IK07 (IEC 62262) |
| Electric Shock Protection Class | Class II |
| Pollution Degree | 3 (IEC 60664-1) |
| Operating Ambient Temperature | -25…70 °C |
| Storage Temperature | -50…85 °C |
