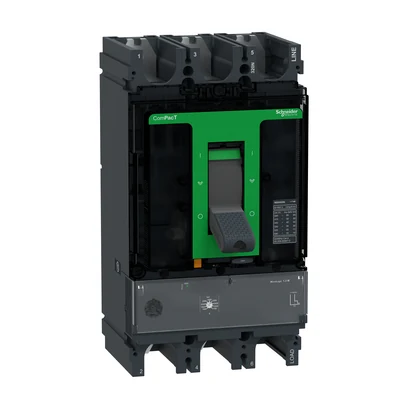

Schneider Electric C40N31M320 NSX400N MA320 50kA
- Brand: Schneider Electric
- SKU: C40N31M320
- MPN: C40N31M320
- Price: 70500.42 TRY + VAT · incl. VAT 84600.50 TRY
- Availability: Made to order
- Molded Case Circuit Breakers
- Schneider Electric Molded Case Circuit Breakers
- Selection guide: Molded Case Circuit Breakers (MCCB) Selection Guide
- Schneider Electric C40N31M320 Teknik Veri Föyü (PDF)
Schneider Electric C40N31M320 NSX400N MA320 50kA. Technical specifications of this model: Short-Circuit Breaking Capacity: 50kA
| Short-Circuit Breaking Capacity | 50 kA |
|---|---|
| Series | ComPacT yeni nesil |
| Product Type | Circuit Breaker |
| Device Application | Motor koruması |
| Pole Arrangement | 3P |
| Protected Pole Configuration | 3d |
| Rated Current (In) | 320 A @ 65 °C |
| Rated Operational Voltage (Ue) | 690 V AC 50/60 Hz |
| Current Type | AC |
| Mains Frequency | 50/60 Hz |
| Suitable for Isolation | Yes (EN/IEC 60947-2) |
| Utilization Category | Category A |
| Release Type | Micrologic 1.3 M |
| Trip Unit Technology | Elektronik |
| Protection Functions | SI |
| Control Type | Feed-through |
| Mounting Type | Fixed |
| Rated Insulation Voltage (Ui) | 800 V AC 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Mechanical Endurance | 15000 cycles |
| Electrical Endurance | 12000 cycles @ 440 V In/2; 6000 cycles @ 440 V In; 6000 cycles @ 690 V In/2; 3000 cycles @ 690 V In |
| Power Loss per Pole | 12.29 W |
| Mounting Support | Backplate |
| Mounting Position | Yatay ve dikey; Sırtında düz |
| Top Connection | Front |
| Bottom Connection | Front |
| Connection Range | 45 mm |
| Trip Unit Rating | 320 A @ 65 °C |
| Instantaneous Pick-up Adjustment Type (Ii) | Fixed |
| Instantaneous Pick-up Adjustment Range (Ii) | 4800 A |
| Earth Leakage Protection | None |
| Zone Selective Interlocking (ZSI) | None |
| Width | 140 mm |
| Height | 255 mm |
| Depth | 110 mm |
| Product Weight | 6.05 kg |
| Standards | EN/IEC 60947-2 |
| Overvoltage category | III |
| Electric Shock Protection Class | Sınıf II üzerinde ön yüz |
| Pollution Degree | 3 (IEC 60664-1) |
