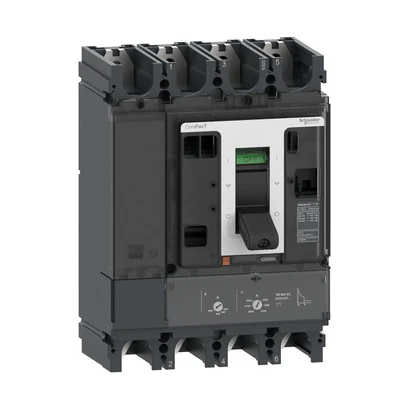

Schneider Electric C40S4TM250D NSX250S TM-DC 4P
- Brand: Schneider Electric
- SKU: C40S4TM250D
- MPN: C40S4TM250D
- Price: 145949.21 TRY + VAT · incl. VAT 175139.05 TRY
- Availability: Made to order
- Molded Case Circuit Breakers
- Schneider Electric Molded Case Circuit Breakers
- Selection guide: Molded Case Circuit Breakers (MCCB) Selection Guide
- Schneider Electric C40S4TM250D Teknik Veri Föyü (PDF)
Schneider Electric C40S4TM250D NSX250S TM-DC 4P. Technical specifications of this model: Pole arrangement: 4P
| Pole Arrangement | 4P |
|---|---|
| Series | ComPacT yeni nesil |
| Product Type | Circuit Breaker |
| Device Application | Distribution |
| Protected Pole Configuration | 4d |
| Rated Current (In) | 250 A @ 40 °C |
| Rated Operational Voltage (Ue) | 750 V DC |
| Current Type | DC |
| Suitable for Isolation | Yes (EN/IEC 60947-2) |
| Utilization Category | Category A |
| Release Type | TM-DC |
| Trip Unit Technology | Termik Manyetik |
| Protection Functions | LI |
| Control Type | Feed-through |
| Mounting Type | Fixed |
| Rated Insulation Voltage (Ui) | 750 V DC (IEC 60947-2) |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV (IEC 60947-2) |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 100 kA @ 24…125 V DC (IEC 60947-2); 100 kA @ 250 V DC (IEC 60947-2); 100 kA @ 500 V DC (IEC 60947-2); 100 kA @ 750 V DC (IEC 60947-2) |
| Mechanical Endurance | 5000 cycles |
| Electrical Endurance | 2000 cycles @ 750 V In/2; 1000 cycles @ 750 V In |
| Mounting Support | Backplate |
| Mounting Position | Yatay ve dikey; Sırtında düz |
| Top Connection | Front |
| Bottom Connection | Front |
| Connection Range | 45 mm |
| Trip Unit Rating | 250 A @ 40 °C |
| Long-Time Pick-up Adjustment Range (Ir) | 0,7…1 x In |
| Instantaneous Pick-up Adjustment Type (Ii) | Adjustable |
| Instantaneous Pick-up Adjustment Range (Ii) | 2.5…5 x In |
| Earth Leakage Protection | None |
| Width | 185 mm |
| Height | 255 mm |
| Depth | 110 mm |
| Product Weight | 8.4 kg |
| Standards | EN/IEC 60947-2 |
| Pollution Degree | 3 (IEC 60664-1) |
| IP Rating | IP40 |
| IK Impact Protection | IK07 (IEC 62262) |
| Operating Ambient Temperature | -25…70 °C |
| Storage Temperature | -50…85 °C |
