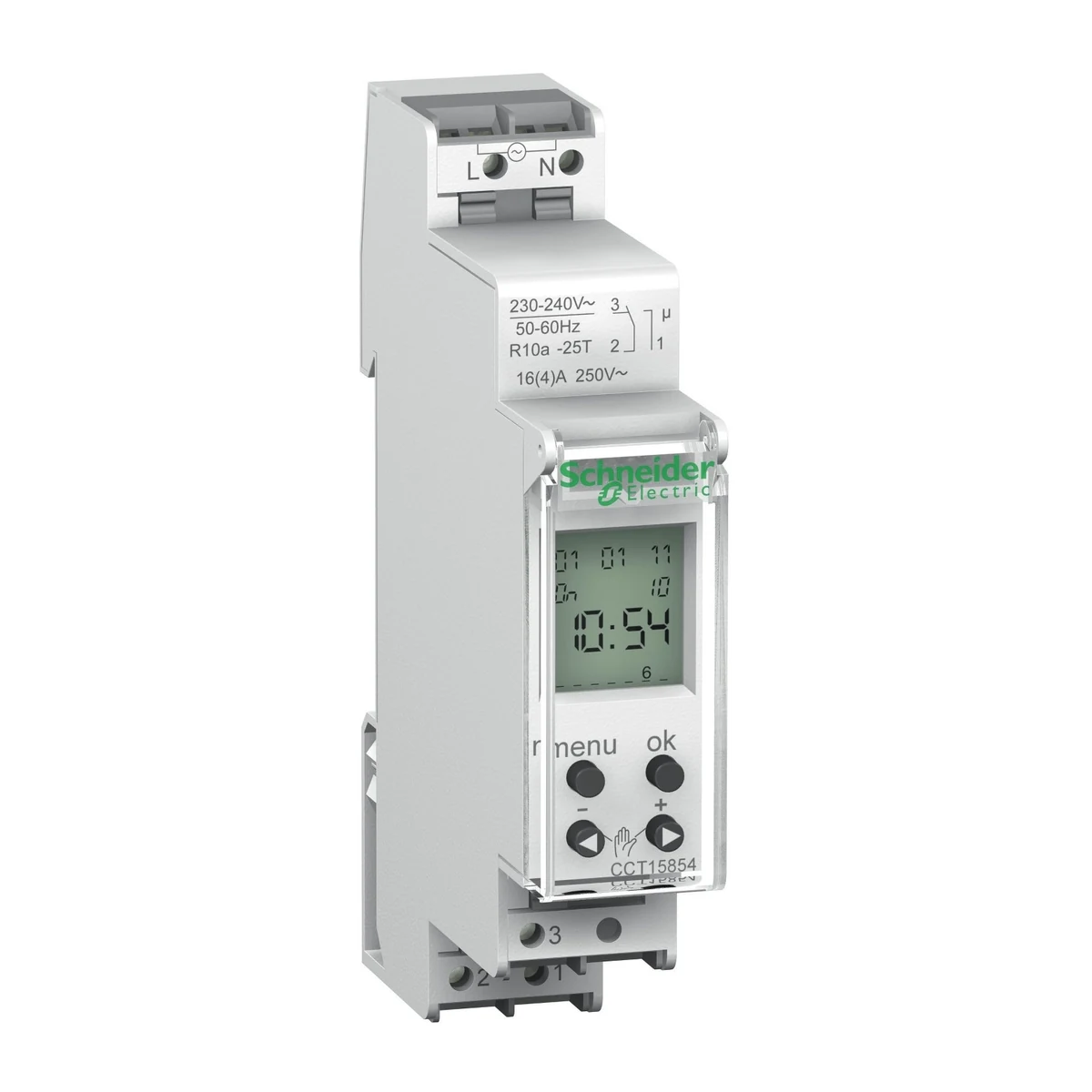

Schneider Electric CCT15854 IHP digital time switches 7 day/24 h, 1 contact, 18mm, 3 years of reserve

• Brand: Schneider Electric
• SKU: CCT15854
• MPN: CCT15854
• Price: 8395.56 TRY + VAT · incl. VAT 10074.67 TRY
• Availability: Made to order
• Programmable Timer Relays
• Selection guide: Programmable Timer Relays Selection Guide: Technical Criteria & Application Standards

Schneider Electric CCT15854 IHP digital time switches 7 day/24 h, 1 contact, 18mm, 3 years of reserve. Technical specifications of this model: Connection Terminals: 2 X 0.5…2.5 mm² screwless terminals Width: 18 mm Product Family: Acti9 Accuracy: +/- 0.5 S/DAY 25 °C Clock Change: AUTOMATIC Mounting Support: DIN rail Battery Life: 10 YEAR(S) 9 mm Number of Module Pitches: 2 Series: ACTI9 Operating Ambient Temperature: -25…55 °C Product Weight: 0.09 kg Manufacturer Product Name: ACTI9 IHP Maximum Number of Switching Operations: 56 IP Rating: IP20 B Application Area: RESIDENTIALSMALL COMMERCIAL Adjustment Type: PIN code; Absence function for holidays Rated Operational Voltage: 230 V AC - 15...10 % AT 50/60 Hz Available Hardware: PROGRAMMING KITMEMORY KEY Battery Type: LITHIUM Available functions: Operating hours counter; Automatic winter/summer time changeover Depth: 66 mm Cycle Time: 24 HOURS + 7 DAYS Holiday Program: Yes Maximum Switching Current: 16 A - 250 V AC PF = 14 A - 250 V AC PF = 0.6 Display Type: LCD Compatibility Code: IHP Product Type: Programmable digital time switch Short Device Name: IHP Device Application: BUILDING Minimum Interval Time: 1 MIN Channel Count: 1 Backup Time: clock and program retention for 10 years User languages: PORTUGUESEENGLISHFRENCHITALIANGERMANSPANISH Height: 90 mm Color Tone: White (RAL 9003)
