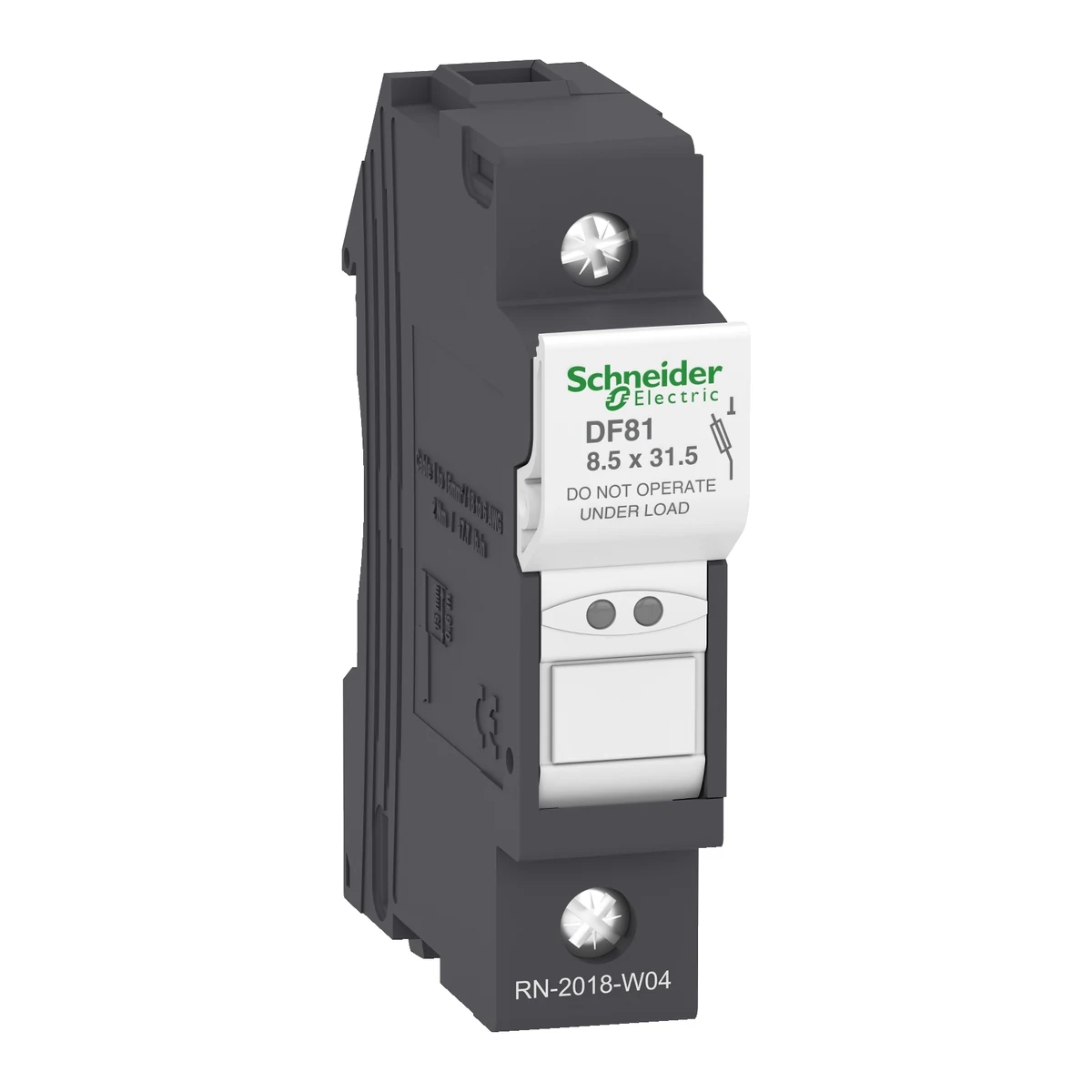

Schneider Electric DF81 TeSys DF Fuse Holder 1P 25A
- Brand: Schneider Electric
- SKU: DF81
- MPN: DF81
- Price: 525.42 TRY + VAT · incl. VAT 630.50 TRY
- Availability: In stock
- Fuse Holders
- Selection guide: Fuse Holders Selection Guide: Technical Criteria & Application Standards
- Schneider Electric DF81 Teknik Veri Föyü (PDF)
Schneider Electric DF81 TeSys DF Fuse Holder 1P 25A.
| Series | TeSys |
|---|---|
| Product Type | Sigorta taşıyıcı |
| Compatible Products | DF2BA fuse cartridge; DF2BN fuse cartridge |
| Pole Arrangement | 1P |
| Fuse Size | 8,5 x 31,5 mm |
| Fuse Type | 0…25 A, GG; 0…25 A, AM |
| Control Type | Geçiş kilitlenebilir |
| Utilization Category | AC-20B (IEC 60947-3) |
| Rated Operational Voltage (Ue) | 400 V AC |
| Rated Operational Current (Ie) | 25 A @ 400 V AC |
| Conventional Free Air Thermal Current (Ith) | 25 A @ <20 °C |
| Rated Insulation Voltage (Ui) | 500 V AC |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Overvoltage category | III |
| Short-Circuit Withstand Strength | 20 kA 400 V (IEC 60947-3) |
| Power Loss (W) | 2,50 W maximum power dissipation by fuse |
| Standards | EN/IEC 60947-3; EN/IEC 60269-2 |
| Certifications | IEC; EAC; DNV-GL |
| Mounting Support | 35 mm simetrik DIN rayı |
| Mounting Position | Dikey (tolerans: +/- 23°) |
| Tightening Torque | 2,2 N.m - tornavidayla PZ2; 2,2 N.m - tornavidayla düz Ø 5,5 mm |
| Height | 79.5 mm |
| Width | 17.5 mm |
| Depth | 61 mm |
| Product Weight | 0.042 kg |
| Storage Temperature | -40…70 °C |
| Operating Altitude | 0…2000 m değer kaybı olmadan |
| IP Rating | IP20 |
| Pollution Degree | 3 |
| Fire Resistance | 960 °C (IEC 60695-2-1) |
