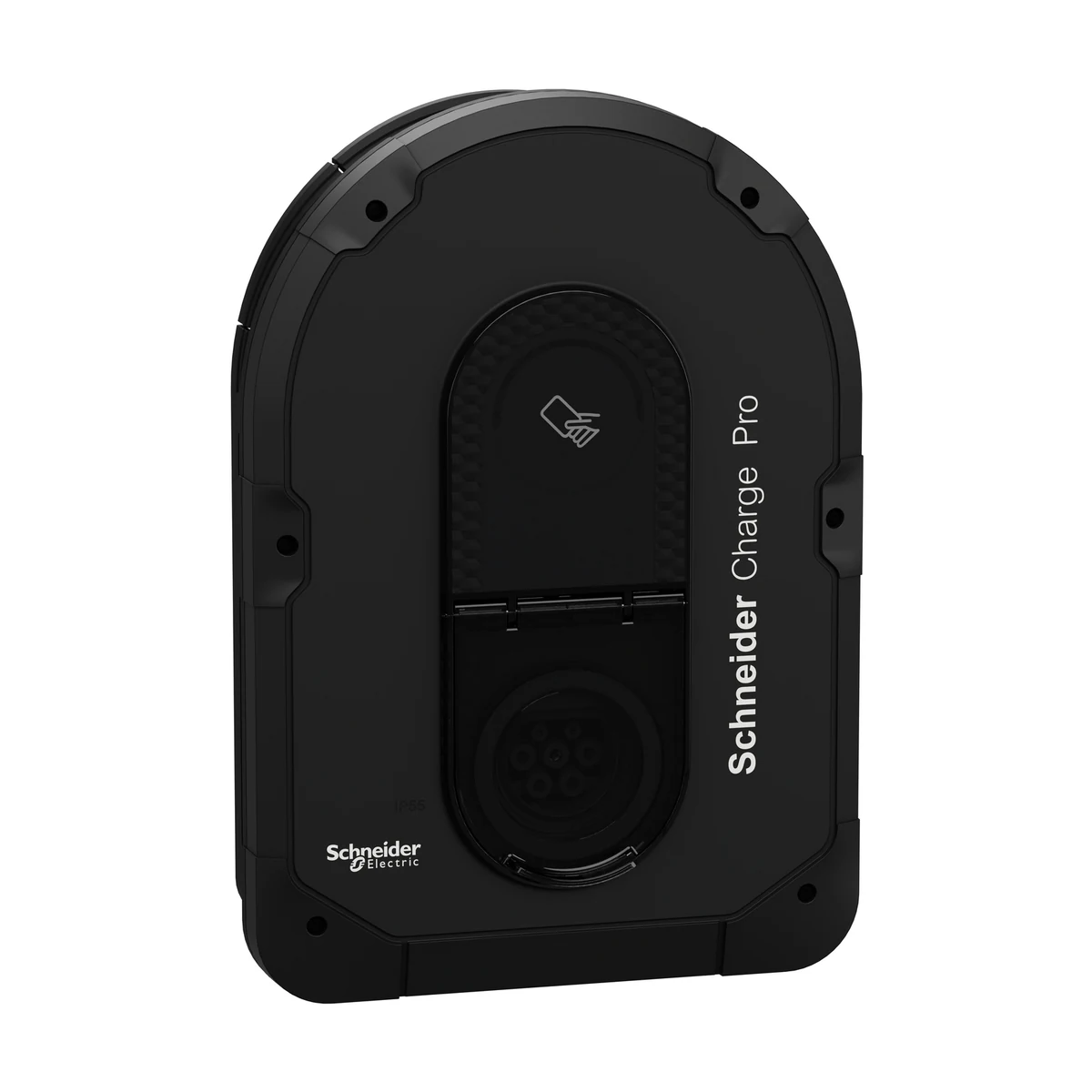

Schneider Electric EVB4S22N40G Charge Pro 22kW T2S TIC 4G
- Brand: Schneider Electric
- SKU: EVB4S22N40G
- MPN: EVB4S22N40G
- Price: 126100.12 TRY + VAT · incl. VAT 151320.14 TRY
- Availability: Made to order
- Electric Vehicle Charging Stations
- Selection guide: Electric Vehicle Charging Stations Selection Guide: Technical Criteria & Application Standards
- Schneider Electric EVB4S22N40G Teknik Veri Föyü (PDF)
Schneider Electric EVB4S22N40G Charge Pro 22kW T2S TIC 4G. Technical specifications of this model: Series: Charge Pro
| Series | Charge Pro |
|---|---|
| Product Type | Şarj istasyonu |
| Mounting Type | Duvara monte; Pedestal mount |
| Mounting Support | Kaideli, ayrı olarak sipariş edilecektir |
| Rated Output Power | 7,4 kW 32 A 230 V; 11 kW 16 A 400 V; 22 kW 32 A 400 V |
| Number of sockets | 1 |
| Output Type | Ön yüz Deklanşörlü T2 socket-outlet |
| Rated Control Supply Voltage (Us) | 220…240 V AC 50/60 Hz +/- 10 %; 380…415 V AC 50/60 Hz +/- 10 % |
| Number of Inputs | 1 |
| Control Type | 1 beyaz açma/kapama butonu |
| Local Signalling | On charge: LED (mavi); Hata: LED (kırmızı); Available: LED (yeşil); Start: LED (beyaz); Reserved: LED (turuncu) |
| Height | 418 mm |
| Width | 292 mm |
| Depth | 136 mm |
| Product Weight | 3.9 kg |
| Color | Black (RAL 9005) |
| Certifications | CE; UKCA; EV Ready 2.0A |
| Maximum Supply Current | 32 A |
| Communication Network Type | Wi-Fi; Ethernet TCP/IP'si; 4G |
| Communication Services | JSON smart charging |
| IP Rating | IP55 |
| IK Impact Protection | IK10 |
| Operating Ambient Temperature | -30…50 °C |
| Storage Temperature | -30…50 °C |
| Relative Humidity | 5…95 % |
| Operating Altitude | 0–2000 m |
