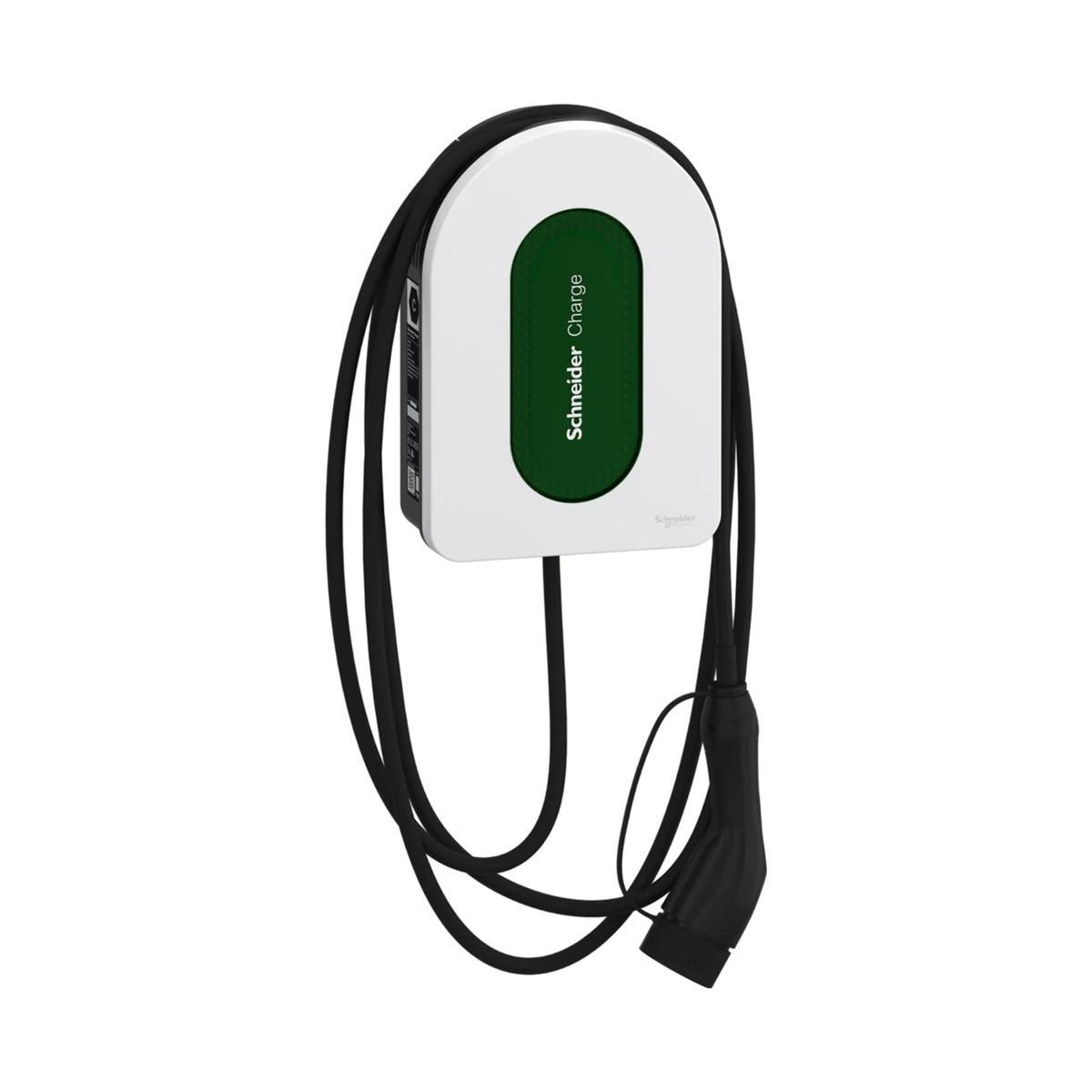

Schneider Electric EVH5A07N2C5 Charge 7.4 kW 1P+N with 5 m Cable
- Brand: Schneider Electric
- SKU: EVH5A07N2C5
- MPN: EVH5A07N2C5
- Price: 103915.84 TRY + VAT · incl. VAT 124699.01 TRY
- Availability: Made to order
- Electric Vehicle Charging Stations
- Selection guide: Electric Vehicle Charging Stations Selection Guide: Technical Criteria & Application Standards
Schneider Electric EVH5A07N2C5 Charge 7.4 kW 1P+N with 5 m Cable. Technical specifications of this model: Manufacturer Standard Declaration: EN 61851IEC 61851-1IEC 62955 Protection type: Earth leakage protection Local Indicator: Red, green and blue 1 LED, function: status indicator Rated Output Power: 7.4 kW 32 A Depth: 117 mm Product Type: CHARGING STATION Operating Ambient Temperature: -30…50 °C Series: Schneider Charge Number of Charging Points: 1 IP Rating: IP55 CONFORMING TO EN/IEC 60529 Color: White/green Input Type: Dry contact for dynamic energy management Width: 244 mm Output Type: Attached cable T2 bottom 5 m Storage Temperature: -40…85 °C Mounting Style: Wall-mounted Communication Network Type: WI-FIWIRELESSETHERNET Pole arrangement: 1P + N Relative Humidity: 5…95 % Communication Port Protocol: OCPP 1.6, for connection to the Schneider Electric Wiser app Number of Inputs: 1 Height: 352 mm Product Family: Schneider Charge Manufacturer Product Name: SCHNEIDER CHARGE Operating Altitude: 0...2000 M IK Protection Class: IK10 Rated Supply Voltage: 230...240 V AC 50...60 Hz +/- 10 % Earthing System: IT 230TTTN-S Product Weight: 4.5 kg
| Rated Supply Voltage | 230...240 V AC 50...60 Hz +/- 10 % |
|---|---|
| Rated Output Power | 7.4 kW 32 A |
| Relative Humidity | 5…95 % |
| Operating Ambient Temperature | -30…50 °C |
| Operating Altitude | 0–2000 m |
| Output Type | Bağlı kablo T2 alt 5 m |
| Storage Temperature | -40…85 °C |
| Depth | 117 mm |
| Width | 244 mm |
| Number of Inputs | 1 |
| Input Type | Dinamik enerji yönetimi için kuru kontak |
| Communication Network Type | WI-FIWIRELESSETHERNET |
| Communication Port Protocol | OCPP 1.6, Schneider Electric Wiser uygulamasına bağlantı için |
| IK Protection Class | IK10 |
| IP Rating | IP55 CONFORMING TO EN/IEC 60529 |
| Protection Type | Toprak kaçağı koruması |
| Pole Arrangement | 1P+N |
| Mounting Style | Duvara monte |
| Color | White/yeşil |
| Number of Charging Points | 1 |
| Series | Schneider Charge |
| Earthing System | IT 230TTTN-S |
| Manufacturer Standard Declaration | EN 61851IEC 61851-1IEC 62955 |
| Manufacturer Product Name | SCHNEIDER CHARGE |
| Product Weight | 4.5 kg |
| Product Family | Schneider Charge |
| Product Type | CHARGING STATION |
| Local Indicator | Kırmızı, yeşil ve mavi 1 LED, işlev: durum göstergesi |
| Height | 352 mm |
