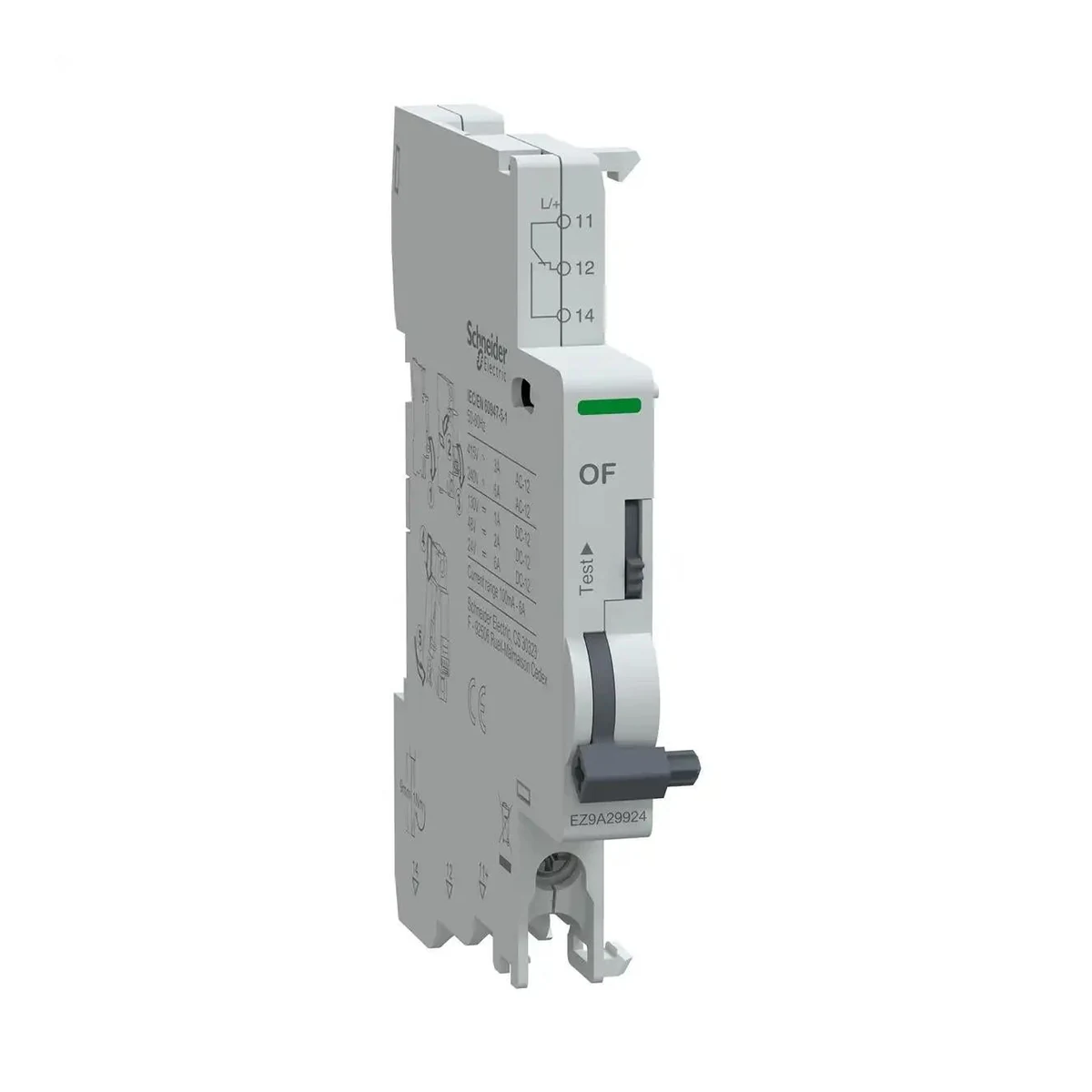

Schneider Electric EZ9A29924 Pro Auxiliary Contact NO/NC. OF, 1AK, AC/DC
- Brand: Schneider Electric
- SKU: EZ9A29924
- MPN: EZ9A29924
- Price: 455.92 TRY + VAT · incl. VAT 547.10 TRY
- Availability: In stock
- Auxiliary Contacts
- Schneider Electric Auxiliary Contacts
- Selection guide: Switchgear Auxiliary and Trip Alarm Contacts Selection Guide
Schneider Electric EZ9A29924 Pro Auxiliary Contact NO/NC. OF, 1AK, AC/DC. Technical specifications of this model: Cable Stripping Length: 9 mm Mounting Support: DIN rail Product certificates: CE Product Weight: 36.9 g Short Device Name: OF Height: 85 mm Toxic Heavy Metal-Free Declaration: ✓ Product group: OF Rated Impulse Withstand Voltage (Uimp): 4 KV 9 mm Number of Module Pitches: 1 Product Type: NO/NC contact Depth: 74 mm Manufacturer Standard Declaration: IEC/EN 60947-5-1 Rated Insulation Voltage (Ui): 500 V Comb Busbar and Distribution Block Compatibility: Top: Yes Mounting Style: CLIP-ON Tightening Torque: 1 N.M BOTTOM Width: 9 mm Signal Contact Arrangement: 1 C/O IP Rating: IP20 Connection Terminals: Screw clamp terminal (bottom): 1 cable 2.5 mm² - Rigid; Screw clamp terminal (bottom): 2 cable 1.5 mm² - Rigid Operating Ambient Temperature: -25…70 °C Series: Easy9 Pro Manufacturer Certificate Declaration: CE Pollution Degree: 3 Tropical Environment Protection: 2 Signal Contacts Arrangement: 1 NC/NO Product Family: Easy9 XM devices Mounting Location: Left side of the circuit breaker Rated Current: 0.1-6 A at 24...240 V, AC 50/60 Hz,0.1-6 A at 24...250 V, AC 50/60 Hz,0.1-6 A at 24 V, DC,0.1-2 A at 48 V, DC,0.1-1.5 A at 60 V, DC,0.1-1 A at 110 V, DC,0.1-1 A at 130 V, DC,0.1-3 A at 277 V, AC 50/60 Hz,0.1-3 A at 415 V, AC 50/60 Hz Storage Temperature: -40…85 °C 9 mm screw pitch: 1 Series Compatibility: EASY9 PRO miniature circuit breaker Color: Gray
| 9 mm Module Pitch Count | 1 |
|---|---|
| 9 mm Screw Pitch | 1 |
| Rated Current | 0.1-6 A at 24...240 V, AC 50/60 Hz,0.1-6 A at 24...250 V, AC 50/60 Hz,0.1-6 A at 24 V, DC,0.1-2 A at 48 V, DC,0.1-1.5 A at 60 V, DC,0.1-1 A at 110 V, DC,0.1-1 A at 130 V, DC,0.1-3 A at 277 V, AC 50/60 Hz,0.1-3 A at 415 V, AC 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Insulation Voltage (Ui) | 500 V |
| Connection Terminals | Vidalı kelepçe terminal (alt): 1 kablo 2.5 mm² - Rijit; Vidalı kelepçe terminal (alt): 2 kablo 1.5 mm² - Rijit |
| Operating Ambient Temperature | -25…70 °C |
| Storage Temperature | -40…85 °C |
| Depth | 74 mm |
| Width | 9 mm |
| IP Rating | IP20 |
| Cable Stripping Length | 9 mm |
| Pollution Degree | 3 |
| Short Device Name | OF |
| Mounting Style | CLIP-ON |
| Mounting Support | DIN rail |
| Mounting location | Devre kesicinin sol tarafı |
| Color | Grey |
| Series | Easy9 Pro |
| Series Compatibility | EASY9 PRO minyatür devre kesici |
| Tightening Torque | 1 N.M BOTTOM |
| Signal Contact Arrangement | 1 C/O |
| Signal Contacts Arrangement | 1 K/A |
| Comb Busbar and Distribution Block Compatibility | Üst: Evet |
| Toxic Heavy Metal-Free Declaration | ✓ |
| Tropical Environment Protection | 2 |
| Manufacturer Certificate Declaration | CE |
| Manufacturer Standard Declaration | IEC/EN 60947-5-1 |
| Product Weight | 36.9 g |
| Product Family | Easy9 XM devices |
| Product Group | OF |
| Product Certificates | CE |
| Product Type | AK kontağı |
| Height | 85 mm |
