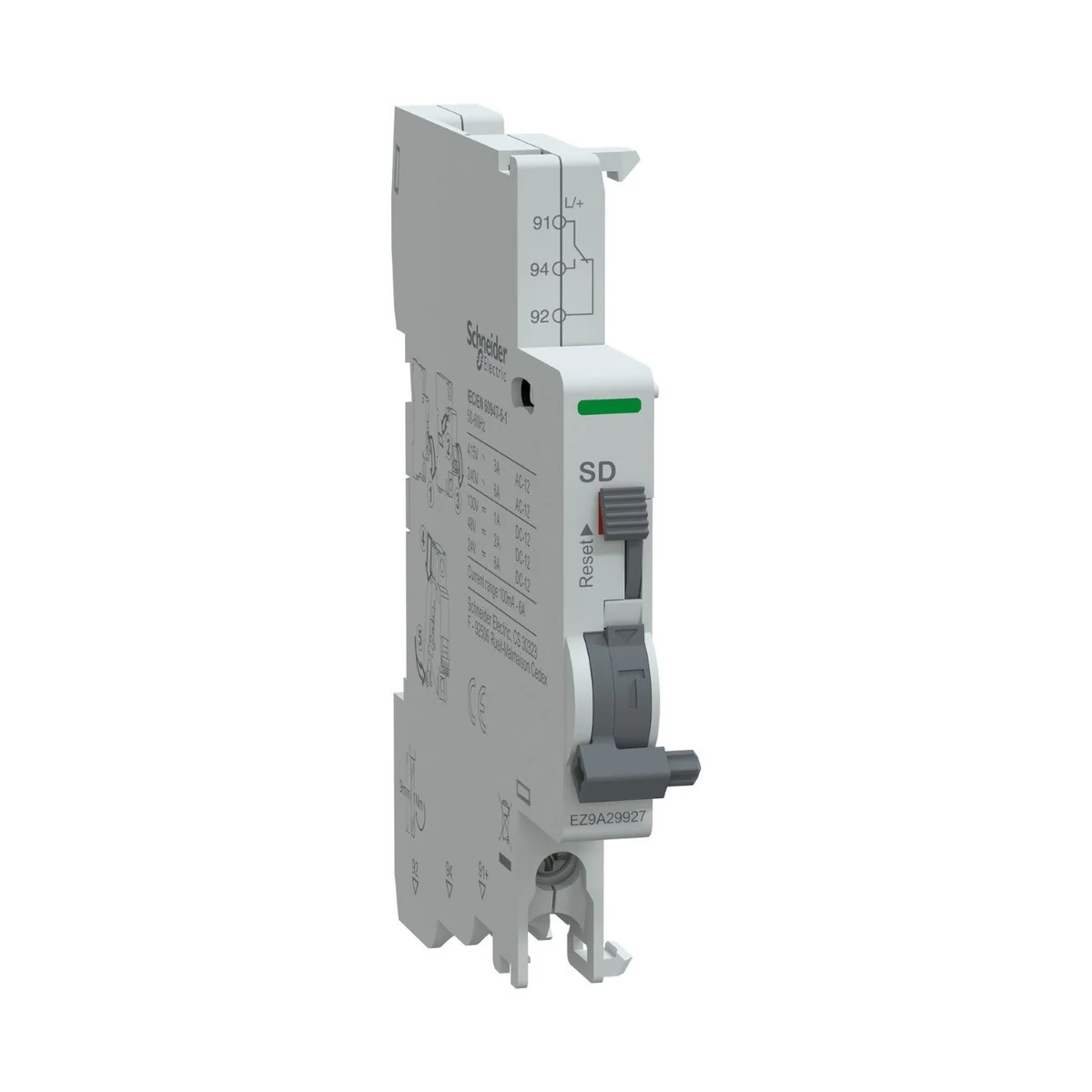

Schneider Electric EZ9A29927 Pro Auxiliary Contact Fault Contact SD, 1AK, AC/DC
- Brand: Schneider Electric
- SKU: EZ9A29927
- MPN: EZ9A29927
- Price: 528.20 TRY + VAT · incl. VAT 633.84 TRY
- Availability: In stock
- Auxiliary Contacts
- Schneider Electric Auxiliary Contacts
- Selection guide: Switchgear Auxiliary and Trip Alarm Contacts Selection Guide
Schneider Electric EZ9A29927 Pro Auxiliary Contact Fault Contact SD, 1AK, AC/DC. Technical specifications of this model: Series Compatibility: EASY9 PRO miniature circuit breaker Rated Impulse Withstand Voltage (Uimp): 4 KV Mounting Support: DIN rail Cable Stripping Length: 9 mm Signal Contact Arrangement: 1 C/O Short Device Name: SD Depth: 74 mm Product Family: Easy9 XM devices Product Weight: 37.3 g Color: Gray Tightening Torque: 1 N.M BOTTOM Connection Terminals: Screw clamp terminal (bottom): 1 cable 2.5 mm² - Rigid; Screw clamp terminal (bottom): 2 cable 1.5 mm² - Rigid Series: EASY9 PRO 9 mm Number of Module Pitches: 1 Rated Insulation Voltage (Ui): 500 V Manufacturer Standard Declaration: IEC/EN 60947-5-1 Tropical Environment Protection: 2 Mounting Location: Left side of the circuit breaker Pollution Degree: 3 Width: 9 mm Toxic Heavy Metal-Free Declaration: ✓ Height: 85 mm Product Type: Fault contact Manufacturer Certificate Declaration: CE Mounting Style: CLIP-ON Rated Current: 0.1…6 A AT 24...240 V, AC 50/60 Hz 0.1…6 A AT 24...250 V, AC 50/60 Hz 0.1…6 A AT 24 V, DC 0.1…2 A AT 48 V, DC 0.1…1.5 A AT 60 V, DC 0.1…1 A AT 110 V, DC 0.1…1 A AT 130 V, DC 0.1…3 A AT 277 V, AC 50/60 Hz 0.1…3 A AT 415 V, AC 50/60 Hz Local Indicator: MECHANICAL INDICATOR Operating Ambient Temperature: -25…70 °C Storage Temperature: -40…85 °C IP Rating: IP20 Comb Busbar and Distribution Block Compatibility: Top: Yes
| 9 mm Module Pitch Count | 1 |
|---|---|
| Rated Current | 0.1…6 A AT 24...240 V, AC 50/60 Hz 0.1…6 A AT 24...250 V, AC 50/60 Hz 0.1…6 A AT 24 V, DC 0.1…2 A AT 48 V, DC 0.1…1.5 A AT 60 V, DC 0.1…1 A AT 110 V, DC 0.1…1 A AT 130 V, DC 0.1…3 A AT 277 V, AC 50/60 Hz 0.1…3 A AT 415 V, AC 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Insulation Voltage (Ui) | 500 V |
| Connection Terminals | Vidalı kelepçe terminal (alt): 1 kablo 2.5 mm² - Rijit; Vidalı kelepçe terminal (alt): 2 kablo 1.5 mm² - Rijit |
| Operating Ambient Temperature | -25…70 °C |
| Storage Temperature | -40…85 °C |
| Depth | 74 mm |
| Width | 9 mm |
| IP Rating | IP20 |
| Cable Stripping Length | 9 mm |
| Pollution Degree | 3 |
| Short Device Name | SD |
| Mounting Style | CLIP-ON |
| Mounting Support | DIN rail |
| Mounting location | Devre kesicinin sol tarafı |
| Color | Grey |
| Series | Easy9 Pro |
| Series Compatibility | EASY9 PRO minyatür devre kesici |
| Tightening Torque | 1 N.M BOTTOM |
| Signal Contact Arrangement | 1 C/O |
| Comb Busbar and Distribution Block Compatibility | Üst: Evet |
| Toxic Heavy Metal-Free Declaration | ✓ |
| Tropical Environment Protection | 2 |
| Manufacturer Certificate Declaration | CE |
| Manufacturer Standard Declaration | IEC/EN 60947-5-1 |
| Product Weight | 37.3 g |
| Product Family | Easy9 XM devices |
| Product Type | Arıza kontağı |
| Local Indicator | MECHANICAL INDICATOR |
| Height | 85 mm |
