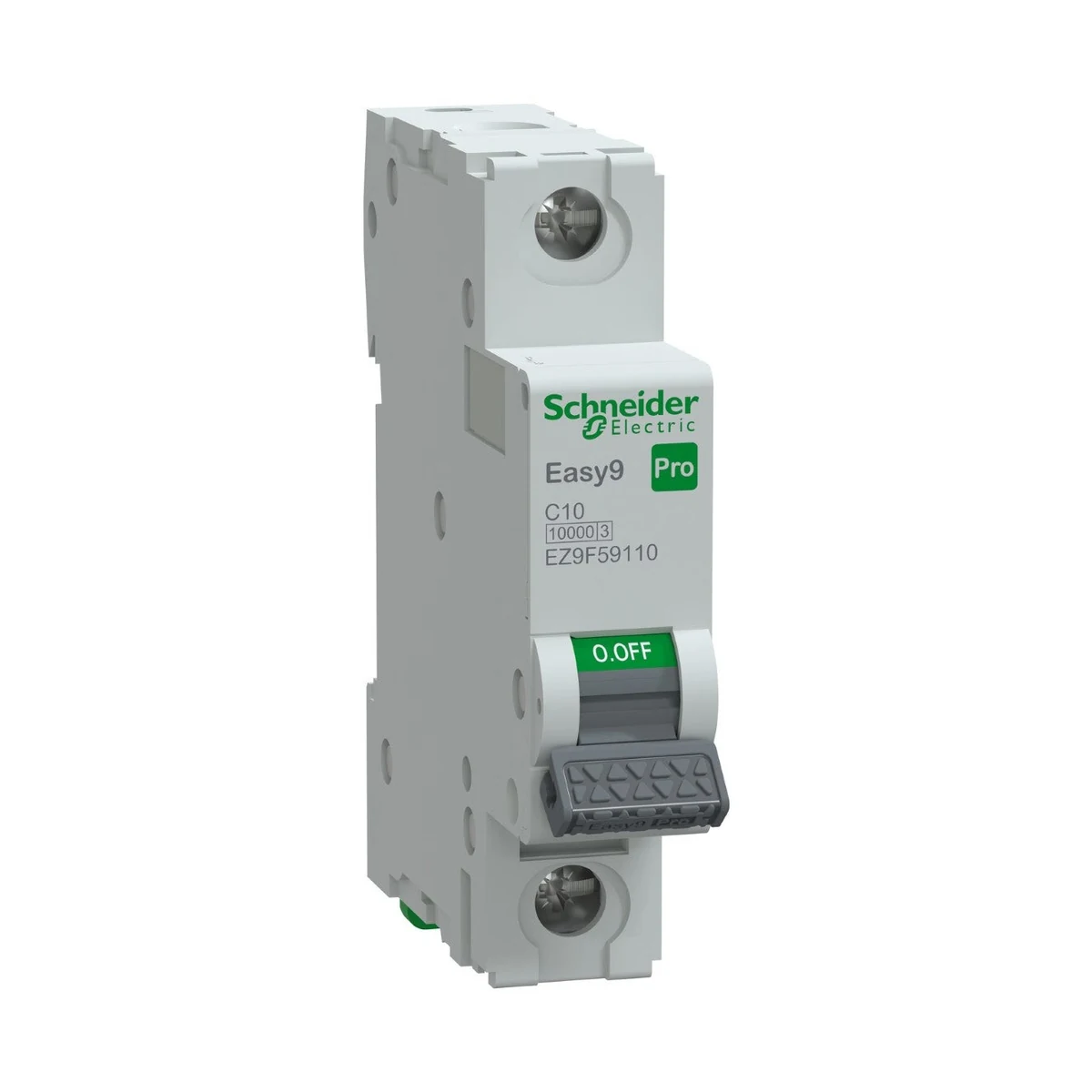

Schneider Electric EZ9F59110 Pro MCB 1P C Curve 10A 10 kA
- Brand: Schneider Electric
- SKU: EZ9F59110
- MPN: EZ9F59110
- Price: 472.60 TRY + VAT · incl. VAT 567.12 TRY
- Availability: In stock
- Miniature Circuit Breakers
- Schneider Electric Miniature Circuit Breakers
- Selection guide: Miniature Circuit Breakers Selection Guide
- Calculate current and breaker size from active power
Schneider Electric EZ9F59110 Pro MCB 1P C Curve 10A 10 kA. Technical specifications of this model: Rated Service Breaking Capacity (Ics): 10000 A 100 % CONFORMING TO IEC/EN 60898-1 - 240 V AC 50/60 Hz / 7.5 KA 75 % CONFORMING TO IEC/EN 60947-2 - 240 V AC 50/60 Hz Width: 18 mm Silicone-Free Declaration: No Connection Terminals: Tunnel terminals (bottom) 1…16 mm² Flexible; Tunnel terminals (bottom) 1…25 mm² Rigid Mains Type: AC Mechanical Endurance: 20000 CYCLES PVC-Free Declaration: No Series: Easy9 Pro 9 mm Number of Module Pitches: 2 Isolation Suitability: Yes, complies with IEC/EN 60898-1 Rated Current: 10 A IP Rating: IP20 CONFORMING TO IEC 60529 Manufacturer Standard Declaration: IEC/EN 60898-1IEC/EN 60947-2 Product Weight: 102 g Trip Unit Technology: THERMAL-MAGNETIC Tightening Torque: 2 N.M Short-Circuit Breaking Capacity: 10 kA Mounting Support: DIN rail Mains Frequency: 50/60 Hz Electrical Endurance: 10000 CYCLES Height: 85 mm Rated Operational Voltage: 240 V AC 50/60 Hz Comb Busbar and Distribution Block Compatibility: TOP: PIN TYPEBOTTOM: PIN/FORK TYPE Rated Insulation Voltage (Ui): 500 V AC 50/60 Hz CONFORMING TO IEC/EN 60898-1500 V AC 50/60 Hz CONFORMING TO IEC/EN 60947-2 Limitation Class: 3 Mounting Style: CLIP-ON Tropical Environment Protection: 2 CONFORMING TO IEC 60068-1 Manufacturer Certificate Declaration: TSECE Relative Humidity: 95 % AT 55 °C Storage Temperature: -40…85 °C Rated Impulse Withstand Voltage (Uimp): 4 KV CONFORMING TO IEC/EN 60898-14 KV CONFORMING TO IEC/EN 60947-2 Contact Position Indicator: Yes Toxic Heavy Metal-Free Declaration: ✓ Depth: 77 mm Product Type: Miniature Circuit Breaker Product Family: Easy9 XM devices Number of protected poles: 1 Halogen-Free Material Status: Product contains halogen above threshold values Tripping characteristic: C Control type: TOGGLE Device Application: DISTRIBUTION Operating Ambient Temperature: -30…70 °C Magnetic Trip Limit: 5...10 X IN CONFORMING TO IEC/EN 60898-18 X IN +/- 20 % CONFORMING TO IEC/EN 60947-2 Color: Gray (RAL 7035) Pollution Degree: 3 CONFORMING TO IEC/EN 60947-2 Short Device Name: Easy9 Pro MCB Pole arrangement: 1P Local Indicator: ON/OFF INDICATION Padlock Provision: Yes Breaking Capacity: 10000 A ICU AT 240 V AC 50/60 Hz CONFORMING TO IEC/EN 60898-110 KA ICU AT 240 V AC 50/60 Hz CONFORMING TO IEC/EN 60947-2
| 9 mm Module Pitch Count | 2 |
|---|---|
| Tripping Curve | C |
| Trip Unit Technology | THERMAL-MAGNETIC |
| Rated Current | 10 A |
| Rated Operational Voltage | 240 V AC 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 4 KV CONFORMING TO IEC/EN 60898-14 KV CONFORMING TO IEC/EN 60947-2 |
| Rated Service Breaking Capacity (Ics) | 10000 A 100 % CONFORMING TO IEC/EN 60898-1 - 240 V AC 50/60 Hz / 7.5 KA 75 % CONFORMING TO IEC/EN 60947-2 - 240 V AC 50/60 Hz |
| Rated Insulation Voltage (Ui) | 500 V AC 50/60 Hz CONFORMING TO IEC/EN 60898-1500 V AC 50/60 Hz CONFORMING TO IEC/EN 60947-2 |
| Padlock Provision | Available |
| Isolation Suitability | Evet, IEC/EN 60898-1'e uygun |
| Relative Humidity | 95 % AT 55 °C |
| Connection Terminals | Tünel tipi terminaller (alt) 1…16 mm² Esnek; Tünel tipi terminaller (alt) 1…25 mm² Rijit |
| Operating Ambient Temperature | -30…70 °C |
| Device Application | DISTRIBUTION |
| Storage Temperature | -40…85 °C |
| Depth | 77 mm |
| Electrical Endurance | 10000 CYCLES |
| Width | 18 mm |
| Halogen-Free Material Status | Ürün eşik değerlerin üzerinde halojen içerir |
| IP Rating | IP20 |
| Breaking Capacity | 10000 A ICU AT 240 V AC 50/60 Hz CONFORMING TO IEC/EN 60898-110 KA ICU AT 240 V AC 50/60 Hz CONFORMING TO IEC/EN 60947-2 |
| Pollution Degree | 3 CONFORMING TO IEC/EN 60947-2 |
| Short Device Name | Easy9 Pro MCB |
| Short-Circuit Breaking Capacity | 10 kA |
| Contact Position Indicator | Available |
| Control Type | TOGGLE |
| Number of Protected Poles | 1P |
| Pole Arrangement | 1P |
| Magnetic Trip Limit | 5...10 X IN CONFORMING TO IEC/EN 60898-18 X IN +/- 20 % CONFORMING TO IEC/EN 60947-2 |
| Mechanical Endurance | 20000 cycles |
| Mounting Style | CLIP-ON |
| Mounting Support | DIN rail |
| PVC-Free Declaration | No |
| Color | Grey (RAL 7035) |
| Mains Frequency | 50/60 Hz |
| Mains Type | AC |
| Series | Easy9 Pro |
| Tightening Torque | 2 N.M |
| Silicone-Free Declaration | No |
| Limitation Class | 3 |
