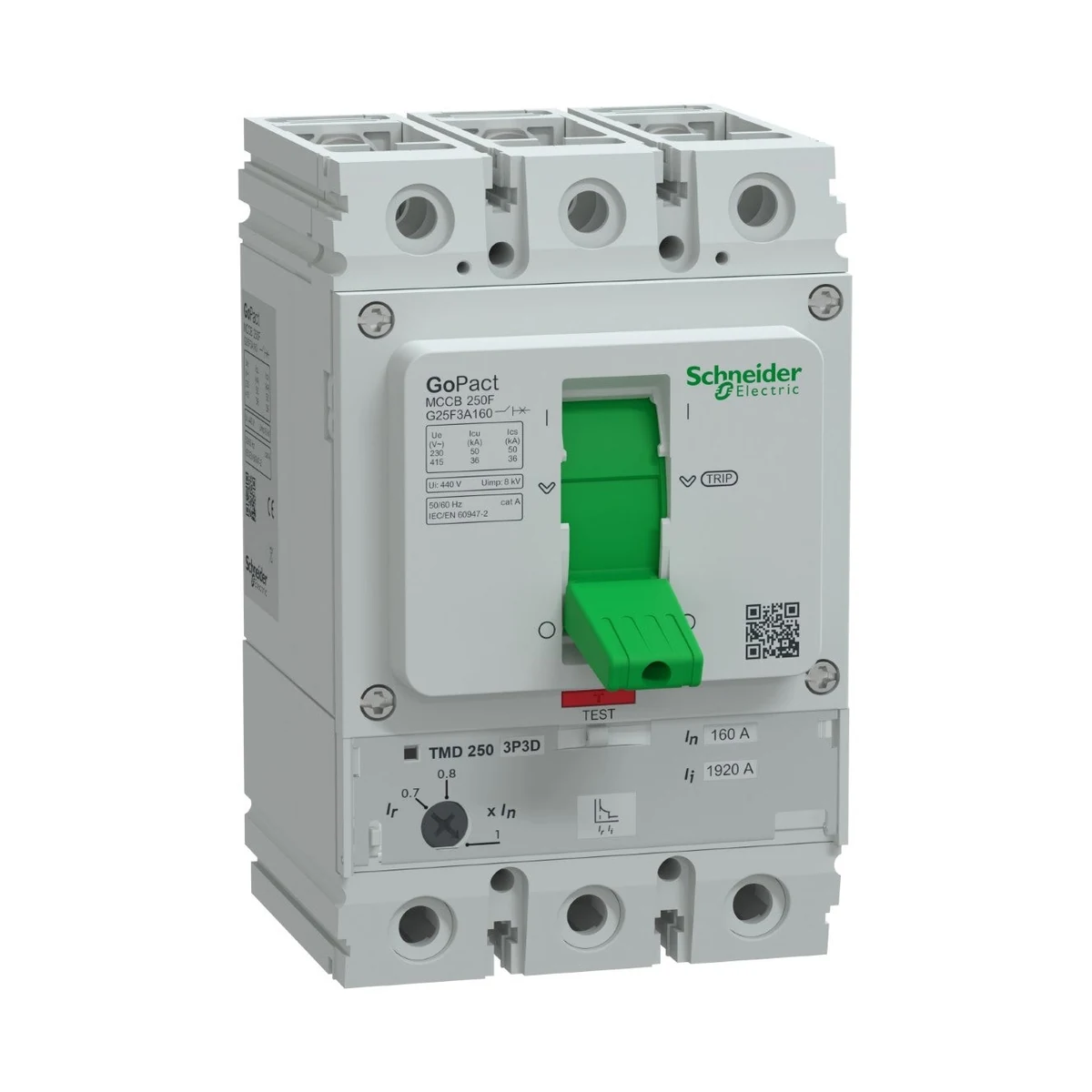

Schneider Electric G25F3A160 GOMCCB 250F 3P3D 160A Adjustable
- Brand: Schneider Electric
- SKU: G25F3A160
- MPN: G25F3A160
- Price: 15512.32 TRY + VAT · incl. VAT 18614.78 TRY
- Availability: Made to order
- Molded Case Circuit Breakers
- Schneider Electric Molded Case Circuit Breakers
- Selection guide: Molded Case Circuit Breakers (MCCB) Selection Guide
- Schneider Electric G25F3A160 Teknik Veri Föyü (PDF)
Schneider Electric G25F3A160 GOMCCB 250F 3P3D 160A Adjustable. Technical specifications of this model: Rated Current: 160A Series: GoPact
| Rated Current | 160 A |
|---|---|
| Series | GoPact |
| Product Type | Circuit Breaker |
| Device Application | Distribution |
| Pole Arrangement | 3P |
| Protected Pole Configuration | 3d |
| Rated Current (In) | 160 A @ 40 °C; 160 A @ 50 °C |
| Rated Operational Voltage (Ue) | 415 V AC 50/60 Hz (EN/IEC 60947-2) |
| Suitable for Isolation | Yes (EN/IEC 60947-2) |
| Utilization Category | Category A |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 36 kA Icu @ 380/415 V AC 50/60 Hz (EN/IEC 60947-2); 50 kA Icu @ 220/230 V AC 50/60 Hz (EN/IEC 60947-2) |
| Release Type | TM-D |
| Trip Unit Technology | Termik Manyetik |
| Protection Functions | LI |
| Control Type | Feed-through |
| Mounting Type | Fixed |
| Rated Insulation Voltage (Ui) | 440 V AC (EN/IEC 60947-2) |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV (EN/IEC 60947-2) |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 36 kA @ 380/415 V AC 50/60 Hz (EN/IEC 60947-2); 50 kA @ 220/230 V AC 50/60 Hz (EN/IEC 60947-2) |
| Mechanical Endurance | 25000 cycles |
| Electrical Endurance | 8000 cycles @ 415 V In |
| Power Loss per Pole | 25 W |
| Mounting Support | Backplate |
| Mounting Position | Yatay ve dikey; Sırtında düz |
| Top Connection | Front |
| Bottom Connection | Front |
| Connection Range | 35 mm |
| Trip Unit Rating | 160 A @ 40 °C; 160 A @ 50 °C |
| Long-Time Pick-up Adjustment Range (Ir) | 0,7…1 x In |
| Long-Time Delay Adjustment Type (tr) | Fixed |
| Instantaneous Pick-up Adjustment Type (Ii) | Fixed |
| Instantaneous Pick-up Adjustment Range (Ii) | 12 x In |
| Width | 105 mm |
| Height | 165 mm |
| Depth | 90 mm |
| Product Weight | 1.9 kg |
| Color | Grey (RAL 7035) |
| Standards | EN/IEC 60947-1; EN/IEC 60947-2; EN/IEC 60947-2 Ek H |
| Overvoltage category | III |
| Pollution Degree | 3 (IEC 60664-1) |
