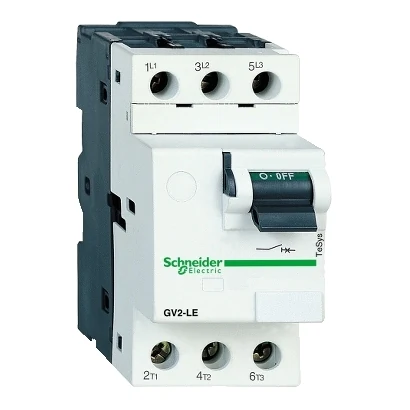

Schneider Electric GV2LE14 TeSys GV2 Motor Circuit Breaker Magnetic 10A
- Brand: Schneider Electric
- SKU: GV2LE14
- MPN: GV2LE14
- Price: 4214.46 TRY + VAT · incl. VAT 5057.35 TRY
- Availability: Made to order
- Motor Protection Circuit Breakers
- Schneider Electric Motor Protection Circuit Breakers
- Selection guide: Motor Protection Circuit Breakers Selection Guide
- Schneider Electric GV2LE14 Teknik Veri Föyü (PDF)
Schneider Electric GV2LE14 TeSys GV2 Motor Circuit Breaker Magnetic. 10A. Technical specifications of this model: Rated Current: 10A Series: TeSys GV2
| Rated Current | 10 A |
|---|---|
| Series | TeSys GV2 |
| Product Type | Motor devre kesicisi |
| Device Application | Motor koruması |
| Trip Unit Technology | Manyetik |
| Pole Arrangement | 3P |
| Current Type | AC |
| Utilization Category | Kategori A (IEC 60947-2); AC-3 (IEC 60947-4-1); AC-3e (IEC 60947-4-1) |
| Mains Frequency | 50/60 Hz (IEC 60947-2) |
| Control Type | Feed-through |
| Rated Current (In) | 10 A |
| Conventional Free Air Thermal Current (Ith) | 10 A (IEC 60947-2) |
| Rated Operational Voltage (Ue) | 690 V AC 50/60 Hz (IEC 60947-2) |
| Rated Insulation Voltage (Ui) | 690 V AC 50/60 Hz (IEC 60947-2) |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV (IEC 60947-2) |
| Suitable for Isolation | Yes (IEC 60947-1) |
| Power Loss per Pole | 1.8 W |
| Mechanical Endurance | 100000 cycles |
| Electrical Endurance | 100000 cycles için AC-3 @ 415 V In; 100000 cycles için AC-3e @ 415 V In |
| Rated Duty | Kesintisiz (IEC 60947-4-1) |
| Tightening Torque | 1,7 N.m - üzerinde vida kelepçesi terminali |
| Fixing Method | 35 mm simetrik DIN rayı: klipsli; Panel: vidalı (with adaptor plate) |
| Mounting Position | Yatay; Dikey |
| Width | 45 mm |
| Height | 89 mm |
| Depth | 78.5 mm |
| Product Weight | 0.33 kg |
| Color | Koyu gri |
| Standards | EN/IEC 60947-2; EN/IEC 60947-4-1; UL 60947-4-1; CSA C22.2 No 60947-4-1; IEC/EN 60335-2-40:Annex JJ |
| Certifications | CB Şeması; CE; UKCA; CCC; cULus; EAC; LROS (Lloyds register of shipping); BV; RINA; DNV-GL |
| IK Impact Protection | IK04 |
| IP Rating | IP20 |
| Storage Temperature | -40…80 °C |
| Fire Resistance | 960 °C (IEC 60695-2-11) |
| Operating Ambient Temperature | -20…60 °C |
| Mechanical Durability | Şoklar: 11 msn için 30 Gn; Titreşimler: 5 Gn, 5…150 Hz |
| Operating Altitude | <= 2000 m |
