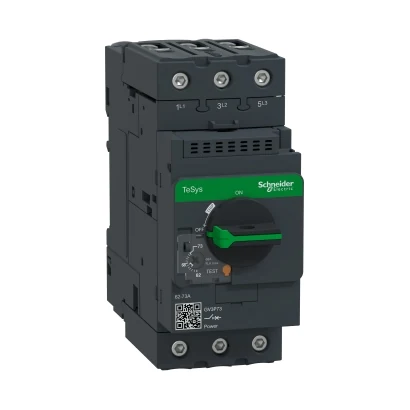

Schneider Electric GV3P73 TeSys GV3 Motor Circuit Breaker Thermal-Magnetic 62-73A
- Brand: Schneider Electric
- SKU: GV3P73
- MPN: GV3P73
- Price: 20584.12 TRY + VAT · incl. VAT 24700.94 TRY
- Availability: In stock
- Motor Protection Circuit Breakers
- Schneider Electric Motor Protection Circuit Breakers
- Selection guide: Motor Protection Circuit Breakers Selection Guide
- Schneider Electric GV3P73 Teknik Veri Föyü (PDF)
Schneider Electric GV3P73 TeSys GV3 Motor Circuit Breaker Thermal-Magnetic. 62-73A. Technical specifications of this model: Series: TeSys GV3 Current Setting Range: 62-73A
| Current Setting Range | 62–73 A |
|---|---|
| Series | TeSys GV3 |
| Product Type | Motor devre kesicisi |
| Device Application | Motor koruması |
| Trip Unit Technology | Termik Manyetik |
| Pole Arrangement | 3P |
| Current Type | AC |
| Utilization Category | Kategori A (IEC 60947-2); AC-3 (IEC 60947-4-1) |
| Mains Frequency | 50/60 Hz (IEC 60947-2) |
| Motor Power (kW) | 37 kW @ 400/415 V AC 50/60 Hz; 45 kW @ 500 V AC 50/60 Hz; 55 kW @ 690 V AC 50/60 Hz |
| Control Type | Döner kol |
| Rated Current (In) | 73 A |
| Conventional Free Air Thermal Current (Ith) | 73 A (IEC 60947-2) |
| Rated Operational Voltage (Ue) | 690 V AC 50/60 Hz |
| Rated Insulation Voltage (Ui) | 690 V AC 50/60 Hz (IEC 60947-2) |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV (IEC 60947-2) |
| Phase Failure Sensitivity | Yes (IEC 60947-4-1) |
| Suitable for Isolation | Yes (IEC 60947-1) |
| Power Loss per Pole | 8 W |
| Mechanical Endurance | 50000 cycles |
| Electrical Endurance | 20000 cycles için AC-3 @ 415 V In |
| Rated Duty | Kesintisiz (IEC 60947-4-1) |
| Tightening Torque | 5 N.m - üzerinde vida kelepçesi terminali |
| Mounting Position | Yatay; Dikey |
| Width | 55 mm |
| Height | 132 mm |
| Depth | 136 mm |
| Product Weight | 0.96 kg |
| Color | Koyu gri |
| Standards | EN/IEC 60947-2; EN/IEC 60947-4-1; UL 60947-4-1; CSA C22.2 No 60947-4-1; IEC/EN 60335-1:Clause 30.2; IEC/EN 60335-2-40:Annex JJ |
| Certifications | CB Şeması; CE; UKCA; CCC; cULus; EAC; ATEX; LROS (Lloyds register of shipping); BV; ABS; DNV-GL |
| IK Impact Protection | IK09 muhafaza |
| IP Rating | IP20 |
| Storage Temperature | -40…80 °C |
| Fire Resistance | 960 °C (IEC 60695-2-11) |
| Operating Ambient Temperature | -20…60 °C |
| Mechanical Durability | Şoklar: 11 msn için 5 Gn kontaktör açık; Şoklar: 11 msn için 30 Gn kontaktör kapalı; Titreşimler: 4 Gn, 5…300 Hz |
| Operating Altitude | 3000 m |
