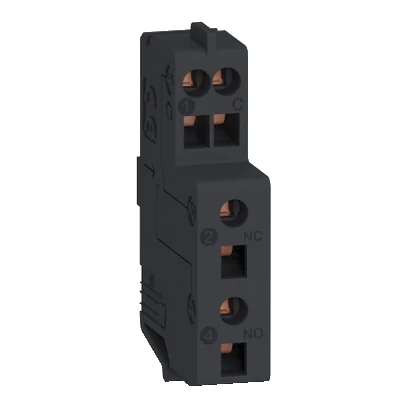

Schneider Electric GV4AE11 TeSys GV4 OFSD auxiliary block
- Brand: Schneider Electric
- SKU: GV4AE11
- MPN: GV4AE11
- Price: 2362.99 TRY + VAT · incl. VAT 2835.59 TRY
- Availability: In stock
- Motor Control Equipment
- Schneider Electric Motor Control Equipment
- Selection guide: Motor Control and Protection Equipment Selection Guide
- Schneider Electric GV4AE11 Teknik Veri Föyü (PDF)
Schneider Electric GV4AE11 TeSys GV4 OFSD auxiliary block. Technical specifications of this model: Series: TeSys GV4
| Series | TeSys GV4 |
|---|---|
| Product Type | Yardımcı Kontak |
| Device Application | Sinyalleme |
| Compatible Series | TeSys TeSys GV4; TeSys TeSys BV4 |
| Auxiliary contact configuration | 1 NO/NC |
| Rated Operational Voltage (Ue) | <= 690 V |
| Conventional Free Air Thermal Current (Ith) | 5 A (IEC 60947-5-1); 5 A (CSA C22.2 No 14); 5 A (UL 508) |
| Mounting Type | Iç montaj |
| Rated Insulation Voltage (Ui) | 690 V (IEC 60947-1) |
| Rated Power (W) | DC-12: 120 W 24 V (IEC 60947-5-1); DC-12: 120 W 48 V (IEC 60947-5-1); DC-12: 66 W 110 V (IEC 60947-5-1); DC-12: 75 W 250 V (IEC 60947-5-1) |
| Associated Fuse Rating | 5 A gG at 690 V (IEC 60947-5-1) |
| Minimum Switching Current | 2 mA |
| Minimum Switching Voltage | 17 V |
| Mechanical Endurance | 40000 cycles |
| Connection Terminals | Yaylı terminaller 1 0,5…1,5 mm² - cable stiffness: esnek kablo uçsuz |
| Cable Stripping Length | 8 mm |
