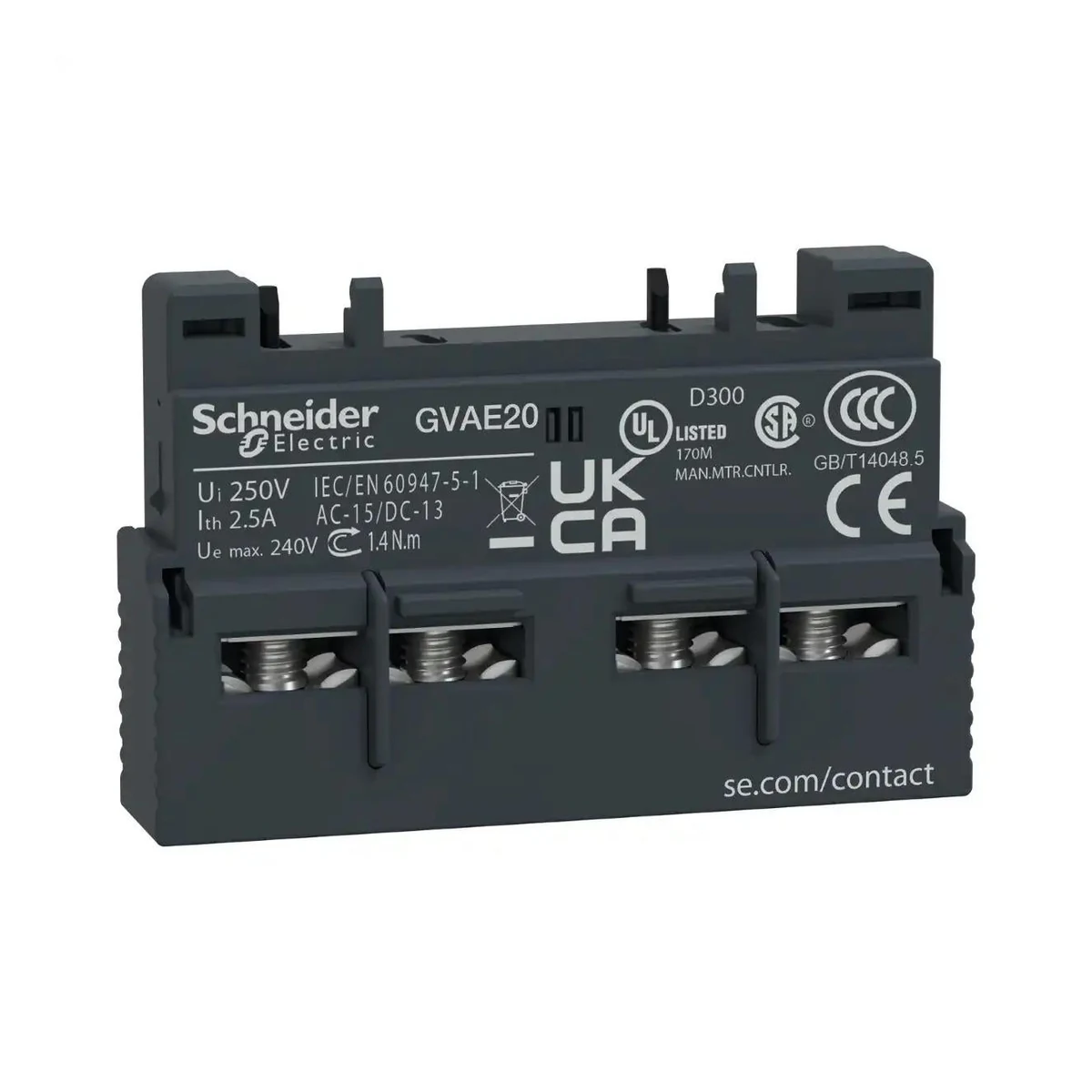

Schneider Electric GVAE20 TeSys GV3 Auxiliary Contact Block Front-Mounted 2NO
- Brand: Schneider Electric
- SKU: GVAE20
- MPN: GVAE20
- Price: 578.24 TRY + VAT · incl. VAT 693.89 TRY
- Availability: Made to order
- Auxiliary Contacts
- Schneider Electric Auxiliary Contacts
- Selection guide: Switchgear Auxiliary and Trip Alarm Contacts Selection Guide
- Schneider Electric GVAE20 Teknik Veri Föyü (PDF)
Schneider Electric GVAE20 TeSys GV3 Auxiliary Contact Block Front-Mounted 2NO. Technical specifications of this model: Series: TeSys GV3 Contact Arrangement: 2NO
| Contact Arrangement | 2NO |
|---|---|
| Series | TeSys GV3 |
| Product Type | Yardımcı kontak bloğu |
| Compatible Products | GV2P; GV2L; GV2ME; GV2LE; GV2RT; GV2LM; GV3P; GV3L |
| Mounting Position | Ön taraf |
| Power Pole Contact Arrangement | 2 NA |
| Rated Insulation Voltage (Ui) | 300 V (UL 508); 300 V (CSA C22.2 No 14); 250 V (IEC 60947-1) |
| Rated Operational Voltage (Ue) | 24…240 V AC; 24…60 V DC |
| Conventional Free Air Thermal Current (Ith) | 2.5 A |
| Mechanical Endurance | 100000 cycles |
| Minimum Switching Current | 5 mA |
| Minimum Switching Voltage | 17 V |
| Protection Type | GG sigorta 10 A; GB2CB06 devre kesici 10 A maksimum |
| Tightening Torque | 1,7 N.m vida kelepçesi terminalleri |
| Height | 11 mm |
| Width | 45 mm |
| Depth | 29 mm |
| Product Weight | 0.02 kg |
| Color | Koyu gri |
| Environmental Conditions | Normal ortam |
| Standards | EN/IEC 60947-5-1; UL 60947-4-1; CSA C22.2 No 60947-4-1; IEC/EN 60335-1:Clause 30.2; IEC/EN 60335-2-40:Annex JJ |
| Certifications | CB Şeması; CE; UKCA; CCC; cULus; EAC |
