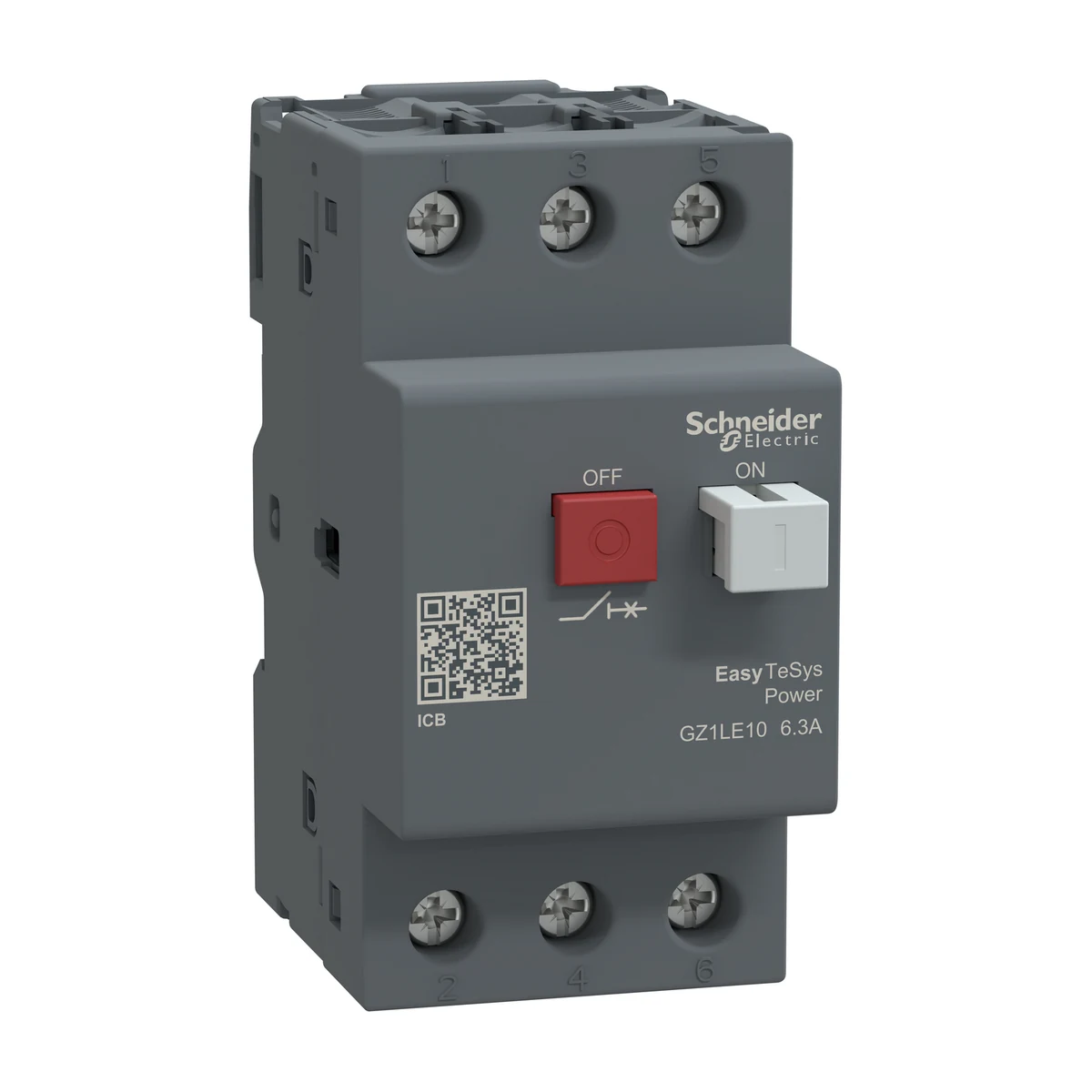

Schneider Electric GZ1LE10 EasyPact TVS Motor Protection Circuit Breaker Magnetic 6.3A
- Brand: Schneider Electric
- SKU: GZ1LE10
- MPN: GZ1LE10
- Price: 2574.27 TRY + VAT · incl. VAT 3089.12 TRY
- Availability: Made to order
- Motor Protection Circuit Breakers
- Schneider Electric Motor Protection Circuit Breakers
- Selection guide: Motor Protection Circuit Breakers Selection Guide
- Schneider Electric GZ1LE10 Teknik Veri Föyü (PDF)
Schneider Electric GZ1LE10 EasyPact TVS Motor Protection Circuit Breaker Magnetic 6.3A. Technical specifications of this model: Rated Current: 6.3A Series: EasyPact TVS
| Rated Current | 6.3 A |
|---|---|
| Series | EasyPact TVS |
| Product Type | Circuit Breaker |
| Device Application | Motor |
| Trip Unit Technology | Manyetik |
| Suitable for Isolation | Yes (IEC 60947-1 ek 7.1.6) |
| Color | Grey (RAL 7011) |
| Pole Arrangement | 3P |
| Current Type | AC |
| Utilization Category | AC-3 |
| Mains Frequency | 50/60 Hz (IEC 60947-2) |
| Mounting Type | Klipsle; Vidalarla |
| Mounting Support | Ray |
| Mounting Position | Herhangi bir konum |
| Motor Power (kW) | 1,1 kW @ 230 V AC 50/60 Hz; 2,2 kW @ 400 V AC 50/60 Hz; 3 kW @ 440 V AC 50/60 Hz; 3,7 kW @ 500 V AC 50/60 Hz; 4 kW @ 690 V AC 50/60 Hz |
| Control Type | Açma/kapama butonu |
| Rated Current (In) | 6.3 A |
| Rated Operational Voltage (Ue) | 690 V AC 50/60 Hz (IEC 60947-2) |
| Rated Insulation Voltage (Ui) | 690 V AC 50/60 Hz (IEC 60947-2) |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV (IEC 60947-2) |
| Mechanical Endurance | 100000 cycles |
| Electrical Endurance | 100000 cycles için AC-3 |
| Maximum Operating Rate (cycles/h) | 25 cyc/h |
| Height | 89 mm |
| Width | 44.5 mm |
| Depth | 78 mm |
| Product Weight | 0.25 kg |
| Standards | EN/IEC 60947-1; EN/IEC 60947-2; EN/IEC 60947-4-1; GB/T 14048.1; GB/T 14048,2; GB/T 14048,4; EN/IEC 60335-1:Clause 30.2; EN/IEC 60335-2-40:Annex JJ |
| Certifications | CB Şeması; CCC; CE; EAC |
| IP Rating | IP20 |
| Operating Ambient Temperature | -20…60 °C |
| Storage Temperature | -40…80 °C |
| Fire Resistance | 960 °C (IEC 60695-2-1) |
| Operating Altitude | 2000 m |
