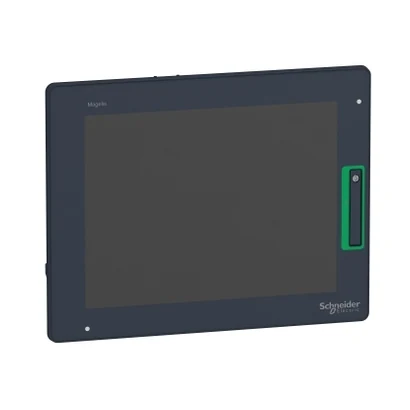

Schneider Electric HMIDT542 10" Touchscreen - XGA
- Brand: Schneider Electric
- SKU: HMIDT542
- MPN: HMIDT542
- Price: 194598.95 TRY + VAT · incl. VAT 233518.74 TRY
- Availability: Made to order
- HMI and Operator Panels
- Schneider Electric HMI and Operator Panels
- Selection guide: What Is an HMI? Operator Panel Selection Guide
- Schneider Electric HMIDT542 Teknik Veri Föyü (PDF)
Schneider Electric HMIDT542 10" Touchscreen - XGA.
| Series | Harmony GTU |
|---|---|
| Product Type | Düz ekran |
| Rated Control Supply Voltage (Us) | 12…24 V DC güç besleme |
| Supply Voltage Limits | 10.8–28.8 V |
| Power Consumption (W) | 15 W |
| Integrated Connection Type | USB 2.0 tip A; USB 2.0 tip mini B |
| Display Type | Renkli TFT LCD |
| Display Resolution | 800 x 600 pixels SVGA |
| Available Functions | Parlaklık sensörü |
| Width | 272.5 mm |
| Height | 214.5 mm |
| Depth | 67 mm |
| Product Weight | 2.7 kg |
| IP Rating | Ön panel: IP66; Ön panel: IP67 |
| NEMA protection rating | NEMA 4X ön panel |
| Standards | UL 508; ANSI/ISA 12-12-01; Sınıf I bölüm 2 CSA C22.2 No 213; CSA C22.2 No 142; IEC 61132-2 |
| Certifications | CULus; CE; KC; RCM; UKCA; UKEX |
| Operating Ambient Temperature | 0…60 °C (IEC 61131-2) |
| Storage Temperature | -20…60 °C |
| Relative Humidity | 10…90 % yoğuşmasız |
| Operating Altitude | 2000 m |
| Vibration Resistance | 3,5 mm sabit genlik[Alan](f =[Alan]5…9 Hz) (IEC 61131-2); 9,8 m/s²[Alan](f =[Alan]9…150 Hz) (IEC 61131-2) |
| Shock Resistance | 147 m/s² (IEC 61131-2) |
| Electromagnetic Compatibility | Elektrostatik deşarj bağışıklık testi seviye 3 (IEC 61000-4-2) |
