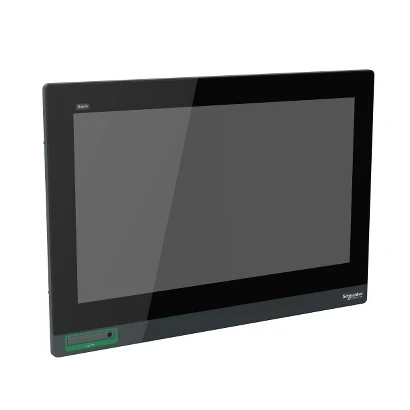

Schneider Electric HMIDT952 19" Touchscreen - FWXGA
- Brand: Schneider Electric
- SKU: HMIDT952
- MPN: HMIDT952
- Price: 337156.58 TRY + VAT · incl. VAT 404587.90 TRY
- Availability: Made to order
- HMI and Operator Panels
- Schneider Electric HMI and Operator Panels
- Selection guide: What Is an HMI? Operator Panel Selection Guide
- Schneider Electric HMIDT952 Teknik Veri Föyü (PDF)
Schneider Electric HMIDT952 19" Touchscreen - FWXGA.
| Series | Harmony GTU |
|---|---|
| Product Type | Düz ekran |
| Rated Control Supply Voltage (Us) | 12…24 V DC güç besleme |
| Supply Voltage Limits | 10.8–28.8 V |
| Power Consumption (W) | 19 W |
| Integrated Connection Type | USB 2.0 tip A; USB 2.0 tip mini B |
| Display Type | Renkli TFT LCD |
| Display Resolution | 1366 x 768 piksel FWXGA |
| Available Functions | Parlaklık sensörü |
| Width | 483 mm |
| Height | 337 mm |
| Depth | 69 mm |
| Product Weight | 6.8 kg |
| IP Rating | Ön panel: IP66; Ön panel: IP67 |
| NEMA protection rating | NEMA 4X ön panel |
| Standards | UL 508; ANSI/ISA 12-12-01; Sınıf I bölüm 2 CSA C22.2 No 213; CSA C22.2 No 142; IEC 61132-2 |
| Certifications | RCM; CULus; CE; KC |
| Operating Ambient Temperature | 0…55 °C (IEC 61131-2) |
| Storage Temperature | -20…60 °C |
| Relative Humidity | 10…90 % yoğuşmasız |
| Operating Altitude | 2000 m |
| Vibration Resistance | 3,5 mm sabit genlik[Alan](f =[Alan]5…9 Hz) (IEC 61131-2); 9,8 m/s²[Alan](f =[Alan]9…150 Hz) (IEC 61131-2) |
| Shock Resistance | 147 m/s² (IEC 61131-2) |
| Electromagnetic Compatibility | Elektrostatik deşarj bağışıklık testi seviye 3 (IEC 61000-4-2) |
