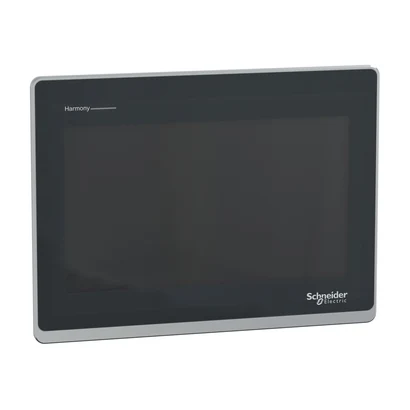

Schneider Electric HMISTW6500 10" Web Terminal
- Brand: Schneider Electric
- SKU: HMISTW6500
- MPN: HMISTW6500
- Price: 86957.93 TRY + VAT · incl. VAT 104349.52 TRY
- Availability: Made to order
- HMI and Operator Panels
- Schneider Electric HMI and Operator Panels
- Selection guide: What Is an HMI? Operator Panel Selection Guide
- Schneider Electric HMISTW6500 Teknik Veri Föyü (PDF)
Schneider Electric HMISTW6500 10" Web Terminal.
| Series | Harmony ST6 |
|---|---|
| Product Type | Dokunmatik panel ekranı |
| Display Type | Renkli TFT LCD |
| Display Resolution | 1024 x 600 pixel WSVGA |
| Rated Control Supply Voltage (Us) | 24 V DC (+/- %20) |
| Power Consumption | 12.6 W |
| Ethernet Port | 10/100BASE |
| Integrated Connection Type | 1 USB 2.0 tip Aback; 1 Ethernet - dişi RJ45alt |
| Supply | Harici besleme |
| Fixing Method | 4 vidayla, montaj yeri 1,6…5 mm ince panel (UL 61010-2-201); 4 vidayla (IEC 61131-2); 4 vidayla (IEC 61000-6-2) |
| Housing Material | PC |
| Conformity Markings | CE |
| Height | 203 mm |
| Width | 273 mm |
| Depth | 47 mm |
| Product Weight | 1.3 kg |
| Micro-Interruption Immunity | 10 ms |
| Standards | IEC 61000-6-4; IEC 61000-6-2; IEC 61131-2; UL 61010-2-201; CSA C22.2 No 61010-2-201 |
| Certifications | CSA; CE; UKCA |
| Operating Ambient Temperature | 0…50 °C |
| Storage Temperature | -20…60 °C |
| Relative Humidity | 10…90 % yoğuşmasız |
| Operating Altitude | 2000 m |
| IP Rating | IP20 (IEC 61131-2 (arka panel)); IP65 (IEC 61131-2 (ön panel)) |
| NEMA protection rating | NEMA 4 ön panel (iç mekan kullanımı); NEMA 13 front panel (in enclosure) |
| Shock Resistance | 147 m/s² için 11 ms (X, Y, Z directions for 3 times) (IEC 61131-2) |
| Vibration Resistance | +/- 3,5 mm[Alan](f =[Alan]5…9 Hz) 10 döngü için X, Y, Z yönleri (yakl. 100 min) 'e; uygunIEC 61131-2; 9,8 m/s²[Alan](f =[Alan]9…150 Hz) |
