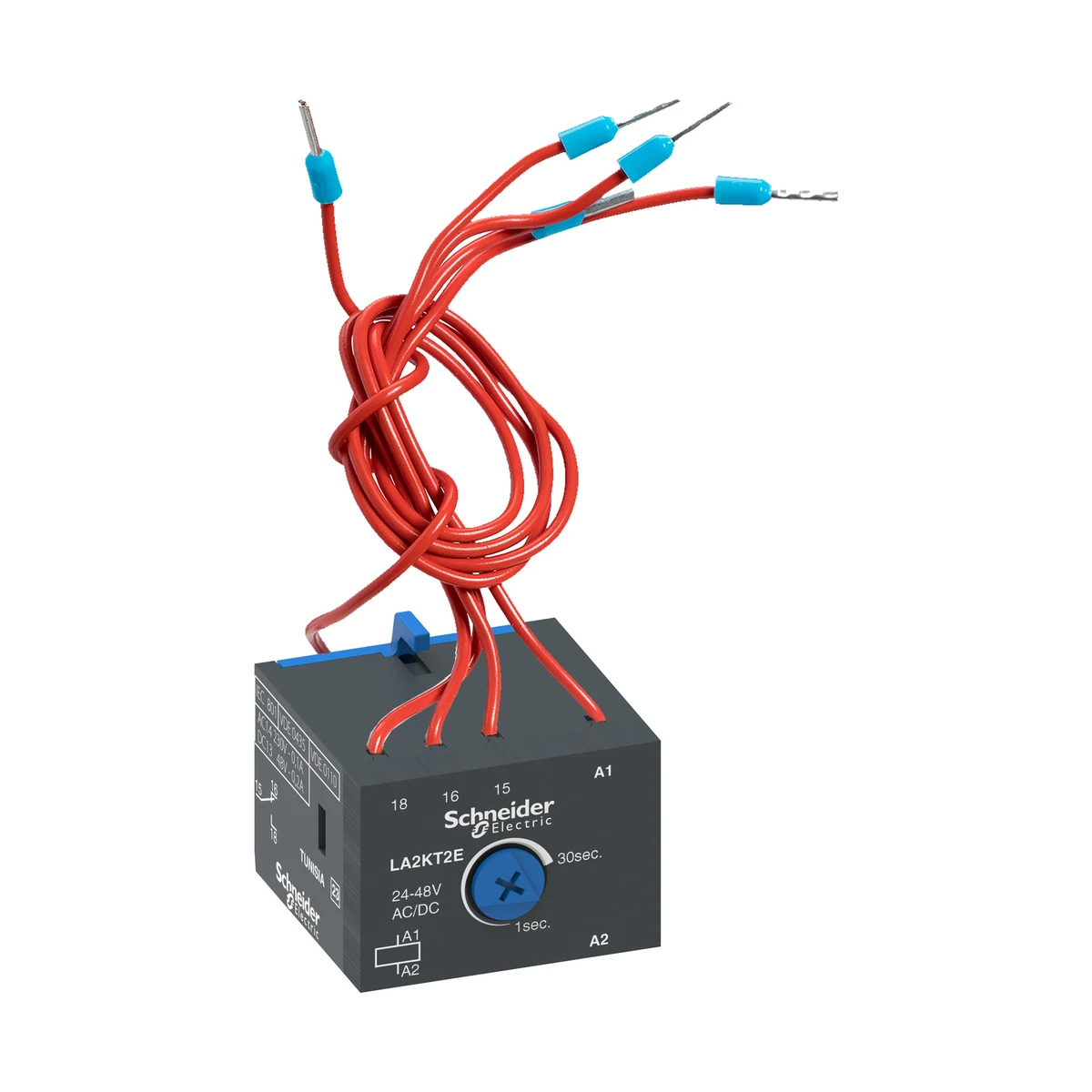

Schneider Electric LA2KT2E TeSys K Electronic Timer Relay 1C/O 24-48V
- Brand: Schneider Electric
- SKU: LA2KT2E
- MPN: LA2KT2E
- Price: 7945.20 TRY + VAT · incl. VAT 9534.24 TRY
- Availability: Made to order
- Single-Function Timer Relays
- Selection guide: Single-Function Timer Relays Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric LA2KT2E Teknik Veri Föyü (PDF)
Schneider Electric LA2KT2E TeSys K Electronic Timer Relay 1C/O 24-48V. Technical specifications of this model: Series: TeSys K
| Series | TeSys K |
|---|---|
| Product Type | Zaman gecikme yardımcı kontak bloğu |
| Compatible Series | TeSys K LC1K; TeSys K CA2K; TeSys K CA3K; TeSys K CA4K |
| Mounting Position | Front |
| Power Pole Contact Arrangement | 1 K/A |
| Contact Timing | Time delay |
| Time Delay Range | 1…30 s |
| Rated Operational Voltage (Ue) | 24…48 V AC/DC için kontrol devresi; 240 V AC için sinyalleme devresi |
| Conventional Free Air Thermal Current (Ith) | 2 A sinyalleme devresi için |
| Standards | EN/IEC 60947-5-1 |
| Certifications | CE; UKCA |
| Insulation Resistance | > 10 MOhm |
| Connection Terminals | Slip-on terminaller |
| Height | 27 mm |
| Width | 38 mm |
| Depth | 38 mm |
| Product Weight | 0.04 kg |
| Environmental Conditions | Normal ortam |
| IP Rating | IP20 |
| Operating Ambient Temperature | -10…60 °C |
