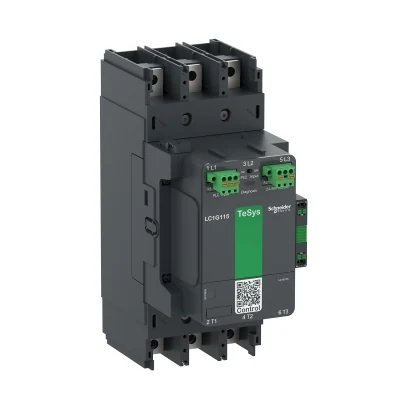

Schneider Electric LC1G185LSEA TeSys Giga Contactor TeSysG185 3P Advanced 200-500V ACDC
- Brand: Schneider Electric
- SKU: LC1G185LSEA
- MPN: LC1G185LSEA
- Price: 48458.48 TRY + VAT · incl. VAT 58150.18 TRY
- Availability: Made to order
- Motor Control Equipment
- Schneider Electric Motor Control Equipment
- Selection guide: Motor Control and Protection Equipment Selection Guide
- Schneider Electric LC1G185LSEA Teknik Veri Föyü (PDF)
Schneider Electric LC1G185LSEA TeSys Giga Contactor TeSysG185 3P Advanced 200-500V ACDC. Technical specifications of this model: Series: TeSys Giga
| Series | TeSys Giga |
|---|---|
| Product Type | Kontaktör |
| Contactor Application | Güç değiştirme; Motor kontrol |
| Utilization Category | AC-1; AC-3; AC-3e; AC-4; AC-5a; AC-5b; AC-6a; AC-6B; AC-8b; AC-8a; DC-1; DC-3; DC-5 |
| Pole Arrangement | 3P |
| Rated Operational Voltage (Ue) | <= 1000 V AC 50/60 Hz; <= 460 V DC |
| Rated Operational Current (Ie) | 305 A (at <40 °C) at <= 1000 V AC-1; 185 A (at <60 °C) at <= 440 V AC-3 |
| Rated Control Circuit Voltage (Uc) | 200…500 V AC 50/60 Hz; 200…500 V DC |
| Control Circuit Voltage Limits | Çalışma: 0.8 Uc Min...1.1 Uc Max (at <60 °C); Düşme: 0.1 Uc Max...0.45 Uc Min (at <60 °C) |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Overvoltage category | III |
| Rated Breaking Capacity | 1610 A at 440 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | 1,5 kA - 10 s; 0,92 kA - 30 s; 0,74 kA - 1 min; 0,5 kA - 3 min; 0,4 kA - 10 min |
| Associated Fuse Rating | 200 A aM, <= 440 V'ta motor için; 160 A aM, <= 690 V'ta motor için; 315 A gG, <= 690 V'ta; 300 A UL Type J, <= 600 V'ta |
| Average Impedance | 0,00017 Ohm |
| Rated Insulation Voltage (Ui) | 1000 V |
| Power Loss per Pole | 20 W AC-1 - Ith 305 A; 6 W AC-3 - Ith 185 A |
| Power Pole Contact Arrangement | 3 NA |
| Auxiliary contact configuration | 1 NA + 1 NK |
| Motor Power (HP) | 50 hp at 200/208 V 60 Hz; 60 hp at 230/240 V 60 Hz; 125 hp at 460/480 V 60 Hz; 150 hp at 575/600 V 60 Hz |
| Coil Technology | Yerleşik çift yönlü tepe noktası sınırlaması |
| Safety Reliability Level (B10d) | B10d = 400000 cycles nominal yüklü kontaktör (EN/ISO 13849-1); B10d = 3000000 cycles mekanik yüklü kontaktör (EN/ISO 13849-1) |
| Mechanical Endurance | 8 Mcycles |
| Inrush Power (VA) | 295 VA |
| Inrush Power (W) | 215 W |
| Hold-in Power Consumption (VA) | 13 VA |
| Hold-in Power Consumption (W) | 8 W |
| Operating Time | 40…70 ms kapama; 15…50 ms açma |
| Maximum Operating Rate (cycles/h) | 600 cyc/h AC-3; 600 cyc/h AC-3e; 300 cyc/h AC-1; 150 cyc/h AC-4 |
| Connection Range | 35 mm |
| Mounting Support | Plaka |
| Certifications | CB Şeması; CCC; cULus; EAC; CE; UKCA; DNV-GL'den EU-RO-MR |
| Tightening Torque | 18 N.m |
| Height | 255 mm |
| Width | 108 mm |
| Depth | 193 mm |
| Product Weight | 4.1 kg |
| IP Rating | IP2X ön yüz kaplar ile (IEC 60529); IP2X ön yüz kaplar ile (VDE 0106) |
| Operating Ambient Temperature | -25…60 °C |
| Storage Temperature | -60…80 °C |
