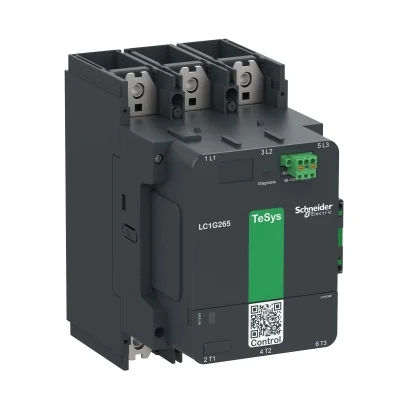

Schneider Electric LC1G265KUEN TeSys Giga Contactor TeSysG265 3P Standard 100-250V ACDC
- Brand: Schneider Electric
- SKU: LC1G265KUEN
- MPN: LC1G265KUEN
- Price: 81965.08 TRY + VAT · incl. VAT 98358.10 TRY
- Availability: Made to order
- Motor Control Equipment
- Schneider Electric Motor Control Equipment
- Selection guide: Motor Control and Protection Equipment Selection Guide
- Schneider Electric LC1G265KUEN Teknik Veri Föyü (PDF)
Schneider Electric LC1G265KUEN TeSys Giga Contactor TeSysG265 3P Standard 100-250V ACDC. Technical specifications of this model: Series: TeSys Giga
| Series | TeSys Giga |
|---|---|
| Product Type | Kontaktör |
| Contactor Application | Güç değiştirme; Motor kontrol |
| Utilization Category | AC-1; AC-3; AC-3e; AC-4; AC-5a; AC-5b; AC-6a; AC-6B; AC-8a; AC-8b; DC-1; DC-3; DC-5 |
| Pole Arrangement | 3P |
| Rated Operational Voltage (Ue) | <= 1000 V AC 50/60 Hz; <= 460 V DC |
| Rated Operational Current (Ie) | 385 A (at <40 °C) at <= 1000 V AC-1; 265 A (at <60 °C) at <= 440 V AC-3 |
| Rated Control Circuit Voltage (Uc) | 100…250 V AC 50/60 Hz; 100…250 V DC |
| Control Circuit Voltage Limits | Çalışma: 0.8 Uc Min...1.1 Uc Max (at <60 °C); Düşme: 0.1 Uc Max...0.45 Uc Min (at <60 °C) |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Overvoltage category | III |
| Conventional Free Air Thermal Current (Ith) | 385 A (at 40 °C) |
| Rated Breaking Capacity | 2380 A at 440 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | 2,2 kA - 10 s; 1,23 kA - 30 s; 0,95 kA - 1 min; 0,62 kA - 3 min; 0,48 kA - 10 min |
| Associated Fuse Rating | 315 A aM, <= 440 V'ta motor için; 250 A aM, <= 690 V'ta motor için; 400 A gG, <= 690 V'ta; 450 A UL Type J, <= 600 V'ta |
| Average Impedance | 0,000144 Ohm |
| Rated Insulation Voltage (Ui) | 1000 V |
| Power Loss per Pole | 20 W AC-1 - Ith 385 A; 11 W AC-3 - Ith 265 A |
| Power Pole Contact Arrangement | 3 NA |
| Auxiliary contact configuration | 1 NA + 1 NK |
| Motor Power (HP) | 75 hp at 200/208 V 60 Hz; 100 hp at 230/240 V 60 Hz; 200 hp at 460/480 V 60 Hz; 200 hp at 575/600 V 60 Hz |
| Rated Making Capacity (Irms) | 3320 A at 440 V |
| Coil Technology | Yerleşik çift yönlü tepe noktası sınırlaması |
| Safety Reliability Level (B10d) | B10d = 400000 cycles nominal yüklü kontaktör (EN/ISO 13849-1); B10d = 3000000 cycles mekanik yüklü kontaktör (EN/ISO 13849-1) |
| Mechanical Endurance | 8 Mcycles |
| Inrush Power (VA) | 700 VA |
| Inrush Power (W) | 645 W |
| Hold-in Power Consumption (VA) | 15 VA |
| Hold-in Power Consumption (W) | 9.1 W |
| Operating Time | 40…70 ms kapama; 15…50 ms açma |
| Maximum Operating Rate (cycles/h) | 600 cyc/h AC-3; 600 cyc/h AC-3e; 300 cyc/h AC-1; 150 cyc/h AC-4; AC-4 |
| Connection Range | 45 mm |
| Mounting Support | Plaka |
| Certifications | CB Şeması; CCC; cULus; EAC; CE; UKCA; DNV-GL'den EU-RO-MR |
| Tightening Torque | 35 N.m |
| Height | 225 mm |
| Width | 140 mm |
| Depth | 226 mm |
| Product Weight | 7 kg |
| IP Rating | IP2X ön yüz kaplar ile (IEC 60529); IP2X ön yüz kaplar ile (VDE 0106) |
