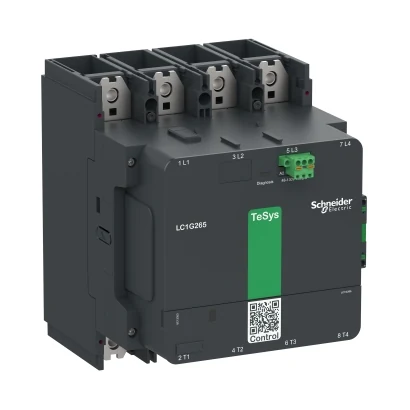

Schneider Electric LC1G3304EHEN TeSys Giga Contactor TeSysG330 4P Standard 48-130V ACDC
- Brand: Schneider Electric
- SKU: LC1G3304EHEN
- MPN: LC1G3304EHEN
- Price: 125079.31 TRY + VAT · incl. VAT 150095.17 TRY
- Availability: Made to order
- Motor Control Equipment
- Schneider Electric Motor Control Equipment
- Selection guide: Motor Control and Protection Equipment Selection Guide
- Schneider Electric LC1G3304EHEN Teknik Veri Föyü (PDF)
Schneider Electric LC1G3304EHEN TeSys Giga Contactor TeSysG330 4P Standard 48-130V ACDC. Technical specifications of this model: Series: TeSys Giga
| Series | TeSys Giga |
|---|---|
| Product Type | Kontaktör |
| Contactor Application | Güç değiştirme |
| Utilization Category | AC-3; AC-3e; AC-1; AC-5a; AC-5b; AC-6a; AC-6B; DC-1; DC-3; DC-5 |
| Pole Arrangement | 4P |
| Rated Operational Voltage (Ue) | <= 1000 V AC 50/60 Hz; <= 460 V DC |
| Rated Operational Current (Ie) | 330 A (at <60 °C) at <= 440 V AC-3; 440 A (at <40 °C) at <= 1000 V AC-1 |
| Rated Control Circuit Voltage (Uc) | 48…130 V AC 50/60 Hz; 48…130 V DC |
| Control Circuit Voltage Limits | Çalışma: 0.8 Uc Min...1.1 Uc Max (at <60 °C); Düşme: 0.1 Uc Max...0.45 Uc Min (at <60 °C) |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Overvoltage category | III |
| Conventional Free Air Thermal Current (Ith) | 440 A (at 40 °C) |
| Rated Breaking Capacity | 2940 A at 440 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | 2,65 kA - 10 s; 1,8 kA - 30 s; 1,3 kA - 1 min; 0,9 kA - 3 min; 0,75 kA - 10 min |
| Associated Fuse Rating | 400 A aM, <= 440 V'ta motor için; 250 A aM, <= 690 V'ta motor için; 500 A gG, <= 690 V'ta; 600 A UL Type L, <= 600 V'ta |
| Average Impedance | 0,000144 Ohm |
| Rated Insulation Voltage (Ui) | 1000 V |
| Power Loss per Pole | 30 W AC-1 - Ith 440 A; 16 W AC-3 - Ith 330 A |
| Power Pole Contact Arrangement | 4 NA |
| Auxiliary contact configuration | 1 NA + 1 NK |
| Rated Making Capacity (Irms) | 3830 A at 440 V |
| Coil Technology | Yerleşik çift yönlü tepe noktası sınırlaması |
| Safety Reliability Level (B10d) | B10d = 400000 cycles nominal yüklü kontaktör (EN/ISO 13849-1); B10d = 3000000 cycles mekanik yüklü kontaktör (EN/ISO 13849-1) |
| Mechanical Endurance | 8 Mcycles |
| Inrush Power (VA) | 780 VA |
| Inrush Power (W) | 695 W |
| Hold-in Power Consumption (VA) | 17.6 VA |
| Hold-in Power Consumption (W) | 7.8 W |
| Operating Time | 40…70 ms kapama; 15…50 ms açma |
| Maximum Operating Rate (cycles/h) | 600 cyc/h AC-3; 600 cyc/h AC-3e; 300 cyc/h AC-1 |
| Connection Range | 45 mm |
| Mounting Support | Plaka |
| Standards | EN/IEC 60947-4-1; EN/IEC 60947-5-1; UL 60947-4-1; CSA C22.2 No 60947-4-1; JIS C8201-4-1; JIS C8201-5-1; UL 60335-1; UL 60335-2-40:Annex JJ |
| Certifications | CB Şeması; CCC; cULus; EAC; CE; UKCA; DNV-GL'den EU-RO-MR |
| Tightening Torque | 35 N.m |
| Height | 225 mm |
| Width | 185 mm |
| Depth | 226 mm |
| Product Weight | 8.3 kg |
| IP Rating | IP2X ön yüz kaplar ile (IEC 60529); IP2X ön yüz kaplar ile (VDE 0106) |
