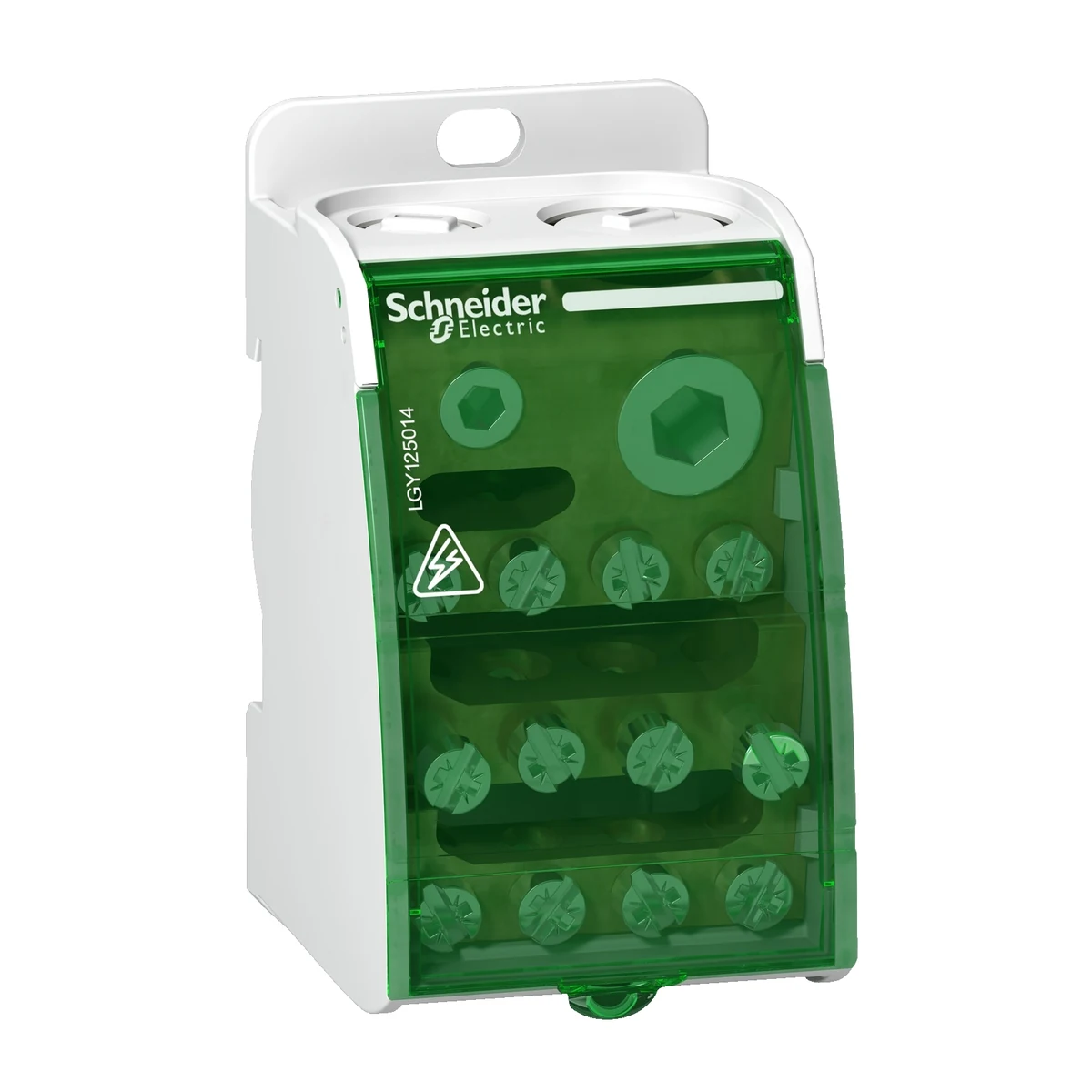

Schneider Electric LGY125014 Screw-Type Distribution Box 1P 250A 14-Hole
- Brand: Schneider Electric
- SKU: LGY125014
- MPN: LGY125014
- Price: 4570.30 TRY + VAT · incl. VAT 5484.36 TRY
- Availability: Made to order
- Busbars and Distribution Blocks
- Schneider Electric Busbars and Distribution Blocks
- Selection guide: Busbars and Distribution Blocks Selection Guide: Technical Criteria and Engineering Practice
- Calculate busbar current-carrying capacity
- Schneider Electric LGY125014 Teknik Veri Föyü (PDF)
Schneider Electric LGY125014 Screw-Type Distribution Box 1P 250A 14-Hole.
| Series | Linergy |
|---|---|
| Product Type | Dağıtım bloğu |
| Mounting Support | DIN rayı |
| Compatible Series | Prisma G; Prisma P; Prisma PH; Yüzeysel; TeSys |
| Compatible Products | Spacial panoları |
| Pole Arrangement | 1P |
| Distribution Block Outputs | 14 delik |
| Rated Operational Voltage (Ue) | 230 V AC Ph/N; 440 V AC Ph/Ph |
| Rated Insulation Voltage (Ui) | 500 V AC |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Operational Current (Ie) | 250 A @ 40 °C |
| Rated Short-Circuit Withstand Current (Ik) | 14,4 kA için 1 sn |
| Number of 9 mm Pitches | 5 |
| Height | 85 mm |
| Width | 45 mm |
| Depth | 50.5 mm |
| Product Weight | 0.252 kg |
| Color | White (RAL 9003) |
| Pollution Degree | 3 |
| Overvoltage category | III |
| Dielectric Strength | 2500 V |
| Standards | EN/IEC 60947-7-1; EN/IEC 61439-1 |
| Operating Ambient Temperature | -25…55 °C |
