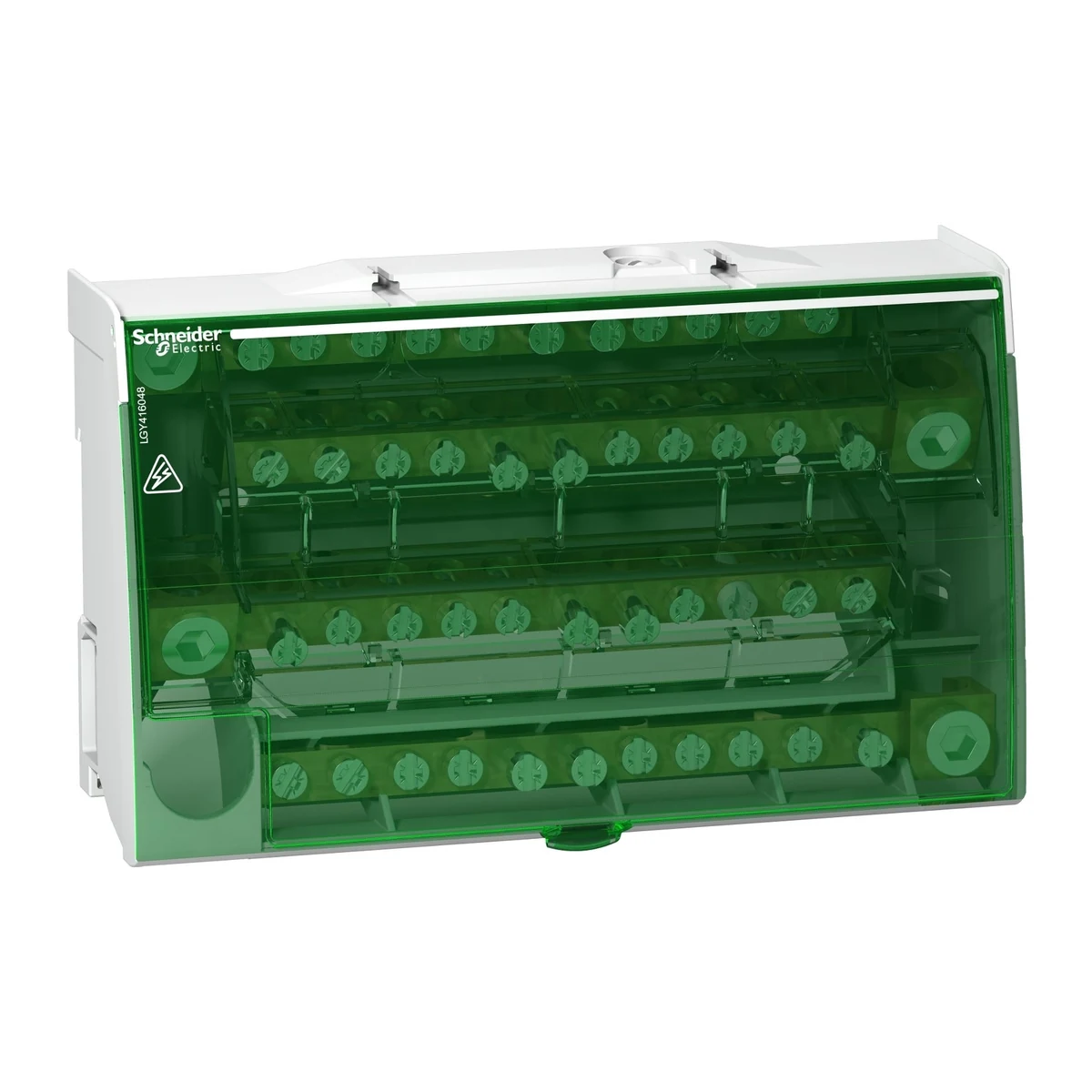

Schneider Electric LGY416048 Screw-Type Distribution Box 4P 160A 48-Hole
- Brand: Schneider Electric
- SKU: LGY416048
- MPN: LGY416048
- Price: 5554.41 TRY + VAT · incl. VAT 6665.29 TRY
- Availability: Made to order
- Busbars and Distribution Blocks
- Schneider Electric Busbars and Distribution Blocks
- Selection guide: Busbars and Distribution Blocks Selection Guide: Technical Criteria and Engineering Practice
- Calculate busbar current-carrying capacity
- Schneider Electric LGY416048 Teknik Veri Föyü (PDF)
Schneider Electric LGY416048 Screw-Type Distribution Box 4P 160A 48-Hole.
| Series | Linergy |
|---|---|
| Product Type | Dağıtım bloğu |
| Mounting Support | DIN rayı |
| Compatible Series | Prisma G; Prisma P; Prisma PH; Prisma Pack; Yüzeysel; Kaedra; Pragma; TeSys |
| Compatible Products | Spacial panoları |
| Pole Arrangement | 4P |
| Distribution Block Outputs | 4x12 delik |
| Rated Operational Voltage (Ue) | 230 V AC Ph/N; 440 V AC Ph/Ph |
| Rated Insulation Voltage (Ui) | 500 V AC |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Operational Current (Ie) | 160 A @ 40 °C |
| Rated Short-Circuit Withstand Current (Ik) | 8,4 kA için 1 sn |
| Number of 9 mm Pitches | 18 |
| Height | 100 mm |
| Width | 162 mm |
| Depth | 50.5 mm |
| Product Weight | 0.557 kg |
| Color | White (RAL 9003) |
| Pollution Degree | 3 |
| Overvoltage category | III |
| Dielectric Strength | 2500 V |
| Standards | EN/IEC 61439-1; EN/IEC 60947-7-1 |
| Operating Ambient Temperature | -25…55 °C |
