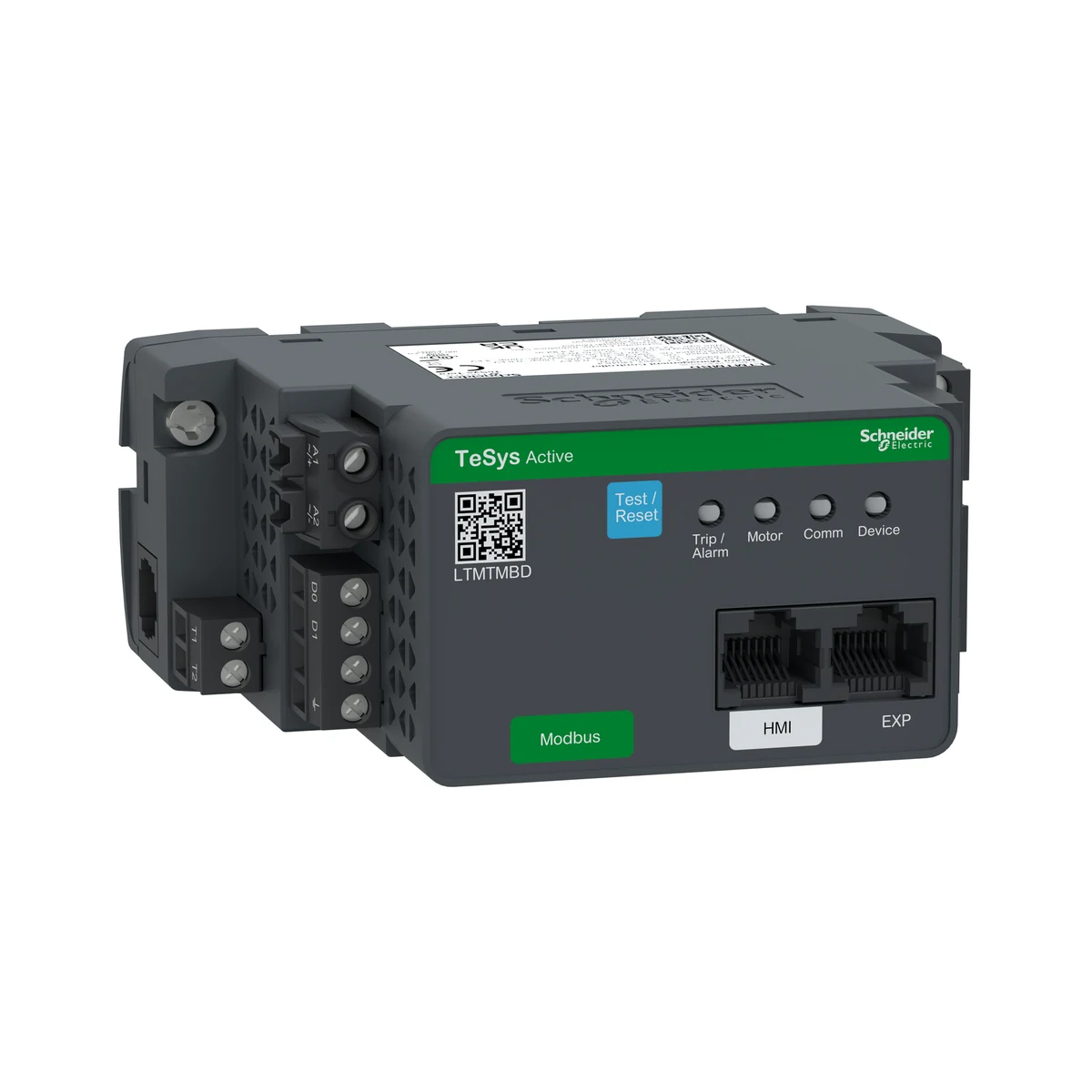

Schneider Electric LTMTMBD TeSys Tera Main Module Modbus 24VDC
- Brand: Schneider Electric
- SKU: LTMTMBD
- MPN: LTMTMBD
- Price: 43959.90 TRY + VAT · incl. VAT 52751.88 TRY
- Availability: Made to order
- Motor Control Equipment
- Schneider Electric Motor Control Equipment
- Selection guide: Motor Control and Protection Equipment Selection Guide
- Schneider Electric LTMTMBD Teknik Veri Föyü (PDF)
Schneider Electric LTMTMBD TeSys Tera Main Module Modbus 24VDC. Technical specifications of this model: Communication Protocol: Modbus Series: TeSys Tera
| Communication Protocol | Modbus |
|---|---|
| Series | TeSys Tera |
| Product Type | Motor kontrolörü |
| Device Application | Ekipman izleme ve kontrolü |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Current Consumption | 56–127 mA |
| Supply Voltage Limits | 18…30 V DC |
| Fieldbus Type | Modbus 2 telli RS 485 arayüz, adresleme 1…247, aktarim hizi 1,2…19,2 kbit/sn,; terminal bloğuile 2 ekranlı bükülmüş çift |
| Rated Insulation Voltage (Ui) | 24 V DC (IEC 60185) |
| Short-Circuit Withstand Strength | 100 kA |
| Overvoltage category | III |
| Rated Impulse Withstand Voltage (Uimp) | 0.8 kV |
| Associated Fuse Rating | 0,5 A GG için kontrol devresi |
| Input current | 7 mA @ 24 V |
| Maximum Operating Rate (cycles/h) | 1800 cyc/h |
| Contact Arrangement | 1 NA + 1 NK hata sinyali; 3 NA |
| Connection Range | Besleme gerilimi için 7,5 mm; diğerleri için 5,0 mm |
| Width | 112 mm |
| Height | 45 mm |
| Depth | 90 mm |
| Web Services | Web sunucusu |
| Standards | EN/IEC 60947-4-1; UL/CSA 60947-4-1 |
| Certifications | UL; IEC; cUL |
| Fire Resistance | 650 °C (IEC 60947-1); 960 °C (UL 94) |
| Operating Ambient Temperature | -20…70 °C |
| Storage Temperature | -40…80 °C |
| Operating Altitude | <= 2000 m değer kaybı olmadan |
| Mechanical Durability | Titreşimler simetrik raya montajlı: 1 Gn, 5…300 Hz (EN/IEC 60068-2-27) |
| IP Rating | IP20 |
