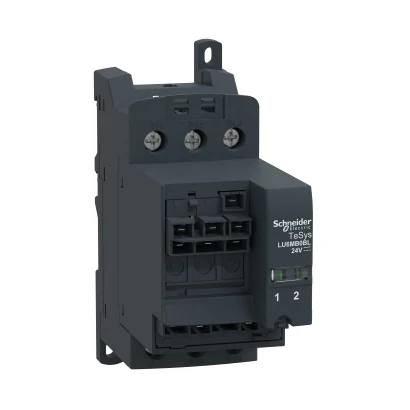

Schneider Electric LU6MB0BL TeSys U Reversing Block 32A 24VDC
- Brand: Schneider Electric
- SKU: LU6MB0BL
- MPN: LU6MB0BL
- Price: 20460.69 TRY + VAT · incl. VAT 24552.83 TRY
- Availability: Made to order
- Motor Control Equipment
- Schneider Electric Motor Control Equipment
- Selection guide: Motor Control and Protection Equipment Selection Guide
- Schneider Electric LU6MB0BL Teknik Veri Föyü (PDF)
Schneider Electric LU6MB0BL TeSys U Reversing Block 32A 24VDC. Technical specifications of this model: Series: TeSys U
| Series | TeSys U |
|---|---|
| Product Type | Değiştirici blok |
| Device Mounting | Ayrı montaj |
| Device Application | Motor kontrolü |
| Rated Operational Current (Ie) | 38 A |
| Rated Control Circuit Voltage (Uc) | 24 V DC |
| Current Consumption | 120 mA @ 24 V DC Kapatırken I maksimum; 120 mA @ 24 V DC I rms sızdırmaz |
| Rated Operational Voltage (Ue) | 690 V AC güç devresi |
| Mains Frequency | 40–60 Hz |
| Operating Time | 150 ms yön değişikliği ile; 75 ms yön değişikliği olmadan |
| Standards | EN 60947-6-2; IEC 60947-6-2; UL 60947-4-1, faz bariyerli; CSA C22.2 No 60947-4-1, faz bariyerli |
| Certifications | CE; UL; CSA; CCC; EAC; ASEFA; ATEX; Denizcilik |
| Rated Insulation Voltage (Ui) | 690 V (IEC 60947-6-2); 600 V (UL 60947-4-1); 600 V (CSA C22.2 No 60947-4-1) |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV (IEC 60947-6-2) |
| Fixing Method | Klipsli (DIN rayı); Vidayla sabit (plaka) |
| Width | 45 mm |
| Height | 115 mm |
| Depth | 113 mm |
| Product Weight | 0.425 kg |
| IP Rating | IP20 (IEC 60947-1 (ön panel ve telle bağlanmış terminaller)); IP20 (IEC 60947-1 (diğer yüzler)); IP40 (IEC 60947-1 (ön panel dış bağlantı bölgesi)) |
| Operating Ambient Temperature | -25…60 °C LUCM'li; -25…70 °C LUCA, LUCB, LUCC, LUCD'li |
| Storage Temperature | -40…85 °C |
| Fire Resistance | 960 °C elektrik yüklü bileşenleri destekleyen parçalar (IEC 60695-2-12); 650 °C (IEC 60695-2-12) |
| Operating Altitude | 2000 m |
| Shock Resistance | 10 gn güç kutbu açık (IEC 60068-2-27); 15 gn güç kutbu kapalı (IEC 60068-2-27) |
| Vibration Resistance | 2 gn (f= 5…300 Hz) güç kutbu açık (IEC 60068-2-27); 4 gn (f= 5…300 Hz) güç kutbu kapalı (IEC 60068-2-27) |
| Electrostatic Discharge Immunity | 8 kV açık havada seviye 3 (IEC 61000-4-2); 8 kV kontakta seviye 4 (IEC 61000-4-2) |
| Radiated Electromagnetic Field Immunity | 10 V/m seviye 3 (IEC 61000-4-3) |
| Fast Transient Immunity (EFT) | 2 kV sinif 3 seri bağlantı (IEC 61000-4-4); 4 kV sinif 4 seri bağlantı hariç tüm devreler (IEC 61000-4-4) |
| Conducted Radio-Frequency Immunity | 10 V (IEC 61000-4-6) |
