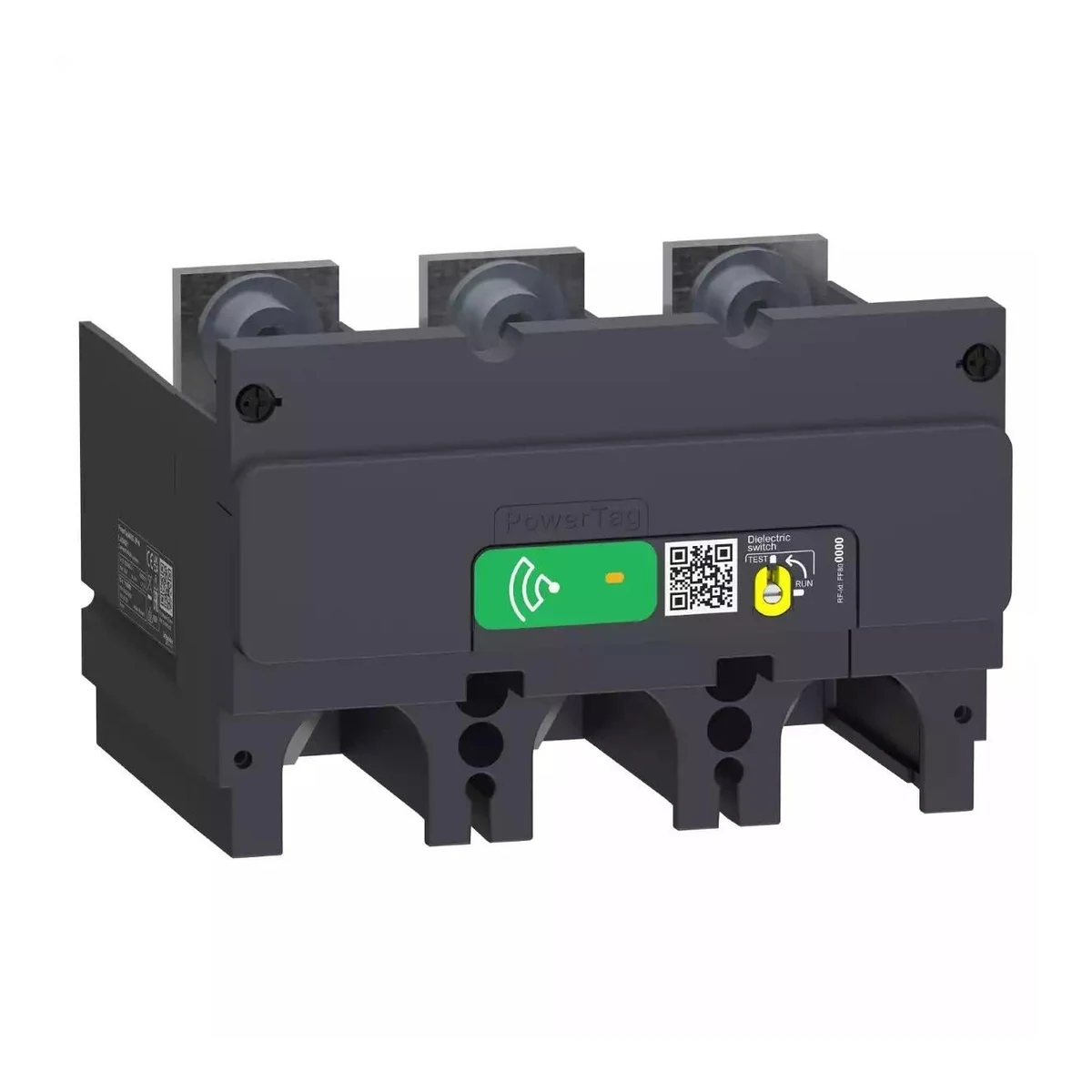

Schneider Electric LV434022 PowerTag NSX Energy M630 3P
- Brand: Schneider Electric
- SKU: LV434022
- MPN: LV434022
- Price: 91739.51 TRY + VAT · incl. VAT 110087.41 TRY
- Availability: Made to order
- Electric Energy Meters
- Selection guide: What Is an Electricity Meter? Energy Meter Selection Guide
- Schneider Electric LV434022 Teknik Veri Föyü (PDF)
Schneider Electric LV434022 PowerTag NSX Energy M630 3P.
| Series | PowerLogic |
|---|---|
| Product Type | Enerji sensörü |
| Pole Arrangement | 3P |
| Maximum Current (Imax) | 630 A |
| Basic Current (Ib) | 100 A |
| Starting Current | 400 mA |
| Saturation Current | 1260 A |
| Application | Adım; Aşırı load alarmı; Güç faktörü; load izleme; Devre izleme |
| Measurement Type | Aktif ve reaktif enerji; Aktif ve reaktif güç; Görünen güç; Akım; Gerilim; Güç faktörü |
| Mounting Position | Alt |
| Mounting Support | Devre kesicide |
| Connection Range | 45 mm |
| Intended Field of Application | Pano |
| Transmission Medium | Radyo frekansı 2,4…2,4835 GHz (IEEE 802.15.4 (11…26)< 5 ms) |
| Maximum Emission Power | 10 mW |
| Mounting Method | Cıvatalı |
| Tightening Torque | 50 N.m |
| Supply Voltage | 230 V AC, +/- %20, faz ve nötr arasında; 400 V AC, +/- %20, fazlar arasında |
| Mains Frequency | 50 Hz; 60 Hz |
| Maximum Power Consumption | 3.7 VA |
| Standards | IEC 61557-12; IEC 61010-1; ETSI EN 301 489-1; IEC 61010-2-030; IEC 61326-1; ETSI EN 300 328 |
| Certifications | IEC; DNV Marine |
| Height | 91 mm |
| Width | 140 mm |
| Depth | 110 mm |
| Product Weight | 800 g |
| Color | Koyu gri (RAL 7016) |
| Quality Labels | CE |
| Operating Altitude | 0–2000 m |
| Operating Ambient Temperature | -25…70 °C |
| Storage Temperature | -50…85 °C |
| Overvoltage category | IV (IEC 61010-1) |
| Measurement Category | Kategori III (IEC 61010-2-030) |
| IP Rating | IP20 |
| IK Impact Protection | IK07 (IEC 60068-2-75 test Ehb) |
| Pollution Degree | 3 |
| Relative Humidity | 0…95 % @ 55 °C (IEC 60721-3-3) |
| Vibration Resistance | 3M4 (IEC 60721-3-3) |
| Environmental Conditions | İç mekan kullanımı |
