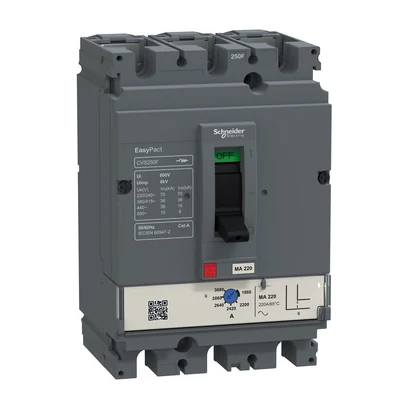

Schneider Electric LV510445 CVS100F MA100 3P3D
- Brand: Schneider Electric
- SKU: LV510445
- MPN: LV510445
- Price: 15234.32 TRY + VAT · incl. VAT 18281.18 TRY
- Availability: Made to order
- Molded Case Circuit Breakers
- Schneider Electric Molded Case Circuit Breakers
- Selection guide: Molded Case Circuit Breakers (MCCB) Selection Guide
- Schneider Electric LV510445 Teknik Veri Föyü (PDF)
Schneider Electric LV510445 CVS100F MA100 3P3D. Technical specifications of this model: Series: EasyPact CVS
| Series | EasyPact CVS |
|---|---|
| Product Type | Circuit Breaker |
| Device Application | Motor |
| Pole Arrangement | 3P |
| Protected Pole Configuration | 3d |
| Earth Leakage Protection (Vigi Add-on) | None |
| Rated Current (In) | 100 A @ 40 °C |
| Current Type | AC |
| Utilization Category | Category A |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 36 kA Icu @ 440 V AC 50/60 Hz (IEC 60947-2); 36 kA Icu @ 380/415 V AC 50/60 Hz (IEC 60947-2); 70 kA Icu @ 220/240 V AC 50/60 Hz (IEC 60947-2) |
| Release Type | MA |
| Trip Unit Technology | Manyetik |
| Trip Unit Rating | 100 A @ 40 °C |
| Protection Type | Kısa devre koruması (manyetik) |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV (EN/IEC 60947-2) |
| Mains Frequency | 50/60 Hz |
| Rating Code | F |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 18 kA @ 440 V AC 50/60 Hz (IEC 60947-2); 36 kA @ 380/415 V AC 50/60 Hz (IEC 60947-2); 70 kA @ 220/240 V AC 50/60 Hz (IEC 60947-2) |
| Mechanical Endurance | 30000 cycles |
| Electrical Endurance | 12000 cycles 415 V In (IEC 60947-2) |
| Control Type | Feed-through |
| Instantaneous Pick-up Adjustment Type (Ii) | Adjustable |
| Instantaneous Pick-up Adjustment Range (Ii) | 6…14 x In |
| Contact Position Indication | Yes |
| Mounting Support | Backplate |
| Mounting Type | Fixed |
| Top Connection | Front |
| Bottom Connection | Front |
| Connection Terminals | Screw connection |
| Connection Range | 35 mm |
| Width | 105 mm |
| Depth | 86 mm |
| Height | 161 mm |
| Product Weight | 1.5 kg |
| Standards | IEC 60947-2; EN 60947-2 |
| Certifications | IEC; GOST |
| Electric Shock Protection Class | Class II |
| Pollution Degree | 3 (IEC 60664-1) |
| IP Rating | IP40 |
| Operating Ambient Temperature | -25…70 °C |
