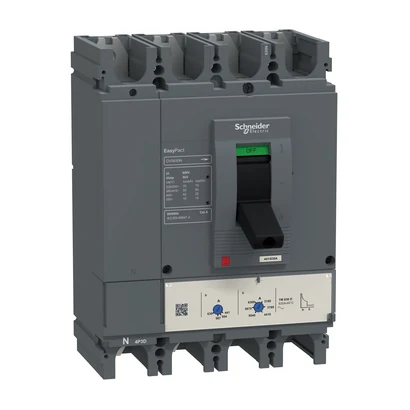

Schneider Electric LV540318 CVS400N TM320D 4P3D
- Brand: Schneider Electric
- SKU: LV540318
- MPN: LV540318
- Price: 68832.43 TRY + VAT · incl. VAT 82598.92 TRY
- Availability: Made to order
- Molded Case Circuit Breakers
- Schneider Electric Molded Case Circuit Breakers
- Selection guide: Molded Case Circuit Breakers (MCCB) Selection Guide
- Schneider Electric LV540318 Teknik Veri Föyü (PDF)
Schneider Electric LV540318 CVS400N TM320D 4P3D. Technical specifications of this model: Series: EasyPact CVS
| Series | EasyPact CVS |
|---|---|
| Product Type | Circuit Breaker |
| Device Application | Distribution |
| Pole Arrangement | 4P |
| Protected Pole Configuration | 3d |
| Earth Leakage Protection (Vigi Add-on) | None |
| Rated Current (In) | 320 A @ 40 °C |
| Current Type | AC |
| Utilization Category | Category A |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 70 kA Icu @ 220/240 V AC 50/60 Hz (IEC 60947-2); 50 kA Icu @ 380/415 V AC 50/60 Hz (IEC 60947-2); 42 kA Icu @ 440 V AC 50/60 Hz (IEC 60947-2) |
| Release Type | TM-D |
| Trip Unit Technology | Termik Manyetik |
| Trip Unit Rating | 320 A @ 40 °C |
| Protection Type | Kısa devre koruması (manyetik); Aşırı load koruma (termik) |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV (EN/IEC 60947-2) |
| Mains Frequency | 50/60 Hz |
| Rating Code | N |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 70 kA @ 220/240 V AC 50/60 Hz (IEC 60947-2); 50 kA @ 380/415 V AC 50/60 Hz (IEC 60947-2); 32 kA @ 440 V AC 50/60 Hz (IEC 60947-2) |
| Neutral Position | Sol |
| Mechanical Endurance | 15000 cycles |
| Electrical Endurance | 6000 cycles 415 V In (IEC 60947-2) |
| Control Type | Feed-through |
| Thermal current setting range | 224–320 A |
| Neutral Protection Setting | Korumasız (3d) |
| Long-Time Pick-up Adjustment Type (Ir) | Adjustable |
| Long-Time Pick-up Adjustment Range (Ir) | 0,7…1 x In |
| Long-Time Delay Adjustment Type (tr) | Fixed |
| Instantaneous Pick-up Adjustment Type (Ii) | Adjustable |
| Instantaneous Pick-up Adjustment Range (Ii) | 5…10 x In |
| Contact Position Indication | Yes |
| Mounting Support | Backplate |
| Mounting Type | Fixed |
| Top Connection | Front |
| Bottom Connection | Front |
| Connection Terminals | Screw connection |
| Connection Range | 45 mm |
| Width | 185 mm |
| Depth | 110 mm |
| Height | 255 mm |
| Product Weight | 6.3 kg |
