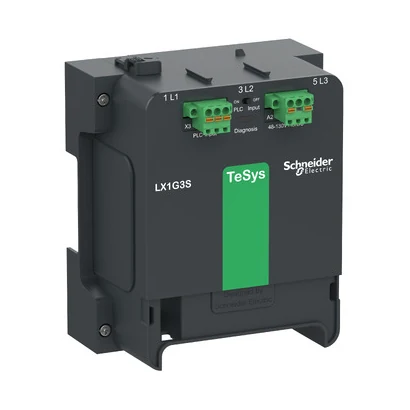

Schneider Electric LX1G3SLSEA TeSys Giga Control Module 200-500V ADV 3P G400/500
- Brand: Schneider Electric
- SKU: LX1G3SLSEA
- MPN: LX1G3SLSEA
- Price: 40690.64 TRY + VAT · incl. VAT 48828.77 TRY
- Availability: Made to order
- Motor Control Equipment
- Schneider Electric Motor Control Equipment
- Selection guide: Motor Control and Protection Equipment Selection Guide
- Schneider Electric LX1G3SLSEA Teknik Veri Föyü (PDF)
Schneider Electric LX1G3SLSEA TeSys Giga Control Module 200-500V ADV 3P G400/500. Technical specifications of this model: Series: TeSys Giga
| Series | TeSys Giga |
|---|---|
| Product Type | Kontaktör bobini |
| Pole Arrangement | 3P |
| Compatible Series | TeSys G LX1G kontaktör bobini |
| Compatible Products | LC1G400…500 |
| Rated Control Circuit Voltage (Uc) | 200…500 V AC/DC 50/60 Hz |
| Operating Time | 20…35 msn açma; 40…55 ms kapama |
| Mechanical Endurance | 5 Mcycles |
| Coil Technology | Yerleşik çift yönlü tepe noktası sınırlaması |
| Inrush Power (VA) | 400 VA @ 480 V AC, 60 Hz |
| Inrush Power (W) | 260,0 W DC |
| Hold-in Power Consumption (VA) | 14,9 VA @ 480 V AC, 60 Hz |
| Hold-in Power Consumption (W) | 4,8 W için DC ag |
| IP Rating | IP20 |
| Operating Altitude | 3000 m olmadan; 5000 m değer kaybı faktörü ile |
| Standards | EN/IEC 60947-4-1; UL 60947-4-1A; CSA C22.2 No 60947-4-1 |
| Pollution Degree | 3 (IEC 60947-1) |
| Operating Ambient Temperature | -25…60 °C |
| Storage Temperature | -60…80 °C |
| Width | 140 mm |
| Depth | 93 mm |
