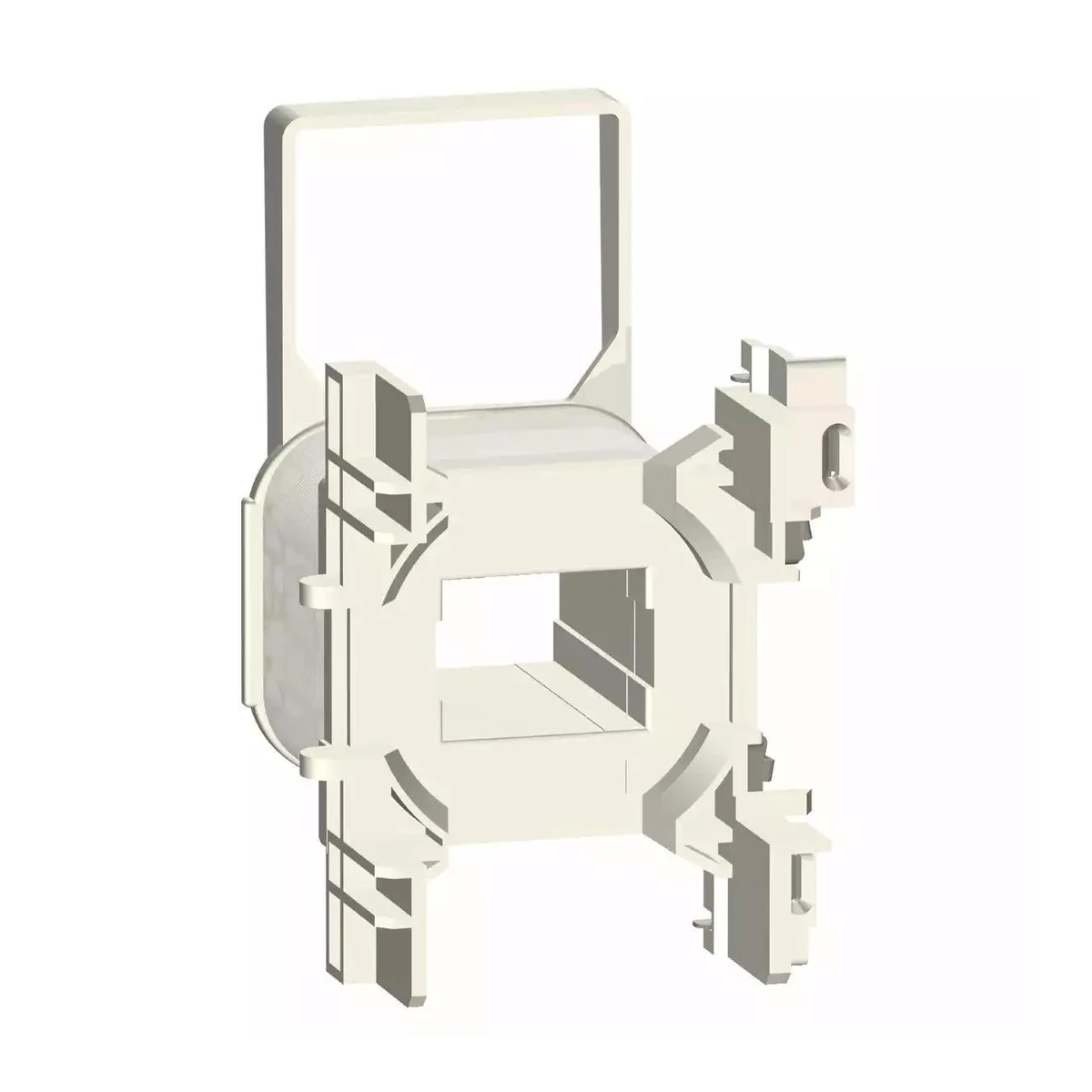

Schneider Electric LXD3E7 TeSys Deca Contactor Coil 40-65A 48VAC
- Brand: Schneider Electric
- SKU: LXD3E7
- MPN: LXD3E7
- Price: 3386.02 TRY + VAT · incl. VAT 4063.22 TRY
- Availability: Made to order
- Contactor Accessories
- Schneider Electric Contactor Accessories
- Selection guide: Contactor Accessories Selection Guide
- Schneider Electric LXD3E7 Teknik Veri Föyü (PDF)
Schneider Electric LXD3E7 TeSys Deca Contactor Coil 40-65A 48VAC. Technical specifications of this model: Coil Voltage: 48VAC Series: TeSys Deca
| Coil Voltage | 48 V AC |
|---|---|
| Series | TeSys Deca |
| Product Type | Kontaktör bobini |
| Control Circuit Type | AC @ 50/60 Hz |
| Rated Control Circuit Voltage (Uc) | 48 V AC 50/60 Hz |
| Average Resistance | 7,97 Ohm @ 20 °C |
| Closed-Circuit Inductance | 0,48 H |
| Compatible Products | LC1DT60A; LC1D40A...D65A; LC1DT80A |
| Mechanical Endurance | 6 Mcycles |
| Maximum Operating Rate (cycles/h) | 3600 cyc/h @ <60 °C |
| Coil Technology | Yerleşik süpresör modülü olmadan |
| Control Circuit Voltage Limits | Düşme: 0,3…0,6 Uc at 50/60 Hz (at <60 °C); Çalışma: 0,8…1,1 Uc at 50 Hz (at <60 °C); Çalışma: 0,85…1,1 Uc at 60 Hz (at <60 °C) |
| Inrush Power (VA) | 160 VA 60 Hz cos phi 0,75 (at 20 °C); 160 VA 50 Hz cos phi 0,75 (at 20 °C) |
| Hold-in Power Consumption (VA) | 15 VA 60 Hz cos phi 0,3 (at 20 °C); 15 VA 50 Hz cos phi 0,3 (at 20 °C) |
| Heat Dissipation | 4…5 W @ 50/60 Hz |
| Operating Ambient Temperature | -5…60 °C |
| Product Weight | 0.07 kg |
