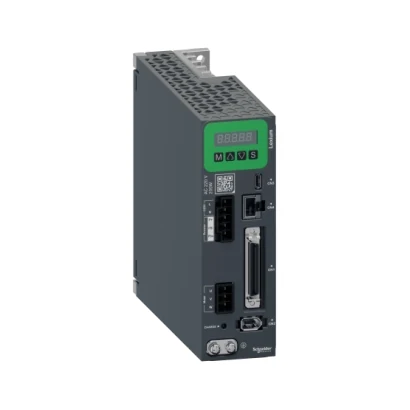

Schneider Electric LXM18PDU02M2X Lexium18 Servo Drive, PTI/Main/MB, 200w 1~220
- Brand: Schneider Electric
- SKU: LXM18PDU02M2X
- MPN: LXM18PDU02M2X
- Price: 32692.62 TRY + VAT · incl. VAT 39231.14 TRY
- Availability: Made to order
- Servo Drives
- Schneider Electric Servo Drives
- Selection guide: Servo Drives Selection Guide
- Schneider Electric LXM18PDU02M2X Teknik Veri Föyü (PDF)
Schneider Electric LXM18PDU02M2X Lexium18 Servo Drive, PTI/Main/MB, 200w 1~220. Technical specifications of this model: Series: Lexium18
| Series | Lexium 18 |
|---|---|
| Product Type | Hareket servo sürücü |
| Drive Form Factor | Kompakt gövde |
| Line Current | 2,7 A, THDI 205,04 % @ 220…240 V, monofaze |
| Number of Phases | 1-Phase |
| Rated Control Supply Voltage (Us) | 220…240 V (% - 15…10) için monofaze |
| Supply Voltage Limits | 170…255 V monofaze |
| Mains Frequency | 50…60 Hz - 5…5 % |
| Continuous Output Current | 1,6 A @ 8 kHz |
| Peak Output Current (3 s) | 5.9 A |
| Rated Power | 0,2 kW @ 220…240 V 8 kHz |
| Switching Frequency | 8 kHz |
| Number of Analog Inputs | 2 |
| Communication Interface | Modbus, entegre; Digital I/O, entegre; Analog I/O, entegre; PTI, entegre; PTO, entegre |
| Width | 155.5 mm |
| Height | 48 mm |
| Depth | 166.5 mm |
| Product Weight | 1.19 kg |
| EMC Filter | EMC filtresi olmadan |
| IP Rating | IP20 |
| Operating Ambient Temperature | -5…45 °C |
| Operating Altitude | 0–1000 m |
