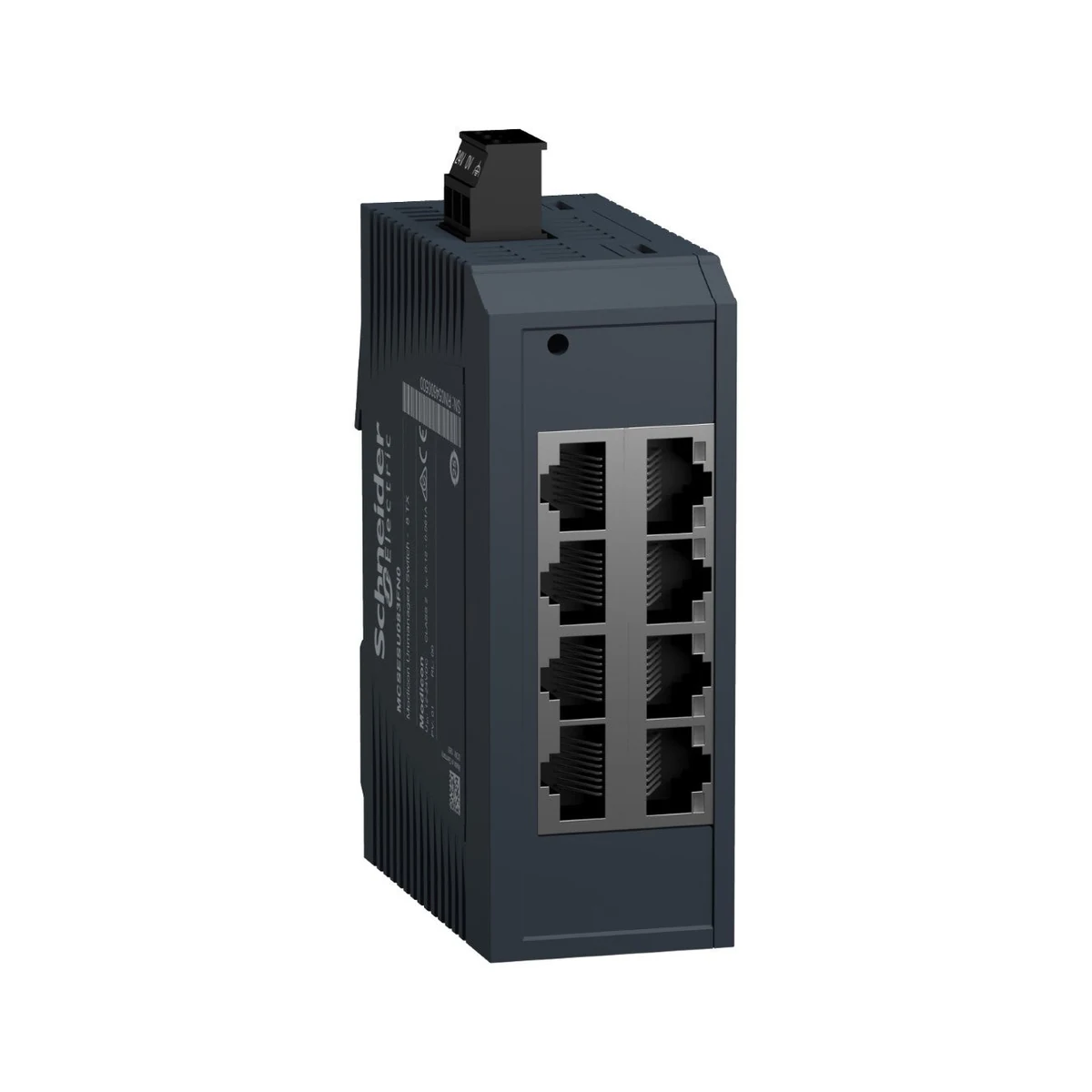

Schneider Electric MCSESU083FN0 Modicon Unmanaged Switch - 8TX
- Brand: Schneider Electric
- SKU: MCSESU083FN0
- MPN: MCSESU083FN0
- Price: 30524.24 TRY + VAT · incl. VAT 36629.09 TRY
- Availability: Made to order
- Industrial Ethernet Switches
- Schneider Electric Industrial Ethernet Switches
- Selection guide: Industrial Ethernet Switches Selection Guide: Technical Criteria & Application Standards
Schneider Electric MCSESU083FN0 Modicon Unmanaged Switch - 8TX. Technical specifications of this model: Concept: Transparent Ready Series: Modicon Nominal Operating Ambient Temperature: 0-60 °C Ethernet Port: 10/100BASE-TX - 8 port(s) copper cable Supply Voltage Limits: 9.6-32 V DC SELV Relative Humidity: 10-95 % non-condensing Mounting Support: 35 mm symmetrical DIN rail Width: 38 mm Marking: CE,UL,RCM Product Weight: 0.15 kg Rated Supply Voltage: 12...24 V Transmission Support Medium: shielded twisted pair cable, copper cable for CAT 5E Maximum Number of Sequential Switches: unlimited Product Type: Modicon Directives: 2014/35/EU - low voltage direktifi,2014/30/EU - electromagnetic compatibility Ethernet Cabling System: TF switches Maximum cable distance between devices: 100 m copper cable Height: 102 mm Depth: 79 mm Power Consumption: 1.5 W
| Rated Supply Voltage | 12–24 V |
|---|---|
| Maximum Cable Distance Between Devices | 100 m bakır kablo |
| Relative Humidity | 10-95 % yoğuşmasız |
| Supply Voltage Limits | 9.6-32 V DC SELV |
| Depth | 79 mm |
| Directives | 2014/35/EU - alçak gerilim direktifi,2014/30/EU - elektromanyetik uyumluluk |
| Ethernet Cabling System | TF anahtarları |
| Width | 38 mm |
| Power Consumption | 1.5 W |
| Transmission Support Medium | bükülmüş ekranlı çift kablosu CAT 5E için bakır kablo |
| Marking | CE,UL,RCM |
| Concept | Transparent Ready |
| Maximum Number of Sequential Switches | sınırsız |
| Mounting Support | 35 mm simetrik DIN rayı |
| Nominal Operating Ambient Temperature | 0-60 °C |
| Ethernet Port | 10/100BASE-TX - 8 port(lar) bakır kablo |
| Series | Modicon |
| Product Weight | 0.15 kg |
| Product Type | Modicon |
| Height | 102 mm |
