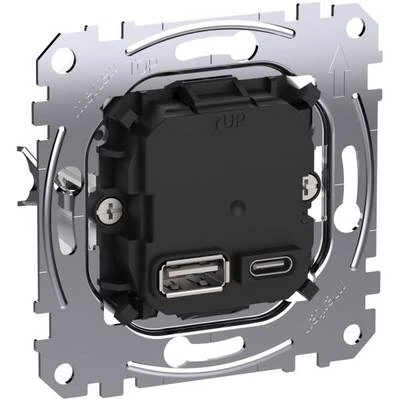

Schneider Electric MEG4366-0120 Merten, Type A+C USB 45W Fast Charging Socket Mechanism
- Brand: Schneider Electric
- SKU: MEG4366-0120
- GTIN: 4042811232399
- MPN: MEG4366-0120
- Price: 4770.45 TRY + VAT · incl. VAT 5724.54 TRY
- Availability: Made to order
- USB Charging Sockets
- Schneider Electric USB Charging Sockets
- Selection guide: USB Charging Sockets Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric MEG4366-0120 Teknik Veri Föyü (PDF)
Schneider Electric MEG4366-0120 Merten, Type A+C USB 45W Fast Charging Socket Mechanism. Technical specifications of this model: Series: Merten Mechanisms
| Series | Merten mekanizmalar |
|---|---|
| Product Type | USB şarj cihazı |
| Device Presentation | Sabitleme çerçeveli mekanizma |
| Compatible Products | Cep telefonu/tablet Mac iOS; Cep telefonu/tablet Android; Cep telefonu/tablet Windows |
| Number of sockets | 2 |
| Enclosure Construction | Flush-mounted |
| USB Power Supply Type | USB Tip A + C |
| Output Current | 3 A |
| Rated Operational Voltage (Ue) | 220 - 240 V AC ± %10 (50/60 Hz’de) |
| Rated Current (In) | 180 mA |
| Efficiency | 95 |
| Power Consumption (W) | 0.08 W |
| Rated Output Power | 45 W |
| Output Voltage | 5 V DC 2,4 A; 5 - 24 V DC 3 A |
| Service Life (Hours) | 30000 h 12 W; 30000 h 0,07 W |
| Number of Terminals | 2 vidalı terminal |
| Terminal Connection Capacity | 2 x 0,75 - 2 x 2,5 mm² (tek telli kablo); 2 x 0,75 - 2 x 2,5 mm² (esnek kablo); 2 x 0,75 - 2 x 2,5 mm² (çok telli kablo) |
| Cable Stripping Length | 7 mm |
| Material | PC (Polikarbonat) GF10 FR: gövde; PC (Polikarbonat) GF10 FR: iç kapak |
| Protection Type | Elektronik aşırı load ve sıcaklık koruması |
| Fixing Method | Vida ve pençe ile |
| Insulation Class | Class II |
| Height | 71 mm |
| Width | 71 mm |
| Directives | 2004/108/EC - elektromanyetik uyumluluk; 2006/95/EC - alçak gerilim direktifi |
| Certifications | EAC; CE |
| IK Impact Protection | IK03 |
| IP Rating | IP20 |
