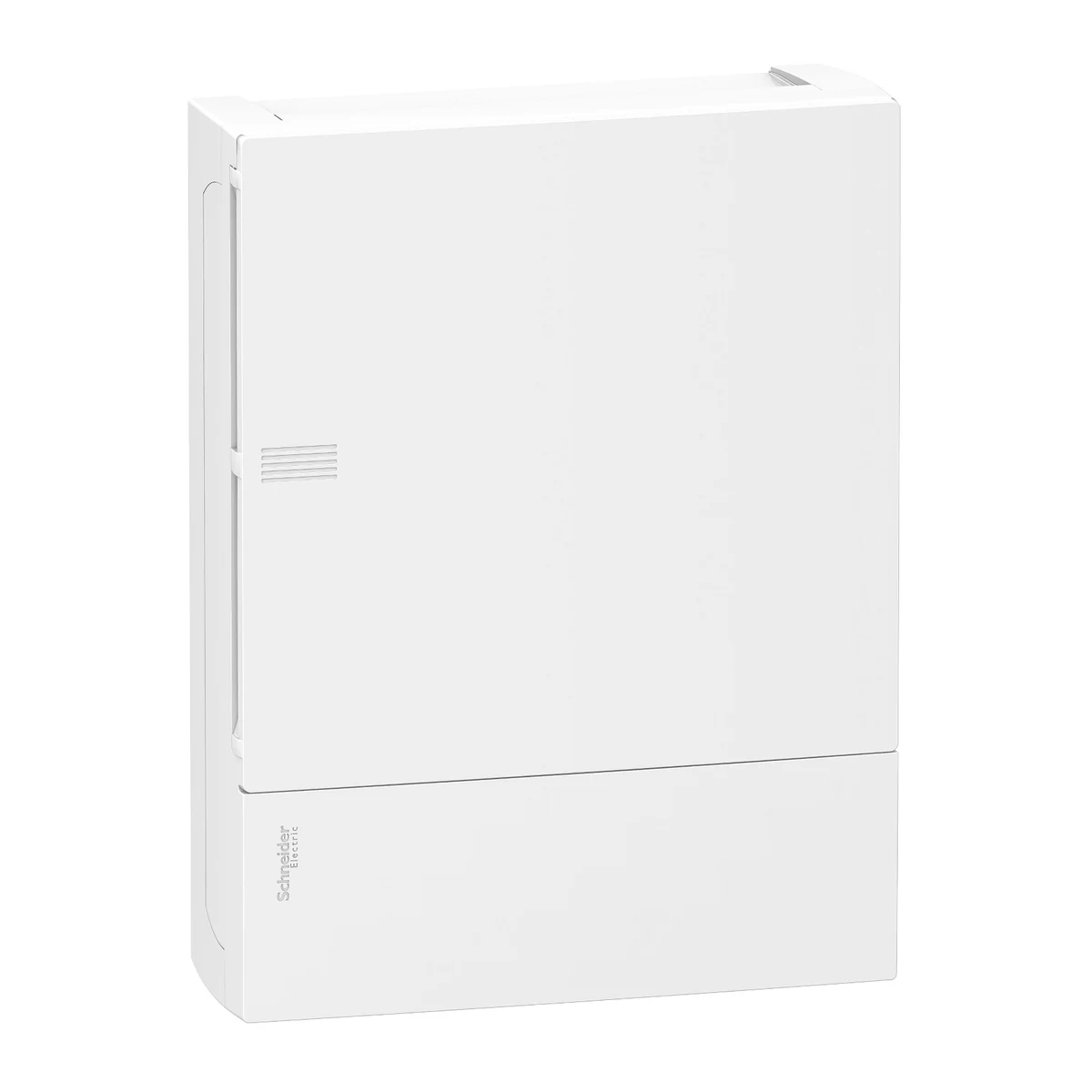

Schneider Electric MIP10312 Mini Pragma 3x12 module surface-mounted opaque cover
- Brand: Schneider Electric
- SKU: MIP10312
- MPN: MIP10312
- Price: 4998.41 TRY + VAT · incl. VAT 5998.09 TRY
- Availability: Made to order
- Opaque Cover MCB Panels
- Schneider Electric Opaque Cover MCB Panels
- Selection guide: Opaque Cover MCB Panels Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric MIP10312 Teknik Veri Föyü (PDF)
Schneider Electric MIP10312 Mini Pragma 3x12 module surface-mounted opaque cover. Technical specifications of this model: Cover Type: Opaque Series: Mini Pragma
| Cover Type | Opak |
|---|---|
| Series | Mini Pragma |
| Product Type | Muhafaza |
| Enclosure Construction | Modüler muhafaza |
| Number of 18 mm Modules per Row | 12 |
| Number of Horizontal Rows | 3 |
| Door Type | Düz |
| Width | Dış: 268 mm |
| Height | Dış: 478 mm |
| Depth | Dış : 102 mm |
| Enclosure Mounting | Yüzey |
| Number of 9 mm Pitches | 24 |
| Total Number of 18 mm Modules | 36 |
| Rated Current (In) | 63 A |
| Rail Type | 35 mm asimetrik ray |
| Mounting plate | Montaj plakası olmadan |
| Cable Entry | 1 kanal flanşı; 1 çıplak flanş |
| Terminal Block Function | None |
| Housing Material | Geri parça: teknoplastik; Kapı: teknoplastik; Ön yüz: teknoplastik |
| Interior Depth | 80 mm |
| Color | Kapı: beyaz (RAL 9003); Ön yüz: beyaz (RAL 9003) |
| Standards | IEC 60670-1; IEC 60670-24 |
| Quality Labels | IMQ |
| Fire Resistance | Kapı: 650 °C; Geri parça: 650 °C; Ön yüz: 650 °C |
| IP Rating | IP40 |
| IK Impact Protection | IK07 |
| Operating Ambient Temperature | -25…60 °C |
