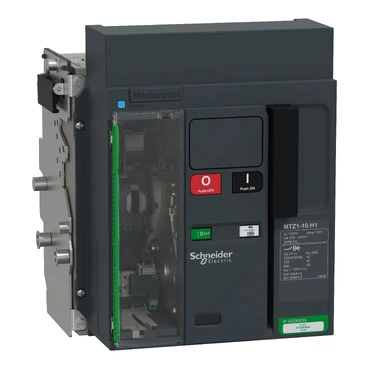

Schneider Electric MTZ110_H12E3PMDHH MTZ1 Active H1 1000A 3P Drawout 2E
- Brand: Schneider Electric
- SKU: MTZ110_H12E3PMDHH
- MPN: MTZ110_H12E3PMDHH
- Price: 331040.61 TRY + VAT · incl. VAT 397248.73 TRY
- Availability: Made to order
- Open Type Power Circuit Breakers
- Schneider Electric Open Type Power Circuit Breakers
- Selection guide: Open Type Power Circuit Breakers (ACB) Selection Guide
- Schneider Electric MTZ110_H12E3PMDHH Teknik Veri Föyü (PDF)
Schneider Electric MTZ110_H12E3PMDHH MTZ1 Active H1 1000A 3P Drawout 2E. Technical specifications of this model: Rated Current: 1000A Pole arrangement: 3P
| Rated Current | 1000 A |
|---|---|
| Pole Arrangement | 3P |
| Series | MasterPacT |
| Product Type | Circuit Breaker |
| Device Application | Power distribution |
| Protected Pole Configuration | 3P 3d |
| Rated Current (In) | 1000 A @ 40 °C |
| Performance Type | H1 42 kA 415 V AC |
| Rated Operational Voltage (Ue) | 690 V AC 50/60 Hz |
| Suitable for Isolation | Yes (EN/IEC 60947-2) |
| Selectivity Category | Category B |
| Control Type | Manuel işletimli; AÇMA/KAPAMA push-butonu |
| Mounting Type | Withdrawable |
| Release Type | MicroLogic Active 2.0 E |
| Trip Unit Technology | Elektronik |
| Protection Functions | LI |
| Sensor Rating | 400 A; 630 A; 800 A; 1000 A |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 42 kA @ 220/415 V AC 50/60 Hz; 42 kA @ 440 V AC 50/60 Hz; 42 kA @ 525 V AC 50/60 Hz; 42 kA @ 690 V AC 50/60 Hz |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 42 kA @ 220/415 V AC 50/60 Hz; 42 kA @ 440 V AC 50/60 Hz; 42 kA @ 525 V AC 50/60 Hz; 42 kA @ 690 V AC 50/60 Hz |
| Rated Short-time Withstand Current Low Voltage (Icw) | 42 kA 0,5 sn; 42 kA 1 sn; 24 kA 3 s |
| Rated Short-Circuit Making Capacity (Icm) | 88 kA @ 220/415 V AC 50/60 Hz; 88 kA @ 440 V AC 50/60 Hz; 88 kA @ 525 V AC 50/60 Hz; 88 kA @ 690 V AC 50/60 Hz |
| Rated Insulation Voltage (Ui) | 1000 V AC 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Power Loss (W) | 150 W |
| Power Loss per Pole | 50 W |
| Maximum Breaking Time | 25 ms |
| Maximum Closing Response Time | 50 ms |
| Mounting Support | Taban plakası; Raylar |
| Top Connection | Horizontal; Arka |
| Bottom Connection | Horizontal; Arka |
| Mechanical Endurance | 12500 cycles bakım ile |
| Electrical Endurance | 6000 cycles 440 V AC 50/60 Hz (EN/IEC 60947-2); 3000 cycles 690 V AC 50/60 Hz (EN/IEC 60947-2) |
| Protection Type | Aşırı load koruma (uzun süreli) (ANSI 49); Anlık kısa devre koruması (ANSI 50) |
| Trip Unit Rating | 250 A; 400 A; 630 A; 800 A; 1000 A; 1250 A; 1600 A; 2000 A; 2500 A; 3200 A; 4000 A; 5000 A; 6300 A |
| Long-Time Pick-up Adjustment Range (Ir) | 0,4…1 x In adjustable in step of 1 A |
| Long-Time Delay Adjustment Type (tr) | 0,5 s adımla ayarlanabilir |
| Long-Time Delay Adjustment Range (tr) | 0,5…24 s @ 6 x Ir |
| Thermal Memory | Yes |
| Instantaneous Pick-up Adjustment Type (Ii) | Adjustable |
| Instantaneous Pick-up Adjustment Range (Ii) | 1,5…10 x Ir adjustable in step of 0.1 x Ir |
