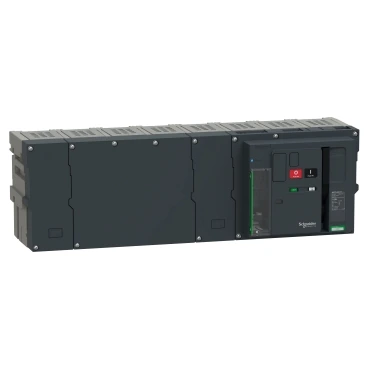

Schneider Electric MTZ340_H12E4PMDHH MTZ3 Active H1 4000A 4P Drawout 2E
- Brand: Schneider Electric
- SKU: MTZ340_H12E4PMDHH
- MPN: MTZ340_H12E4PMDHH
- Price: 1619230.06 TRY + VAT · incl. VAT 1943076.07 TRY
- Availability: Made to order
- Open Type Power Circuit Breakers
- Schneider Electric Open Type Power Circuit Breakers
- Selection guide: Open Type Power Circuit Breakers (ACB) Selection Guide
- Schneider Electric MTZ340_H12E4PMDHH Teknik Veri Föyü (PDF)
Schneider Electric MTZ340_H12E4PMDHH MTZ3 Active H1 4000A 4P Drawout 2E. Technical specifications of this model: Rated Current: 4000A Pole arrangement: 4P
| Rated Current | 4000 A |
|---|---|
| Pole Arrangement | 4P |
| Series | MasterPacT |
| Product Type | Circuit Breaker |
| Device Application | Power distribution |
| Protected Pole Configuration | 4P 4d; 4P 3d + N/2; 4P 3d + OSN; 4P 3d |
| Neutral Position | Sol |
| Rated Current (In) | 4000 A @ 40 °C |
| Performance Type | H1 100 kA 415 V AC |
| Rated Operational Voltage (Ue) | 690 V AC 50/60 Hz |
| Suitable for Isolation | Yes (EN/IEC 60947-2) |
| Selectivity Category | Category B |
| Control Type | Manuel işletimli; AÇMA/KAPAMA push-butonu |
| Mounting Type | Withdrawable |
| Release Type | MicroLogic Active 2.0 E |
| Trip Unit Technology | Elektronik |
| Protection Functions | LI |
| Sensor Rating | 2000 A; 2500 A; 3200 A; 4000 A |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 100 kA @ 220/415 V AC 50/60 Hz; 100 kA @ 440 V AC 50/60 Hz; 100 kA @ 525 V AC 50/60 Hz; 100 kA @ 690 V AC 50/60 Hz |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 100 kA @ 220/415 V AC 50/60 Hz; 100 kA @ 440 V AC 50/60 Hz; 100 kA @ 525 V AC 50/60 Hz; 100 kA @ 690 V AC 50/60 Hz |
| Rated Short-time Withstand Current Low Voltage (Icw) | 100 kA 0,5 sn; 100 kA 1 sn; 100 kA 3 s |
| Rated Short-Circuit Making Capacity (Icm) | 220 kA @ 220/415 V AC 50/60 Hz; 220 kA @ 440 V AC 50/60 Hz; 220 kA @ 525 V AC 50/60 Hz; 220 kA @ 690 V AC 50/60 Hz |
| Rated Insulation Voltage (Ui) | 1000 V AC 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Power Loss (W) | 600 W |
| Power Loss per Pole | 150 W |
| Maximum Breaking Time | 25 ms |
| Maximum Closing Response Time | 80 ms |
| Mounting Support | Taban plakası; Raylar |
| Top Connection | Horizontal; Arka |
| Bottom Connection | Horizontal; Arka |
| Mechanical Endurance | 10000 cycles bakım ile |
| Electrical Endurance | 1500 cycles 440 V AC 50/60 Hz (EN/IEC 60947-2); 1500 cycles 690 V AC 50/60 Hz (EN/IEC 60947-2) |
| Protection Type | Aşırı load koruma (uzun süreli) (ANSI 49); Anlık kısa devre koruması (ANSI 50) |
| Trip Unit Rating | 250 A; 400 A; 630 A; 800 A; 1000 A; 1250 A; 1600 A; 2000 A; 2500 A; 3200 A; 4000 A; 5000 A; 6300 A |
| Long-Time Pick-up Adjustment Range (Ir) | 0,4…1 x In adjustable in step of 1 A |
| Long-Time Delay Adjustment Type (tr) | 0,5 s adımla ayarlanabilir |
| Long-Time Delay Adjustment Range (tr) | 0,5…30 s @ 6 x Ir |
| Thermal Memory | Yes |
| Neutral Protection Setting | 1 x Ir (4P 4d); 0,5 x Ir (4P 3d + N/2); 1,6 x Ir (4P 3d + OSN); Korumasız (4P 3d) |
