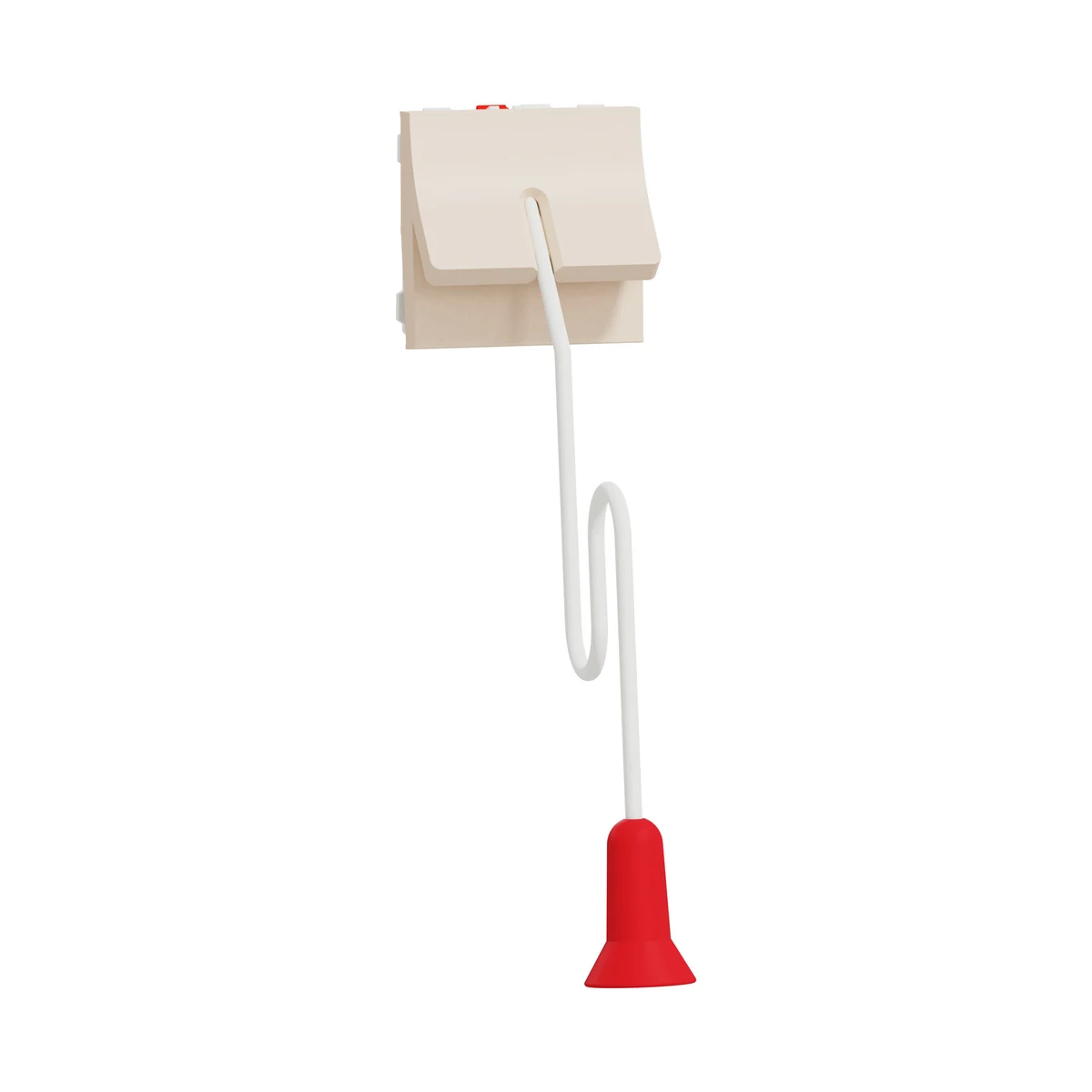

Schneider Electric NU322644 Yeni Unica, Pull-Cord Push Button 2 module, Cream
- Brand: Schneider Electric
- SKU: NU322644
- MPN: NU322644
- Price: 1359.00 TRY + VAT · incl. VAT 1630.80 TRY
- Availability: Made to order
- Wall Switches
- Schneider Electric Wall Switches
- Selection guide: Wall Switch Selection Guide
- Schneider Electric NU322644 Teknik Veri Föyü (PDF)
Schneider Electric NU322644 Yeni Unica, Pull-Cord Push Button 2 module, Cream. Technical specifications of this model: Series: Yeni Unica Color: Cream
| Color | Cream |
|---|---|
| Series | New Unica |
| Product Type | Kablo Buton anahtarı |
| Aesthetic Range | Unica (standart aesthetic) |
| Device Presentation | Kapak plakalı mekanizma |
| Device Application | Kontrol |
| Switch Function | 1 kutuplu 2 yollu |
| Rated Current | 0,416666666666667 |
| Actuator Type | Kablo basmalı düğme |
| Number of Modules | 2 modül |
| Fixing Method | Plug-in |
| Color Tone | Bej (RAL 1013) |
| Technology Type | Elektromekanik |
| Cable Length | 1 m |
| Rated Operational Voltage (Ue) | 250 V |
| Current Type | AC |
| Mains Frequency | 50/60 Hz |
| Connection Terminals | Vidasız terminaller |
| Cable Cross-Section | 2,5 mm² esnek kablo; 2,5 mm² sert kablo |
| Electrical Endurance | 40000 cycles, cos phi = 0,6 |
| Dielectric Strength | 2000 V |
| Insulation Resistance | > 5 MOhm @ 500 V |
| Standards | IEC 60669-1; EMC yönergesi |
| Certifications | EAC; Aenor; NF; CE |
| Operating Ambient Temperature | -5…40 °C |
| Storage Temperature | -5…50 °C |
| Flush Mounting Depth | 21.15 mm |
| Depth | 47 mm |
| Width | 45 mm |
| Height | 45 mm |
| Product Weight | 0.0291 kg |
| IK Impact Protection | IK04 |
| IP Rating | IP20 |
| Environmental Conditions | Aseton; Yağ; UV dirençli; Sıvı Sabun; Pencere temizleme sıvısı; Beyazlatma; Alkol; Petrol |
