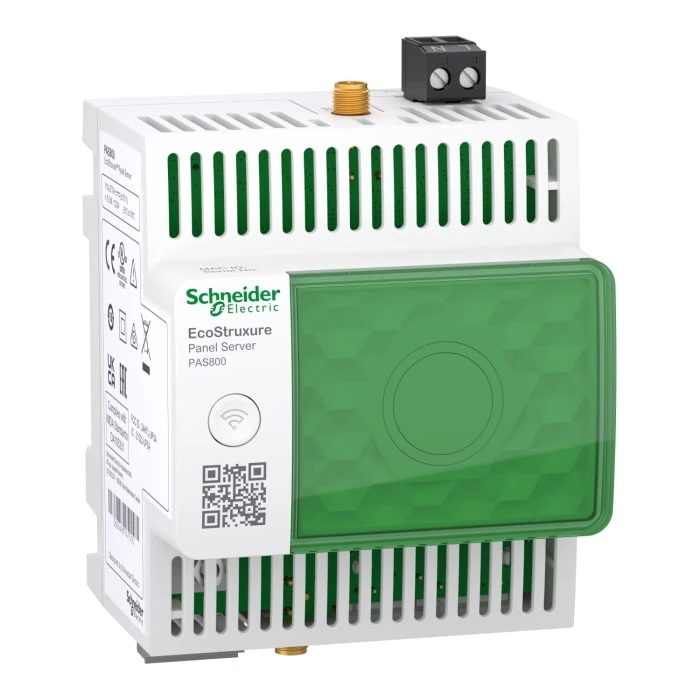

Schneider Electric PAS800 EcoStruxure Panel Server - advanced data logger, energy server, 110-277 VAC/DC
- Brand: Schneider Electric
- SKU: PAS800
- MPN: PAS800
- Price: 63717.26 TRY + VAT · incl. VAT 76460.71 TRY
- Availability: Made to order
- Industrial Gateways
- Selection guide: Industrial Communication Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric PAS800 Teknik Veri Föyü (PDF)
Schneider Electric PAS800 EcoStruxure Panel Server - advanced data logger, energy server, 110-277 VAC/DC.
| Series | EcoStruxure |
|---|---|
| Product Type | Ağ geçidi |
| Device Application | Gateway & energy server; Veri kaydedici |
| Rated Control Supply Voltage (Us) | 110…277 V AC 50/60 Hz; 110…277 V DC |
| Communication Gateway | Kablosuz cihazlara Ethernet TCP/IP; Ethernet/seri |
| Compatible Products | Kablosuz erişim noktası |
| Power Consumption (VA) | 12 VA at 110…277 V |
| Communication Protocol | Modbus TCP; DHCP; HTTPS; NTP/SNTP; IPv4; IPv6; TCP/IP |
| Communication Port Support | 2 RJ45: Ethernet; Vidalı terminal bloğu: RS485 |
| Memory Capacity | HW V2: 64 GB eMMC; HW V1: 32 GB eMMC; HW V1: 512 MB NAND |
| Number of Inputs | 0 |
| Connection Terminals | Güç besleme: vidalı terminal bloğu (üst) 1,5…2,5 mm² kablo(lar); Haberleşme: vidalı terminal bloğu (alt) 0,14…1,5 mm² kablo(lar) |
| Tightening Torque | Güç besleme: 0,6 N.m; Haberleşme: 0,25 N.m |
| Cable Stripping Length | Güç besleme: 7 mm; Haberleşme: 7 mm |
| Connector Type | connector(s)1 x RP-SMA Wi-Fi for antenna alt; connector(s)1 x RP-SMA IEEE 802.15.4 for antenna üst |
| Mounting Type | Takılabilir |
| Mounting Support | DIN rayı |
| Certifications | CE; cULus; CB; RCM; UKCA; FCC; IC; DNV Marine; ANSI RF; IACS E10 |
| Depth | 70.2 mm |
| Height | 93 mm |
| Width | 72 mm |
| Product Weight | 206 g |
| Data Logging | Tarihsel gösterge paneli ve trend oluşturma; 3 yıllık veri günlükleri |
| Application | Kablosuz Schneider Electric aygıtları ekosistemi |
| Web Services | HTTPS sunucusu; SFTP publication (CSV / JSON); HTTPS publication (CSV / JSON); E-posta ile alarm bildirimi |
| Time Synchronization Protocol | NTP; SNTP |
| Relative Humidity | 5…95 % |
| IP Rating | IP40 (ön yüz); IP20 (muhafaza) |
| Operating Ambient Temperature | -25…70 °C |
| Storage Temperature | -40…85 °C |
| Pollution Degree | 2 |
| Operating Altitude | < 2000 m |
