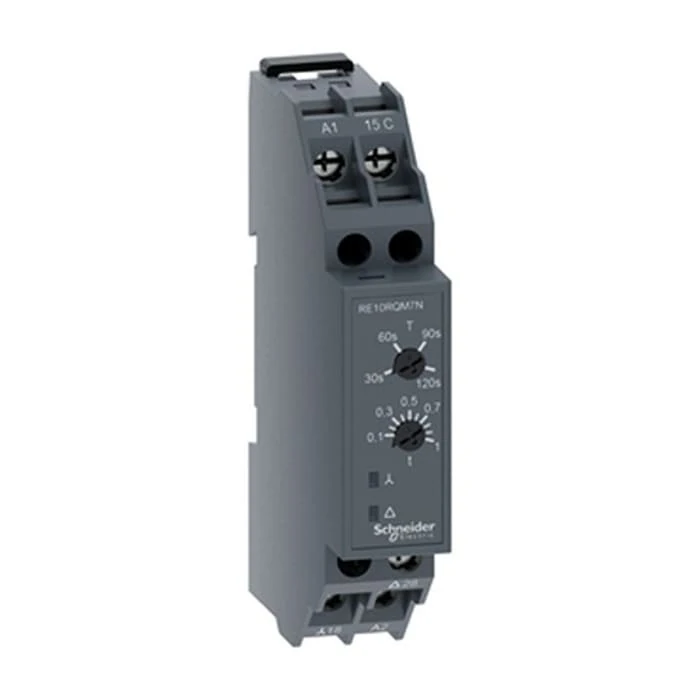

Schneider Electric RE10RQM7N Harmony Timer Relay, Star-Delta Function
- Brand: Schneider Electric
- SKU: RE10RQM7N
- MPN: RE10RQM7N
- Price: 2012.71 TRY + VAT · incl. VAT 2415.25 TRY
- Availability: Made to order
- Star-Delta Timer Relays
- Selection guide: Timer Relays Selection Guide
- Schneider Electric RE10RQM7N Teknik Veri Föyü (PDF)
Schneider Electric RE10RQM7N Harmony Timer Relay, Star-Delta Function. Technical specifications of this model: Series: Harmony
| Series | Harmony |
|---|---|
| Digital Output Type | Röle |
| Product Type | Modüler zamanlama rölesi |
| Time Delay Range | 2…120 s |
| Rated Control Supply Voltage (Us) | 240 V AC 50/60 Hz |
| Rated Output Current | 5 A |
| Contact Arrangement | 2NO |
| Control Type | Selektör anahtarı ön panel |
| Rated Operational Current (Ie) | 5 A 250 V AC-1 (IEC 60947-5-1); 5 A 28 V DC-1 (IEC 60947-5-1); 1,5 A 240 V AC-15 (IEC 60947-5-1); 2 A 24 V DC-13 (IEC 60947-5-1) |
| Connection Terminals | Vida konnektörleri, 2 x 0,5…2 x 1,5 mm² (AWG 22...AWG 16) katı kablo uçlu veya; uçsuz |
| Housing Material | Polikarbonat |
| Power Consumption (VA) | 8 VA @ 240 V |
| Electrical Endurance | 100000 cycles @ 5 A, 250 V için dirençli load |
| Mechanical Endurance | 5000000 cycles |
| Rated Impulse Withstand Voltage (Uimp) | 5 kV için 1,2…50 µs |
| Conformity Markings | CULus; CE; CCC; UKCA |
| Mounting Support | 35 mm simetrik montaj rayı |
| Local Signalling | LED göstergesi kırmızı, sabit için ST (durum) |
| Product Weight | 75 g |
| Height | 58.5 mm |
| Width | 18 mm |
| Depth | 90 mm |
| Dielectric Strength | 2,5 kV için 1 mA/1 dakika @ 50 Hz |
| Standards | IEC 61812-1 |
| Certifications | cULus; CE; CCC; UKCA |
| Storage Temperature | -20…60 °C |
| Operating Ambient Temperature | -10…55 °C |
| IP Rating | IP20 terminaller:; IP40 muhafaza |
| Vibration Resistance | 0.15 mm (f= 10…150 Hz) |
| Relative Humidity | 10…95 % yoğuşmasız |
