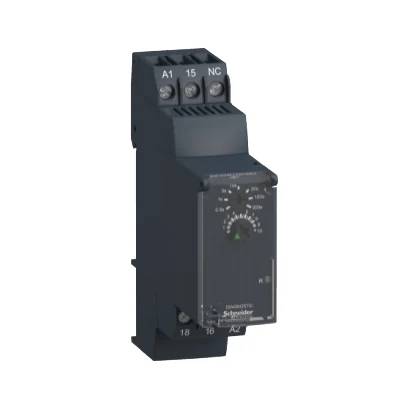

Schneider Electric RE22R1QCMU Star/Delta Time Relay
- Brand: Schneider Electric
- SKU: RE22R1QCMU
- MPN: RE22R1QCMU
- Price: 4725.98 TRY + VAT · incl. VAT 5671.18 TRY
- Availability: In stock
- Star-Delta Timer Relays
- Selection guide: Timer Relays Selection Guide
- Schneider Electric RE22R1QCMU Teknik Veri Föyü (PDF)
Schneider Electric RE22R1QCMU Star/Delta Time Relay.
| Series | Harmony Zamanlayıcı Röleleri |
|---|---|
| Digital Output Type | Röle |
| Product Type | Modüler zamanlama rölesi |
| Rated Output Current | 8 A |
| Contact Arrangement | 1 K/A zamanlı kontak, kadmiyumsuz |
| Time Delay Range | 10…100 s; 3…30 s; 0.1…1 s; 0.3…3 sn; 0.05…0.5 s; 1…10 s; 30…300 s |
| Control Type | Döner düğme; Teşhis butonu |
| Rated Control Supply Voltage (Us) | 24 V DC; 24…240 V AC 50/60 Hz |
| Mains Frequency | 50…60 Hz +/- 5 % |
| Tightening Torque | 0,6…1 N.m (IEC 60947-1) |
| Housing Material | Polikarbonat |
| Insulation Resistance | 100 MOhm @ 500 V DC (IEC 60664-1) |
| Micro-Interruption Immunity | 10 ms |
| Power Consumption (VA) | 35 VA @ 240 V AC |
| Power Consumption (W) | 0,6 W @ 24 V DC |
| Minimum Switching Current | 10 mA @ 5 V DC |
| Maximum Switching Current | 8 A |
| Electrical Endurance | 100000 cycles, 8 A @ 250 V, AC-1; 100000 cycles, 2 A @ 24 V, DC-1 |
| Mechanical Endurance | 10000000 cycles |
| Overvoltage category | III (IEC 60664-1) |
| Safety Reliability Data (MTTFd) | MTTFd = 285,3 yıl; B10d = 270000 |
| Mounting Position | Herhangi bir konum |
| Mounting Support | 35 mm DIN rayı (IEC 60715) |
| Width | 22.5 mm |
| Product Weight | 0.08 kg |
| Dielectric Strength | 2,5 kV için 1 mA/1 dakika @ 50 Hz röle çıkışı ve güç kaynağı arasındaile temel; yalıtım (IEC 61812-1) |
| Standards | UL 508; IEC 61812-1 |
| Certifications | GL; CE; CCC; EAC; UL; CSA; RCM |
| Operating Ambient Temperature | -20…60 °C |
| Storage Temperature | -40…70 °C |
| IP Rating | IP40 muhafaza: (IEC 60529); IP50 ön yüz: (IEC 60529); IP20 terminaller: (IEC 60529) |
| Pollution Degree | 3 (IEC 60664-1) |
| Vibration Resistance | 20 m/s² (f= 10…150 Hz) (IEC 60068-2-6) |
| Shock Resistance | 15 gn çalışmıyor için 11 ms (IEC 60068-2-27); 5 gn çalışma sırasında için 11 ms (IEC 60068-2-27) |
| Relative Humidity | 95 % @ 25…55 °C |
