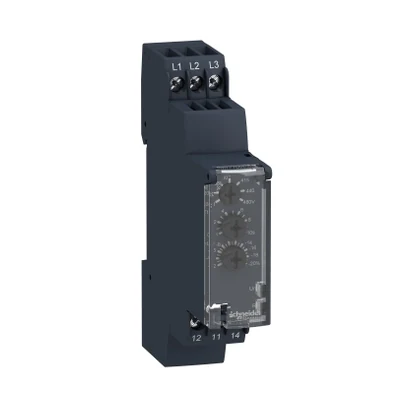

Schneider Electric RM17TA00 Phase loss - phase sequence - phase balance
- Brand: Schneider Electric
- SKU: RM17TA00
- MPN: RM17TA00
- Price: 9896.75 TRY + VAT · incl. VAT 11876.10 TRY
- Availability: In stock
- Phase and Motor Protection Relays
- Schneider Electric Phase and Motor Protection Relays
- Selection guide: Phase and Motor Protection Relays Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric RM17TA00 Teknik Veri Föyü (PDF)
Schneider Electric RM17TA00 Phase loss - phase sequence - phase balance.
| Series | Harmony Kontrol Röleleri |
|---|---|
| Product Type | 3 fazlı kontrol rölesi |
| Control Type | Test butonsuz |
| Contact Arrangement | 1CO |
| Application | 3 fazlı besleme için |
| Rated Control Supply Voltage (Us) | self-powered |
| Supply Voltage Limits | 183…528 V AC |
| Mains Frequency | 50/60 Hz +/- 10 % |
| Power Consumption (VA) | 0…22 VA @ 400 V AC 50 Hz |
| Response Time | < 200 ms (bir hata durumunda) |
| Rated Output Current | 5 A |
| Minimum Switching Current | 10 mA @ 5 V DC |
| Maximum Switching Current | 5 A AC; 5 A DC |
| Electrical Endurance | 100000 cycles |
| Mechanical Endurance | 30000000 cycles |
| Control Circuit Voltage Limits | - % 12 + % 10 Un |
| Phase Failure Sensitivity | 0,7 Un |
| Standards | IEC 60255-1 |
| Certifications | GOST; CSA; GL; C-Tick; UL |
| Conformity Markings | CE |
| Storage Temperature | -40…70 °C |
| Operating Ambient Temperature | -20…50 °C |
| Relative Humidity | 95 % @ 55 °C (IEC 60068-2-30) |
| IP Rating | IP20 (IEC 60529 (terminaller)); IP30 (IEC 60529 (muhafaza)) |
| Pollution Degree | 3 (IEC 60664-1) |
| Overvoltage category | III (IEC 60664-1) |
| Insulation Resistance | > 500 MOhm @ 500 V DC (IEC 60255-5) |
| Rated Insulation Voltage (Ui) | 400 V (IEC 60664-1) |
| Tightening Torque | 0,6…1 N.m (IEC 60947-1) |
| Housing Material | Polikarbonat |
| Local Signalling | LED (yeşil) for güç AÇIK; LED (sarı) for röle AÇIK |
| Mounting Support | 35 mm simetrik DIN rayı (IEC 60715) |
| Height | 90 mm; 88,9 mm |
| Width | 17,5 mm; 17,8 mm |
| Depth | 72 mm; 71,1 mm |
| Product Weight | 0.08 kg |
