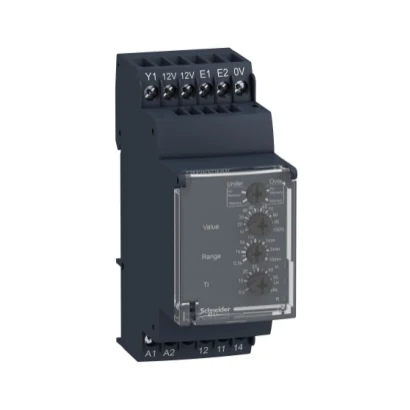

Schneider Electric RM35S0MW Over or Under Speed
- Brand: Schneider Electric
- SKU: RM35S0MW
- MPN: RM35S0MW
- Price: 9007.15 TRY + VAT · incl. VAT 10808.58 TRY
- Availability: Made to order
- Phase and Motor Protection Relays
- Schneider Electric Phase and Motor Protection Relays
- Selection guide: Phase and Motor Protection Relays Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric RM35S0MW Teknik Veri Föyü (PDF)
Schneider Electric RM35S0MW Over or Under Speed.
| Series | Harmony Kontrol Röleleri |
|---|---|
| Product Type | Hız kontrol rölesi |
| Minimum Switching Current | 10 mA @ 5 V DC |
| Power Consumption (VA) | 5 VA AC |
| Utilization Category | AC-12 (IEC 60947-5-1); AC-13 (IEC 60947-5-1); AC-14 (IEC 60947-5-1); AC-15 (IEC 60947-5-1); DC-12 (IEC 60947-5-1); DC-13 (IEC 60947-5-1); DC-14 (IEC 60947-5-1) |
| Supply Voltage Limits | 20,4…264 V AC/DC |
| Power Consumption (W) | 3 W DC |
| Width | 35 mm |
| Contact Material | Kadmiyumsuz |
| Rated Output Current | 5 A |
| Measurement Accuracy | Tam ölçek değerinin +/- %10'u |
| Response Time | 15 msn maks (eşik değerini geçerken) |
| Impulse Duration | >= 5 ms yüksek durum; >= 5 ms düşük durum |
| Conformity Markings | CE : EMC 89/336/EEC; CE : 73/23/EEC |
| Overvoltage category | III (IEC 60664-1) |
| Rated Insulation Voltage (Ui) | 250 V (IEC 60664-1) |
| Mains Frequency | 50/60 Hz +/- 10 % |
| Tightening Torque | 0,6…1 N.m (IEC 60947-1) |
| Housing Material | Polikarbonat |
| Status LED | 1 LED yeşil için güç AÇIK; 1 LED sarı için engelleme; 1 LED sarı için röle (R) |
| Mounting Support | 35 mm simetrik DIN rayı (IEC 60715) |
| Electrical Endurance | 100000 cycles |
| Mechanical Endurance | 30000000 cycles |
| Control Type | Test butonsuz |
| Micro-Interruption Immunity | 50 ms |
| Standards | NF EN 60255-6; IEC 60255-6 |
| Certifications | C-Tick; GOST; UL; GL; CSA |
| Storage Temperature | -40…70 °C |
| Operating Ambient Temperature | -20…50 °C |
| Relative Humidity | 95 % @ 55 °C (IEC 60068-2-30) |
| Vibration Resistance | 0,35 mm (f= 5…57,6 Hz) (IEC 60068-2-6/IEC 60255-21-1); 1 gn (f= 57,6…150 Hz) (IEC 60068-2-6/IEC 60255-21-1) |
| Shock Resistance | 15 gn için 11 ms (IEC 60255-21-1) |
| IP Rating | IP20 (IEC 60529 (terminaller)); IP30 (IEC 60529 (muhafaza)) |
| Pollution Degree | 3 (IEC 60664-1) |
| Surge Immunity | 4 kV |
