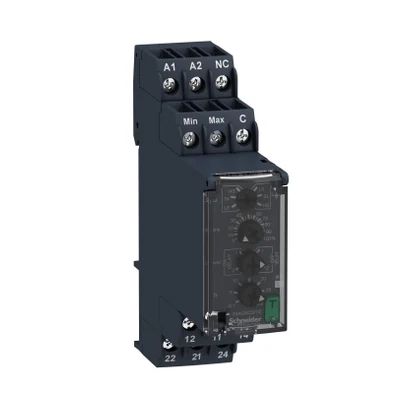

Schneider Electric RM22LA32MR Full or empty (liquid level relay)
- Brand: Schneider Electric
- SKU: RM22LA32MR
- MPN: RM22LA32MR
- Price: 7505.96 TRY + VAT · incl. VAT 9007.15 TRY
- Availability: Made to order
- Liquid Level Relays
- Selection guide: Liquid Level Relays Selection Guide: Technical Criteria & Application Standards
- Schneider Electric RM22LA32MR Teknik Veri Föyü (PDF)
Schneider Electric RM22LA32MR Full or empty (liquid level relay).
| Series | Harmony Kontrol Röleleri |
|---|---|
| Product Type | Seviye kontrol rölesi |
| Minimum Switching Current | 10 mA @ 5 V DC |
| Maximum Switching Current | 8 A AC |
| Utilization Category | AC-15 (IEC 60947-5-1); DC-13 (IEC 60947-5-1); AC-1 (IEC 60947-4-1); DC-1 (IEC 60947-4-1) |
| Contact Arrangement | 2CO |
| Supply Voltage Limits | 20,4…264 V AC/DC |
| Rated Output Current | 8 A |
| Maximum Cable Distance Between Devices | 100 m arasinda prob ve gecikme |
| Overvoltage category | III (IEC 60664-1) |
| Insulation | Besleme ve ölçüm arasında |
| Tightening Torque | 0,6…1 N.m (IEC 60947-1) |
| Housing Material | Polikarbonat |
| Mounting Support | 35 mm DIN rayı (IEC 60715) |
| Mounting Position | Herhangi bir konum |
| Electrical Endurance | 100000 cycles |
| Mechanical Endurance | 10000000 cycles |
| Contact Material | Kadmiyumsuz |
| Safety Reliability Data (MTTFd) | MTTFd = 182,6 yıl; B10d = 170000 |
| Width | 22.5 mm |
| Control Type | Test düğmesi ile |
| Product Weight | 0.11 kg |
| Micro-Interruption Immunity | 100 ms DC; 90 ms AC |
| Standards | IEC 60255-1 |
| Certifications | UL; RCM; CSA; GL; CCC; CE; EAC |
| Storage Temperature | -40…70 °C |
| Relative Humidity | 93…97 % @ 25…55 °C (IEC 60068-2-30) |
| Shock Resistance | 15 gn (süre = 11 ms) için devre dışı (IEC 60068-2-27); 5 gn (süre = 11 ms) için çalışma sırasında (IEC 60068-2-27) |
| IP Rating | IP20 (IEC 60529 (terminaller)); IP40 (IEC 60529 (muhafaza)); IP50 (IEC 60529 (ön panel)) |
| Pollution Degree | 3 (IEC 60664-1) |
