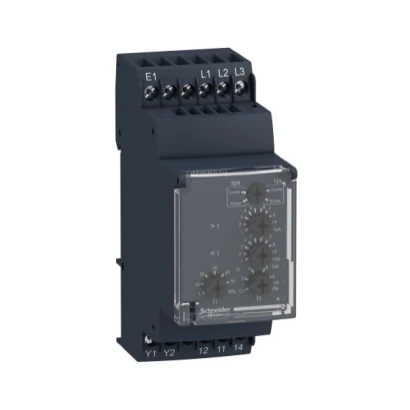

Schneider Electric RM35BA10 Over and Under Current - Phase Loss - Phase Sequence
- Brand: Schneider Electric
- SKU: RM35BA10
- MPN: RM35BA10
- Price: 10341.54 TRY + VAT · incl. VAT 12409.85 TRY
- Availability: Made to order
- Phase and Motor Protection Relays
- Schneider Electric Phase and Motor Protection Relays
- Selection guide: Phase and Motor Protection Relays Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric RM35BA10 Teknik Veri Föyü (PDF)
Schneider Electric RM35BA10 Over and Under Current - Phase Loss - Phase Sequence.
| Series | Harmony Kontrol Röleleri |
|---|---|
| Product Type | Pompa kontrol rölesi |
| Application | 3 fazlı ve monofaze pompa için |
| Minimum Switching Current | 10 mA @ 5 V DC |
| Maximum Switching Current | 5 A AC/DC |
| Power Consumption (VA) | 5 VA AC |
| Utilization Category | AC-12 (IEC 60947-5-1); AC-13 (IEC 60947-5-1); AC-14 (IEC 60947-5-1); AC-15 (IEC 60947-5-1); DC-12 (IEC 60947-5-1); DC-13 (IEC 60947-5-1) |
| Supply Voltage Limits | 183…528 V AC |
| Width | 35 mm |
| Rated Output Current | 5 A |
| Measurement Accuracy | Tam ölçek değerinin +/- %10'u |
| Response Time | < 300 ms (bir hata durumunda) |
| Conformity Markings | CE : EMC 89/336/EEC; CE : 73/23/EEC |
| Overvoltage category | III (IEC 60664-1) |
| Rated Insulation Voltage (Ui) | 400 V (IEC 60664-1) |
| Mains Frequency | 50/60 Hz +/- 10 % |
| Operating Position | Herhangi bir konum |
| Tightening Torque | 0,6…1 N.m (IEC 60947-1) |
| Housing Material | Polikarbonat |
| Status LED | 1 LED yeşil için güç AÇIK; 1 LED sarı için hata; 1 LED sarı için röle AÇIK |
| Mounting Support | 35 mm simetrik DIN rayı (IEC 60715) |
| Electrical Endurance | 100000 cycles |
| Mechanical Endurance | 30000000 cycles |
| Control Type | Test butonsuz |
| Micro-Interruption Immunity | 500 ms |
| Standards | IEC 60255-6 |
| Certifications | C-Tick; CSA; GOST; UL; GL |
| Storage Temperature | -40…70 °C |
| Operating Ambient Temperature | -20…50 °C |
| Relative Humidity | 95 % @ 55 °C (IEC 60068-2-30) |
| Vibration Resistance | 0,35 mm (f= 5…57,6 Hz) (IEC 60068-2-6/IEC 60255-21-1); 1 gn (f= 57,6…150 Hz) (IEC 60068-2-6/IEC 60255-21-1) |
| Shock Resistance | 15 gn için 11 ms (IEC 60255-21-1) |
| IP Rating | IP20 (IEC 60529 (terminaller)); IP30 (IEC 60529 (muhafaza)) |
| Pollution Degree | 3 (IEC 60664-1) |
| Dielectric Strength | 2 kV AC 50 Hz (şok dalgası 4 kV) |
