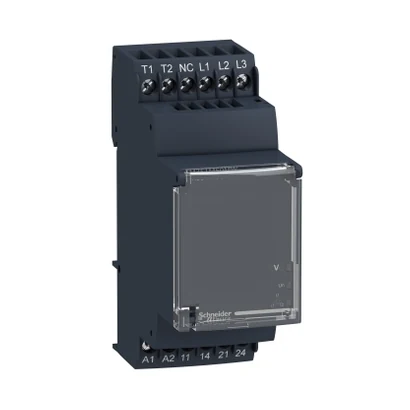

Schneider Electric RM35TM50MW Phase loss - phase sequence - Protection with PTC
- Brand: Schneider Electric
- SKU: RM35TM50MW
- MPN: RM35TM50MW
- Price: 11286.74 TRY + VAT · incl. VAT 13544.09 TRY
- Availability: Made to order
- Phase and Motor Protection Relays
- Schneider Electric Phase and Motor Protection Relays
- Selection guide: Phase and Motor Protection Relays Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric RM35TM50MW Teknik Veri Föyü (PDF)
Schneider Electric RM35TM50MW Phase loss - phase sequence - Protection with PTC.
| Series | Harmony Kontrol Röleleri |
|---|---|
| Product Type | Motor sıcaklık kontrol rölesi |
| Control Type | Test butonsuz |
| Contact Arrangement | 2NO |
| Application | 3 fazlı besleme için |
| Rated Control Supply Voltage (Us) | 24…240 V AC/DC 50/60 Hz non self-powered |
| Supply Voltage Limits | 20,4…264 V AC; 20,4…264 V DC |
| Mains Frequency | 50/60 Hz +/- 10 % |
| Power Consumption (VA) | 0…4 VA @ 24…240 V AC |
| Response Time | > 50 ms (Y1 girişi (kontakY1-T1) ve basmalı düğme) |
| Rated Output Current | 5 A |
| Minimum Switching Current | 10 mA @ 5 V DC |
| Maximum Switching Current | 5 A AC; 5 A DC |
| Electrical Endurance | 100000 cycles |
| Mechanical Endurance | 30000000 cycles |
| Rated Control Circuit Voltage (Uc) | <= 3,6 V 'insıcaklık kontrol devresi (T1-T2 terminalleri açık) |
| Maximum Resistance Between Terminals | 1500 Ohm için Sıcaklık sensörü @ 20 °C |
| Tripping Threshold | 3100 Ohm +/- 10 % için sıcaklık kontrol devresi |
| Standards | IEC 60255-6; IEC 60034-11-2 |
| Certifications | GL; UL; GOST; C-Tick; CSA |
| Conformity Markings | CE |
| Storage Temperature | -40…70 °C |
| Operating Ambient Temperature | -20…50 °C |
| Relative Humidity | 95 % @ 55 °C (IEC 60068-2-30) |
| IP Rating | IP20 (IEC 60529 (terminaller)); IP30 (IEC 60529 (muhafaza)) |
| Pollution Degree | 3 (IEC 60664-1) |
| Overvoltage category | III (IEC 60664-1) |
| Insulation Resistance | > 500 MOhm @ 500 V DC besleme ve röle çıkışı arasında (IEC 60255-5) |
| Rated Insulation Voltage (Ui) | 400 V (IEC 60664-1) |
| Tightening Torque | 0,6…1 N.m (IEC 60947-1) |
| Housing Material | Polikarbonat |
| Local Signalling | LED (yeşil) for güç AÇIK; LED (sarı) for röle fazı (R2); LED (sarı) for rölenin (R1) sıcaklığı |
| Mounting Support | 35 mm simetrik DIN rayı (IEC 60715) |
| Height | 90 mm; 88,9 mm |
| Width | 35 mm; 35,6 mm |
| Depth | 72 mm; 71,1 mm |
| Product Weight | 0,095 kg; 0,10 kg |
