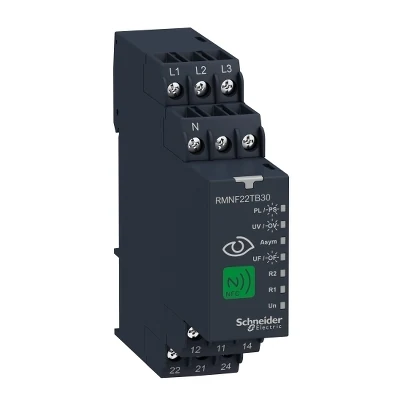

Schneider Electric RMNF22TB30 Multifunction Control Relay, 208-480V AC
- Brand: Schneider Electric
- SKU: RMNF22TB30
- MPN: RMNF22TB30
- Price: 6338.37 TRY + VAT · incl. VAT 7606.04 TRY
- Availability: Made to order
- Phase and Motor Protection Relays
- Schneider Electric Phase and Motor Protection Relays
- Selection guide: Phase and Motor Protection Relays Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric RMNF22TB30 Teknik Veri Föyü (PDF)
Schneider Electric RMNF22TB30 Multifunction Control Relay, 208-480V AC.
| Series | Harmony Kontrol Röleleri |
|---|---|
| Control Type | Tanılama düğmesi olmadan |
| Compatible Products | NFC özellikli mobil aygıt |
| Rated Control Supply Voltage (Us) | 208…480 V AC 50/60 Hz non self-powered; 120…277 V AC 50/60 Hz non self-powered |
| Supply Voltage Limits | 166,4…576 V AC line to line; 96…332,4 V AC line to neutral |
| Power Consumption (VA) | 4 VA @ 480 V AC 60 Hz |
| Micro-Interruption Immunity | 10 ms less than or equal |
| Response Time | <= 300 ms (bir hata durumunda) |
| Rated Output Current | 8 A |
| Minimum Switching Current | 10 mA @ 12 V DC |
| Maximum Switching Current | 8 A AC |
| Electrical Endurance | 100000 cycles |
| Mechanical Endurance | 10000000 cycles |
| Utilization Category | AC-15 250 V AC 3 A (IEC 60947-5-1); DC-13 24 V DC 2 A (IEC 60947-5-1); AC-1 250 V AC 8 A (IEC 60947-4-1); DC-1 24 V DC 5 A (IEC 60947-4-1) |
| Standards | EN/IEC 60255-1 |
| Certifications | CE; UL; CSA; CCC; EAC; RCM; UKCA |
| Conformity Markings | WEEE; China RoHS; ROHS |
| Storage Temperature | -40…70 °C |
| Operating Ambient Temperature | -30…60 °C |
| Relative Humidity | 93…97 % @ 25…55 °C (IEC 60068-2-30); -de 25…55 °C |
| Shock Resistance | 15 gn (süre = 11 ms) için devre dışı (IEC 60068-2-27); 5 gn (süre = 11 ms) için çalışma sırasında (IEC 60068-2-27) |
| IP Rating | IP20 (IEC 60529 (terminaller)); IP40 (IEC 60529 (muhafaza)); IP40 (IEC 60529 (ön panel)) |
| Pollution Degree | 3 (IEC 60664-1); 3 (UL 508) |
| Overvoltage category | III (IEC 60664-1); III (UL 508) |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV (IEC 60664-1) |
| Insulation Resistance | > 100 MOhm @ 500 V DC (IEC 60255-27) |
| Rated Insulation Voltage (Ui) | 400 V (IEC 60664-1) |
| Tightening Torque | 0,6…1 N.m (IEC 60947-1); 0,6…1,006 N.m |
| Housing Material | Polikarbonat |
| Mounting Support | 35 mm simetrik DIN rayı (IEC 60715) |
| Height | 90 mm; 88,9 mm |
| Width | 22,5 mm; 22,9 mm |
| Depth | 99 mm; 99,06 mm |
| Product Weight | 0,125 kg; 0,13 kg |
